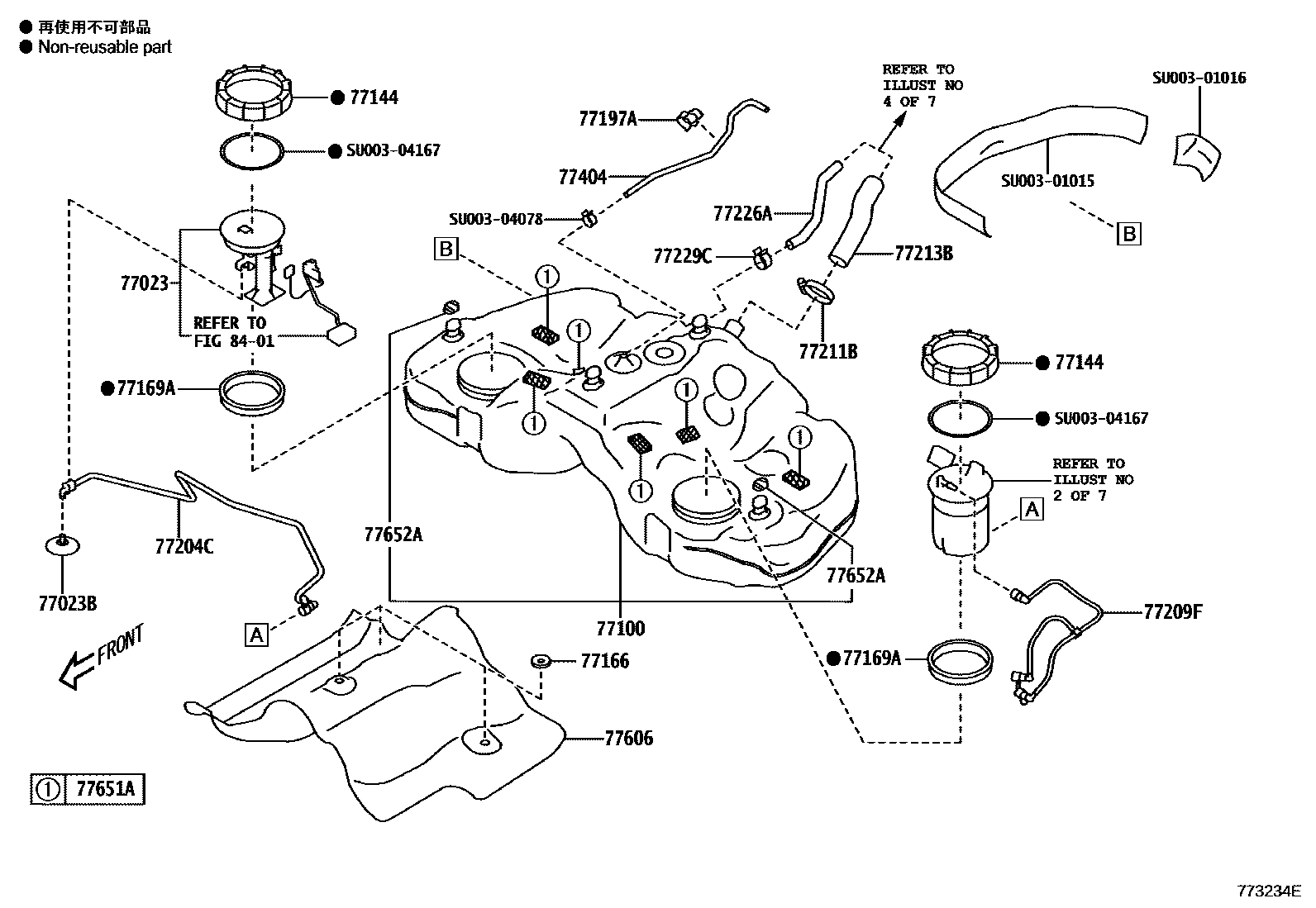

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL SUCTION TUBE(FUEL PUMP) 0003 1FUEL TANK BAND & PROTECTOR 0004 1CHARCOAL CANISTER & FILLER PI0005 1FUEL(BRAKE) PIPE 0006 1FUEL LID CONTROL CABLE & LEVE0007 1FUEL LID CONTROL CABLE & LEVE0008 1FUEL FILLER OPENING LID

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

mainSU00301105iZN6..B201204-201607

77023BFILTER SUB-ASSY, FUEL SUCTION TUBE, NO.2

mainSU00301081iZN6..D201204-201607

77100TANK ASSY, FUEL

mainSU00301014iZN6201204-201207

subSU003-04543¥68,900

mainSU00304543iZN6..D201207-201607

77144RETAINER, FUEL PUMP GAUGE

mainSU00301023iZN6201204-201607

77166CUSHION, FUEL TANK PROTECTOR

mainSU00301042iZN6201204-201607

77169AGASKET, FUEL SUCTION TUBE SET

mainSU00301019iZN6..B201204-201606

subSU003-07284¥3,010

mainSU00307284iZN6201606-201607

77197ACLAMP, EVAPORATION VENT TUBE, NO.2

mainSU00301036iZN6201204-201607

77204CTUBE SUB-ASSY, FUEL TANK MAIN, NO.2

mainSU00301084iZN6201204-201607

77209FTUBE SUB-ASSY, FUEL TANK MAIN

mainSU00301085iZN6201204-201607

77211BCLAMP (FOR FUEL FILLER PIPE)

mainSU00301030iZN6201204-201607

77213BHOSE, FUEL TANK TO FILLER PIPE

mainSU00301101iZN6201204-201605

subSU003-07291¥3,450

mainSU00307291iZN6201606-201607

77226ATUBE, FUEL TANK BREATHER, NO.6

mainSU00301099iZN6..D201204-201605

subSU003-07289¥1,280

mainSU00307289iZN6201606-201607

77229CCLAMP, BREATHER TUBE

mainSU00301024iZN6201204-201607

subSU003-01025¥160

77404HOSE SUB-ASSY, FUEL TANK VENT

mainSU00301100iZN6..D201204-201605

subSU003-07290¥1,710

mainSU00307290iZN6201606-201607

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

mainSU00301070iZN6201204-201607

77651ACUSHION, FUEL TANK, NO.1

mainSU00301047iZN6201204-201607

77652ACUSHION, FUEL TANK, NO.2

mainSU00301045iZN6201204-201607

8401

SU00301015

mainSU003-01015¥2,150

SU00301016

mainSU003-01016¥680

SU00304078

mainSU003-04078¥40

SU00304167

mainSU003-04167¥800

22 parts on this diagram · 8 diagrams in section
