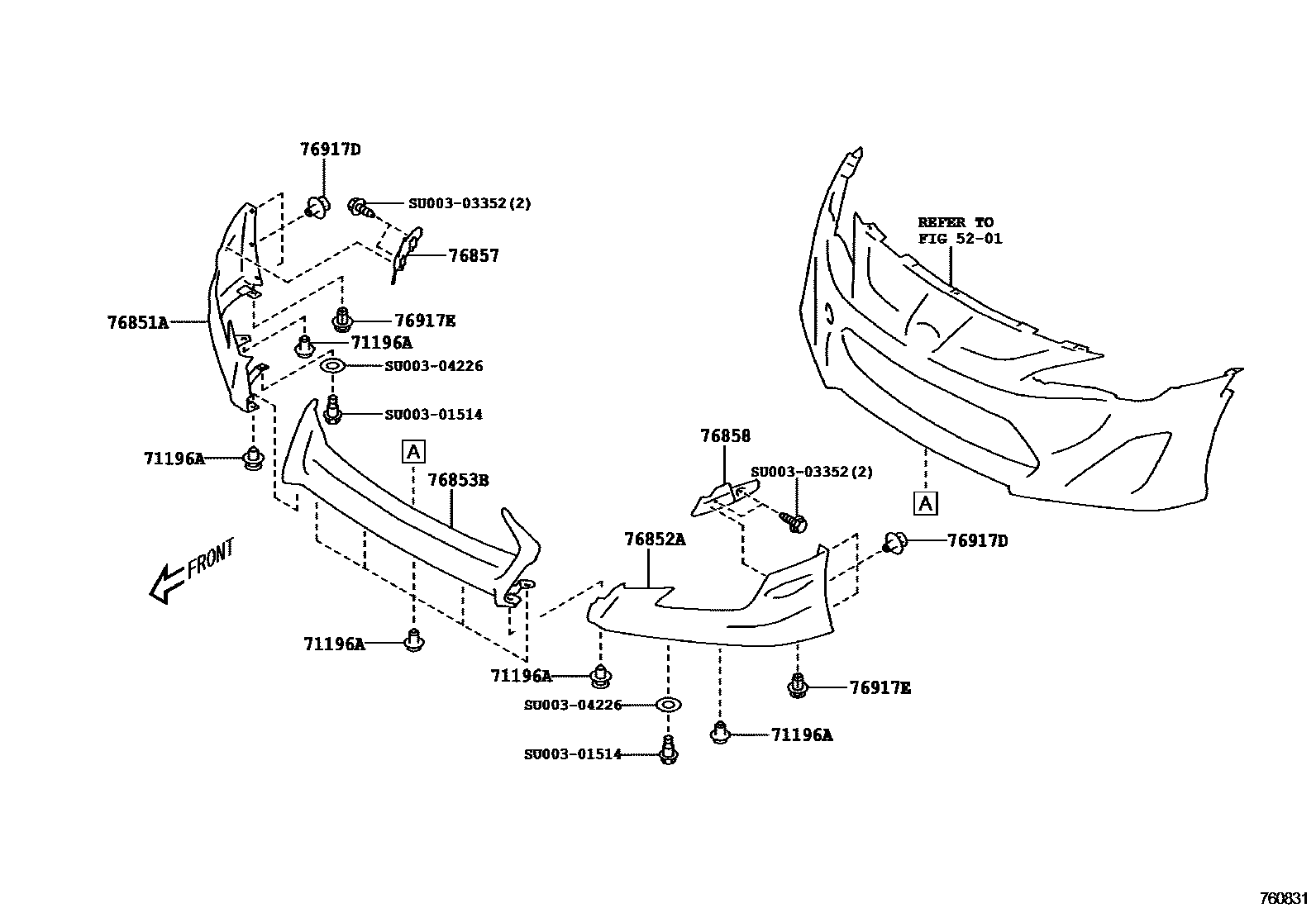

MUDGUARD & SPOILER

0001 1FRONT BUMPER SPOILER 0002 1REAR BUMPER SPOILER 0003 1REAR SPOILER (SMALL TYPE) 0005 1REAR SPOILER (LARGE TYPE)

5201

71196CLIP(FOR REAR SPOILER)

mainSU00302982iZN6..EUR..B201204-201607

71196ACLIP

mainSU00302984iZN6..(BASE,HI)..EUR201204-201607

76851ACOVER, FRONT SPOILER, RH

mainSU00304184iZN6..(BASE,HI)..EUR201204-201503

GALAXY BLUE SILICA,E8H

subSU003-06342

mainSU00304185iZN6..(BASE,HI)..EUR201204-201511

61K

subSU003-06343

mainSU00304186iZN6..(BASE,HI)..EUR..B201204-201511

H8R

subSU003-06346

mainSU00304188iZN6..(BASE,HI)..EUR201204-201503

LIGHTNING RED,C7P

subSU003-06347

mainSU00304189iZN6..(BASE,HI)..EUR201204-201404

STERLING SILVER M,D6S

subSU003-06348

mainSU00304190iZN6..(BASE,HI)..EUR201204-201511

D4S

subSU003-06351

mainSU00304191iZN6..(BASE,HI)..EUR..B201204-201404

SATIN WHITE PEARL,37J

subSU003-06352

mainSU00305296iZN6..(BASE,HI)..EUR201405-201511

ICE SILVER METALLIC,G1U

subSU003-06349

mainSU00305297iZN6..(BASE,HI)..EUR201405-201511

CRYSTAL WHITE PEARL,K1X

subSU003-06353

mainSU00306059iZN6..(BASE,HI)..EUR201504-201511

LAPIS BLUE PEARL,K3X

subSU003-06344

mainSU00306060iZN6..(BASE,HI)..EUR201504-201511

PURE RED,M7Y

subSU003-06350

mainSU00306343iZN6..(BASE,HI)..EUR201511-201607

DARK GRAY METALLIC,61K

mainSU00306344iZN6..(BASE,HI)..EUR201511-201607

LAPIS BLUE PEARL,K3X

mainSU00306346iZN6..(BASE,HI)..EUR201511-201607

ORANGE METALLIC,H8R

mainSU00306349iZN6..(BASE,HI)..EUR201511-201607

ICE SILVER METALLIC,G1U

mainSU00306350iZN6..(BASE,HI)..EUR201511-201607

PURE RED,M7Y

mainSU00306351iZN6..(BASE,HI)..EUR201511-201607

CRYSTAL BLACK SILICA,D4S

mainSU00306353iZN6..(BASE,HI)..EUR201511-201607

CRYSTAL WHITE PEARL,K1X

76852ACOVER, FRONT SPOILER, LH

mainSU00304192iZN6..(BASE,HI)..EUR201204-201503

GALAXY BLUE SILICA,E8H

subSU003-06354

mainSU00304193iZN6..(BASE,HI)..EUR201204-201511

61K

subSU003-06355

mainSU00304194iZN6..(BASE,HI)..EUR201204-201511

H8R

subSU003-06358

mainSU00304196iZN6..(BASE,HI)..EUR201204-201503

LIGHTNING RED,C7P

subSU003-06359

mainSU00304197iZN6..(BASE,HI)..EUR..B201204-201404

STERLING SILVER M,D6S

subSU003-06360

mainSU00304198iZN6..(BASE,HI)..EUR201204-201511

D4S

subSU003-06363

mainSU00304199iZN6..(BASE,HI)..EUR..B201204-201404

SATIN WHITE PEARL,37J

subSU003-06364

mainSU00305298iZN6..(BASE,HI)..EUR201405-201511

ICE SILVER METALLIC,G1U

mainSU00305299iZN6..(BASE,HI)..EUR201405-201511

CRYSTAL WHITE PEARL,K1X

subSU003-06365

mainSU00306061iZN6..(BASE,HI)..EUR201504-201511

LAPIS BLUE PEARL,K3X

subSU003-06356

mainSU00306062iZN6..(BASE,HI)..EUR201504-201511

PURE RED,M7Y

subSU003-06362

mainSU00306355iZN6..(BASE,HI)..EUR201511-201607

DARK GRAY METALLIC,61K

mainSU00306356iZN6..(BASE,HI)..EUR201511-201607

LAPIS BLUE PEARL,K3X

mainSU00306358iZN6..(BASE,HI)..EUR201511-201607

ORANGE METALLIC,H8R

mainSU00306361iZN6..(BASE,HI)..EUR201511-201607

ICE SILVER METALLIC,G1U

mainSU00306362iZN6..(BASE,HI)..EUR201511-201607

PURE RED,M7Y

mainSU00306363iZN6..(BASE,HI)..EUR201511-201607

CRYSTAL BLACK SILICA,D4S

mainSU00306365iZN6..(BASE,HI)..EUR201511-201607

CRYSTAL WHITE PEARL,K1X

76853BCOVER, FRONT SPOILER, CENTER

mainSU00304176iZN6..(BASE,HI)..EUR201204-201503

GALAXY BLUE SILICA,E8H

mainSU00304177iZN6..(BASE,HI)..EUR201204-201607

61K

mainSU00304178iZN6..(BASE,HI)..EUR..B201204-201607

H8R

mainSU00304180iZN6..(BASE,HI)..EUR201204-201503

C7P

mainSU00304181iZN6..(BASE,HI)..EUR201204-201404

D6S

mainSU00304182iZN6..(BASE,HI)..EUR201204-201607

D4S

mainSU00304183iZN6..(BASE,HI)..EUR201204-201404

37J

mainSU00305294iZN6..(BASE,HI)..EUR201405-201607

ICE SILVER METALLIC,G1U

mainSU00305295iZN6..(BASE,HI)..EUR201405-201607

CRYSTAL WHITE PEARL,K1X

mainSU00306057iZN6..(BASE,HI)..EUR201504-201607

LAPIS BLUE PEARL,K3X

mainSU00306058iZN6..(BASE,HI)..EUR201504-201607

PURE RED,M7Y

76857RETAINER, FRONT SPOILER SIDE, RH

mainSU00304200iZN6..(BASE,HI)..EUR..B201204-201607

76858RETAINER, FRONT SPOILER SIDE, LH

mainSU00304201iZN6..(BASE,HI)..EUR201204-201607

76917DCLIP

mainSU00302964iZN6..(BASE,HI)..EUR201204-201607

76917ECLIP

mainSU00302989iZN6..(BASE,HI)..EUR201204-201607

SU00301514

mainSU003-01514

SU00303352

mainSU003-03352

SU00304226

mainSU003-04226

13 parts on this diagram · 4 diagrams in section
