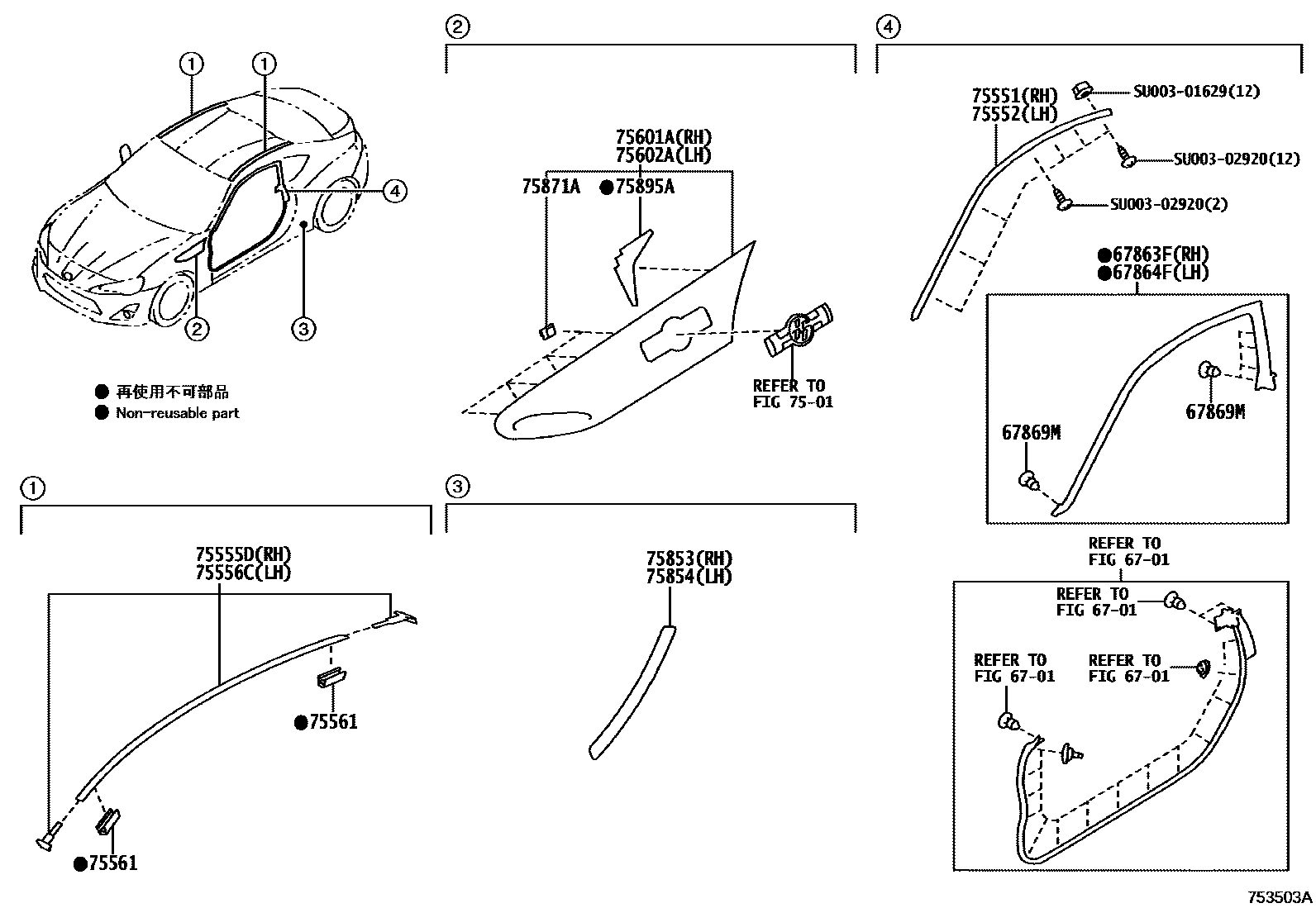

SIDE MOULDING
6701
67863FWEATHERSTRIP, FRONT DOOR, NO.2 RH
67864FWEATHERSTRIP, FRONT DOOR, NO.2 LH
67869MCLIP, DOOR WEATHERSTRIP
7501
75551MOULDING, ROOF DRIP SIDE FINISH, RH
NO PAINT REQ
75552MOULDING, ROOF DRIP SIDE FINISH, LH
NO PAINT REQ
75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH
75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH
75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1
75601AMOULDING SUB-ASSY, FRONT FENDER, RH
MATERIAL COLOR,37J,61K,C7P,D4S,D6S,E8H,H8R
MATERIAL COLOR,61K,C7P,D4S,E8H,G1U,H8R,K1X
MATERIAL COLOR,61K,C2Z,C7P,D4S,E8H,G1U,H8R,K1X
MATERIAL COLOR,61K,D4S,G1U,H8R,K1X,K3X,M7Y
75602AMOULDING SUB-ASSY, FRONT FENDER, LH
MATERIAL COLOR,37J,61K,C7P,D4S,D6S,E8H,H8R
MATERIAL COLOR,61K,C7P,D4S,E8H,G1U,H8R,K1X
MATERIAL COLOR,61K,C2Z,C7P,D4S,E8H,G1U,H8R,K1X
MATERIAL COLOR,61K,D4S,G1U,H8R,K1X,K3X,M7Y
75853PROTECTOR, REAR FENDER, RH
75854PROTECTOR, REAR FENDER, LH
75871ACLIP (FOR FRONT FENDER MOULDING NO.1)
75895ATAPE, MOULDING, NO.1
SU00301629
SU00302920
18 parts on this diagram · 2 diagrams in section
