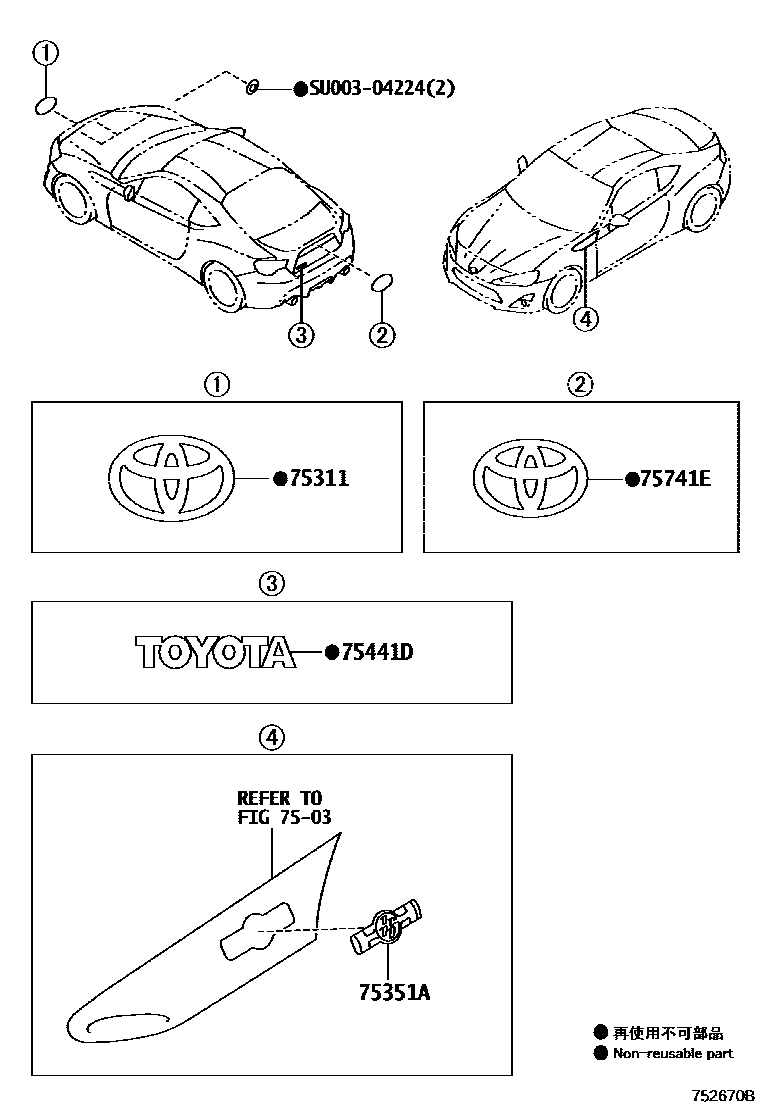

EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

7503

75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)

mainSU00303216iZN6..LHD..(BASE,HI)..EUR..B201204-201607

DESTINATION CODE=KS

mainSU00303216iZN6..LHD..(BASE,HI)..EUR..B201204-201607

DESTINATION CODE=K4

mainSU00303216iZN6..LHD..(BASE,HI)..EUR..B201204-201607

DESTINATION CODE=EC

mainSU00303216iZN6..LHD..(BASE,HI)..EUR..B201204-201404

DESTINATION CODE=ED

mainSU00303216iZN6..LHD..(BASE,HI)..EUR..B201204-201607

DESTINATION CODE=EP

mainSU00303216iZN6..LHD..(BASE,HI)..EUR..B201204-201607

DESTINATION CODE=E1

mainSU00303216iZN6..LHD..(BASE,HI)..EUR..B201204-201607

DESTINATION CODE=E2

mainSU00303216iZN6..LHD..(BASE,HI)..EUR..B201204-201607

DESTINATION CODE=E6

mainSU00303216iZN6..LHD..(BASE,HI)..EUR..B201204-201607

DESTINATION CODE=KF

mainSU00303216iZN6..LHD..(BASE,HI)..EUR..B201204-201404

DESTINATION CODE=ES

mainSU00303216iZN6..LHD..(BASE,HI)..EUR..B201307-201607

DESTINATION CODE=EB

mainSU00303216iZN6..LHD..(BASE,HI)..EUR..B201204-201607

DESTINATION CODE=E3

mainSU00303218iZN6..LHD..(BASE,HI)201206-201207

75351AEMBLEM, FRONT FENDER

mainSU00303125iZN6..LHD..BASE..EUR201307-201607

DESTINATION CODE=EB

mainSU00303125iZN6..LHD..BASE..EUR201204-201607

DESTINATION CODE=KF

mainSU00303125iZN6..LOW,LOWC;ZN6..RHD..BASE;ZN6..BASE..CHI201204-201607

DESTINATION CODE=E3

mainSU00303125iZN6..LOW,LOWC;ZN6..RHD..BASE;ZN6..BASE..CHI201204-201607

DESTINATION CODE=KS

mainSU00303125iZN6..LOW,LOWC;ZN6..RHD..BASE;ZN6..BASE..CHI201204-201607

DESTINATION CODE=K4

mainSU00303125iZN6..LOW,LOWC;ZN6..RHD..BASE;ZN6..BASE..CHI201204-201607

DESTINATION CODE=EC

mainSU00303125iZN6..LOW,LOWC;ZN6..RHD..BASE;ZN6..BASE..CHI201204-201404

DESTINATION CODE=ED

mainSU00303125iZN6..LOW,LOWC;ZN6..RHD..BASE;ZN6..BASE..CHI201204-201607

DESTINATION CODE=EP

mainSU00303125iZN6..LOW,LOWC;ZN6..RHD..BASE;ZN6..BASE..CHI201204-201607

DESTINATION CODE=E1

mainSU00303125iZN6..LOW,LOWC;ZN6..RHD..BASE;ZN6..BASE..CHI201204-201607

DESTINATION CODE=E2

mainSU00303125iZN6..LOW,LOWC;ZN6..RHD..BASE;ZN6..BASE..CHI201204-201607

DESTINATION CODE=E6

mainSU00303125iZN6..LOW,LOWC;ZN6..RHD..BASE;ZN6..BASE..CHI201204-201404

DESTINATION CODE=ES

mainSU00303126iZN6..LHD..HI..EUR..B201307-201607

DESTINATION CODE=EB

mainSU00303126iZN6..RHD..HI;ZN6..HI..CHI201204-201607

DESTINATION CODE=E3

mainSU00303126iZN6..RHD..HI;ZN6..HI..CHI201204-201607

DESTINATION CODE=KS

mainSU00303126iZN6..RHD..HI;ZN6..HI..CHI201204-201607

DESTINATION CODE=K4

mainSU00303126iZN6..RHD..HI;ZN6..HI..CHI201204-201607

DESTINATION CODE=EC

mainSU00303126iZN6..RHD..HI;ZN6..HI..CHI201204-201404

DESTINATION CODE=ED

mainSU00303126iZN6..RHD..HI;ZN6..HI..CHI201204-201607

DESTINATION CODE=EP

mainSU00303126iZN6..RHD..HI;ZN6..HI..CHI201204-201607

DESTINATION CODE=E1

mainSU00303126iZN6..RHD..HI;ZN6..HI..CHI201204-201607

DESTINATION CODE=E2

mainSU00303126iZN6..RHD..HI;ZN6..HI..CHI201204-201607

DESTINATION CODE=E6

mainSU00303126iZN6..RHD..HI;ZN6..HI..CHI201204-201607

DESTINATION CODE=KF

mainSU00303126iZN6..RHD..HI;ZN6..HI..CHI201204-201404

DESTINATION CODE=ES

mainSU00303127iZN6..LHD..BASE201206-201207

mainSU00303128iZN6..LHD..HI201206-201207

75441DPLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.1

mainSU00304072iZN6..CHI;ZN6..LOW,LOWC;ZN6..RHD..(BASE,HI)201204-201607

TOYOTA,DESTINATION CODE=E3

mainSU00304072iZN6..CHI;ZN6..LOW,LOWC;ZN6..RHD..(BASE,HI)201204-201607

TOYOTA,DESTINATION CODE=KS

mainSU00304072iZN6..CHI;ZN6..LOW,LOWC;ZN6..RHD..(BASE,HI)201204-201607

TOYOTA,DESTINATION CODE=K4

mainSU00304072iZN6..CHI;ZN6..LOW,LOWC;ZN6..RHD..(BASE,HI)201204-201607

TOYOTA,DESTINATION CODE=EC

mainSU00304072iZN6..CHI;ZN6..LOW,LOWC;ZN6..RHD..(BASE,HI)201204-201404

TOYOTA,DESTINATION CODE=ED

mainSU00304072iZN6..CHI;ZN6..LOW,LOWC;ZN6..RHD..(BASE,HI)201204-201607

TOYOTA,DESTINATION CODE=EP

mainSU00304072iZN6..CHI;ZN6..LOW,LOWC;ZN6..RHD..(BASE,HI)201204-201607

TOYOTA,DESTINATION CODE=E1

mainSU00304072iZN6..CHI;ZN6..LOW,LOWC;ZN6..RHD..(BASE,HI)201204-201607

TOYOTA,DESTINATION CODE=E2

mainSU00304072iZN6..CHI;ZN6..LOW,LOWC;ZN6..RHD..(BASE,HI)201204-201607

TOYOTA,DESTINATION CODE=E6

mainSU00304072iZN6..CHI;ZN6..LOW,LOWC;ZN6..RHD..(BASE,HI)201204-201607

TOYOTA,DESTINATION CODE=KF

mainSU00304072iZN6..CHI;ZN6..LOW,LOWC;ZN6..RHD..(BASE,HI)201204-201404

TOYOTA,DESTINATION CODE=ES

mainSU00304072iZN6..LHD..(BASE,HI)..EUR201204-201607

TOYOTA

mainSU00304072iZN6..CHI..B;ZN6..(LOW,LOWC)..B;ZN6..RHD..(BASE,HI)..B201307-201607

TOYOTA,DESTINATION CODE=EB

mainSU00304074iZN6..LHD..(BASE,HI)201206-201207

TOYOTA

75741EEMBLEM, SYMBOL

mainSU00303219iZN6..CHI;ZN6..LOW,LOWC;ZN6..RHD..(BASE,HI)201204-201607

TOYOTA

mainSU00303219iZN6..CHI;ZN6..LOW,LOWC;ZN6..RHD..(BASE,HI)201204-201607

TOYOTA,DESTINATION CODE=E3

mainSU00303219iZN6..CHI;ZN6..LOW,LOWC;ZN6..RHD..(BASE,HI)201204-201607

TOYOTA,DESTINATION CODE=KS

mainSU00303219iZN6..CHI;ZN6..LOW,LOWC;ZN6..RHD..(BASE,HI)201204-201607

TOYOTA,DESTINATION CODE=K4

mainSU00303219iZN6..CHI;ZN6..LOW,LOWC;ZN6..RHD..(BASE,HI)201204-201607

TOYOTA,DESTINATION CODE=EC

mainSU00303219iZN6..CHI;ZN6..LOW,LOWC;ZN6..RHD..(BASE,HI)201204-201404

TOYOTA,DESTINATION CODE=ED

mainSU00303219iZN6..CHI;ZN6..LOW,LOWC;ZN6..RHD..(BASE,HI)201204-201607

TOYOTA,DESTINATION CODE=EP

mainSU00303219iZN6..CHI;ZN6..LOW,LOWC;ZN6..RHD..(BASE,HI)201204-201607

TOYOTA,DESTINATION CODE=E1

mainSU00303219iZN6..CHI;ZN6..LOW,LOWC;ZN6..RHD..(BASE,HI)201204-201607

TOYOTA,DESTINATION CODE=E2

mainSU00303219iZN6..CHI;ZN6..LOW,LOWC;ZN6..RHD..(BASE,HI)201204-201607

TOYOTA,DESTINATION CODE=E6

mainSU00303219iZN6..CHI;ZN6..LOW,LOWC;ZN6..RHD..(BASE,HI)201204-201607

TOYOTA,DESTINATION CODE=KF

mainSU00303219iZN6..CHI;ZN6..LOW,LOWC;ZN6..RHD..(BASE,HI)201204-201404

TOYOTA,DESTINATION CODE=ES

mainSU00303219iZN6..CHI..B;ZN6..(LOW,LOWC)..B;ZN6..RHD..(BASE,HI)..B201307-201607

TOYOTA,DESTINATION CODE=EB

mainSU00303221iZN6..LHD..(BASE,HI)201206-201207

TOYOTA

SU00304224

mainSU003-04224

6 parts on this diagram · 1 diagram in section
