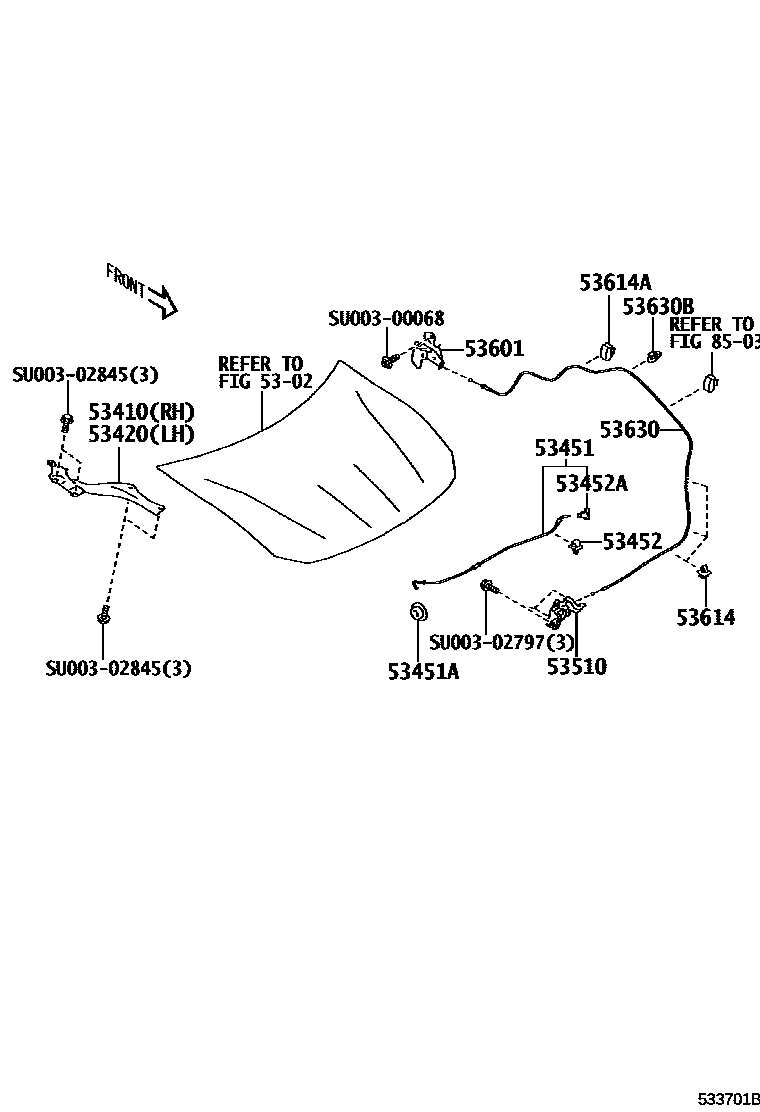

HOOD LOCK & HINGE

0001 1 0002 1

5302

53410HINGE ASSY, HOOD, RH

mainSU00301399iZN6..B201204-201607

53420HINGE ASSY, HOOD, LH

mainSU00301400iZN6201204-201607

53451ROD, HOOD SUPPORT

mainSU00301395iZN6201204-201607

53451AGROMMET(FOR HOOD SUPPORT ROD)

mainSU00303012iZN6201204-201607

53452HOLDER, HOOD STAY

mainSU00303010iZN6201204-201607

53452AHOLDER, HOOD STAY

mainSU00307454iZN6201204-201607

53510LOCK ASSY, HOOD

mainSU00301401iZN6..RHD201204-201607

subSU003-06313

mainSU00301402iZN6..LHD201204-201607

subSU003-06314

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

mainSU00301409iZN6..RHD201204-201607

mainSU00301410iZN6..LHD201204-201607

53614CLAMP, HOOD LOCK CONTROL CABLE

mainSU00301413iZN6201204-201607

53614ACLAMP, HOOD LOCK CONTROL CABLE, NO.1

mainSU00303006iZN6201204-201607

53630CABLE ASSY, HOOD LOCK CONTROL

mainSU00301403iZN6201204-201607

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

mainSU00302691iZN6201204-201607

8503

SU00300068

mainSU003-00068

SU00302797

mainSU003-02797

SU00302845

mainSU003-02845

17 parts on this diagram · 2 diagrams in section
