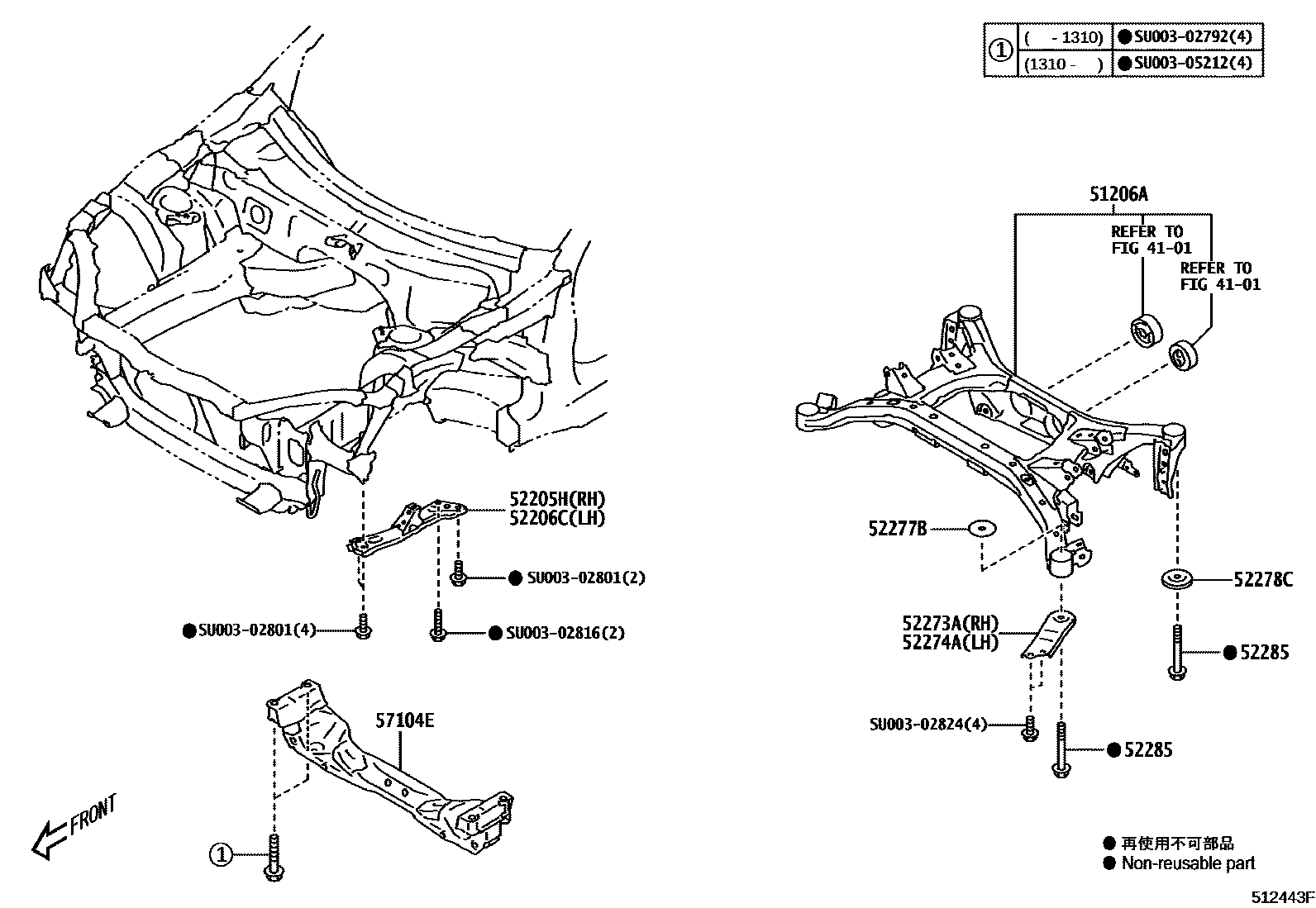

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

4101

51206AMEMBER SUB-ASSY, REAR SUSPENSION

mainSU00300349iZN6201204-201607

subSU003-10927

52205HCUSHION SUB-ASSY, BODY MOUNTING, REAR RH

mainSU00301224iZN6201204-201607

subSU003-07499

52206CCUSHION SUB-ASSY, BODY MOUNTING, REAR LH

mainSU00301225iZN6201204-201607

subSU003-07500

52273ASTOPPER, REAR SUSPENSION MEMBER, LOWER RH

mainSU00300350iZN6201204-201607

52274ASTOPPER, REAR SUSPENSION MEMBER, LOWER LH

mainSU00300351iZN6201204-201607

52277BSTOPPER, REAR SUSPENSION MEMBER, REAR UPPER

mainSU00300353iZN6201204-201607

52278CSTOPPER, REAR SUSPENSION MEMBER, REAR LOWER

mainSU00300352iZN6201204-201607

52285BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.1

mainSU00302807iZN6201204-201607

subSU003-09441

57104EMEMBER SUB-ASSY, FRONT CROSS

mainSU00300348iZN6201204-201607

SU00302792

mainSU003-02792

SU00302801

mainSU003-02801

SU00302816

mainSU003-02816

SU00302824

mainSU003-02824

SU00305212

mainSU003-05212

15 parts on this diagram · 2 diagrams in section
