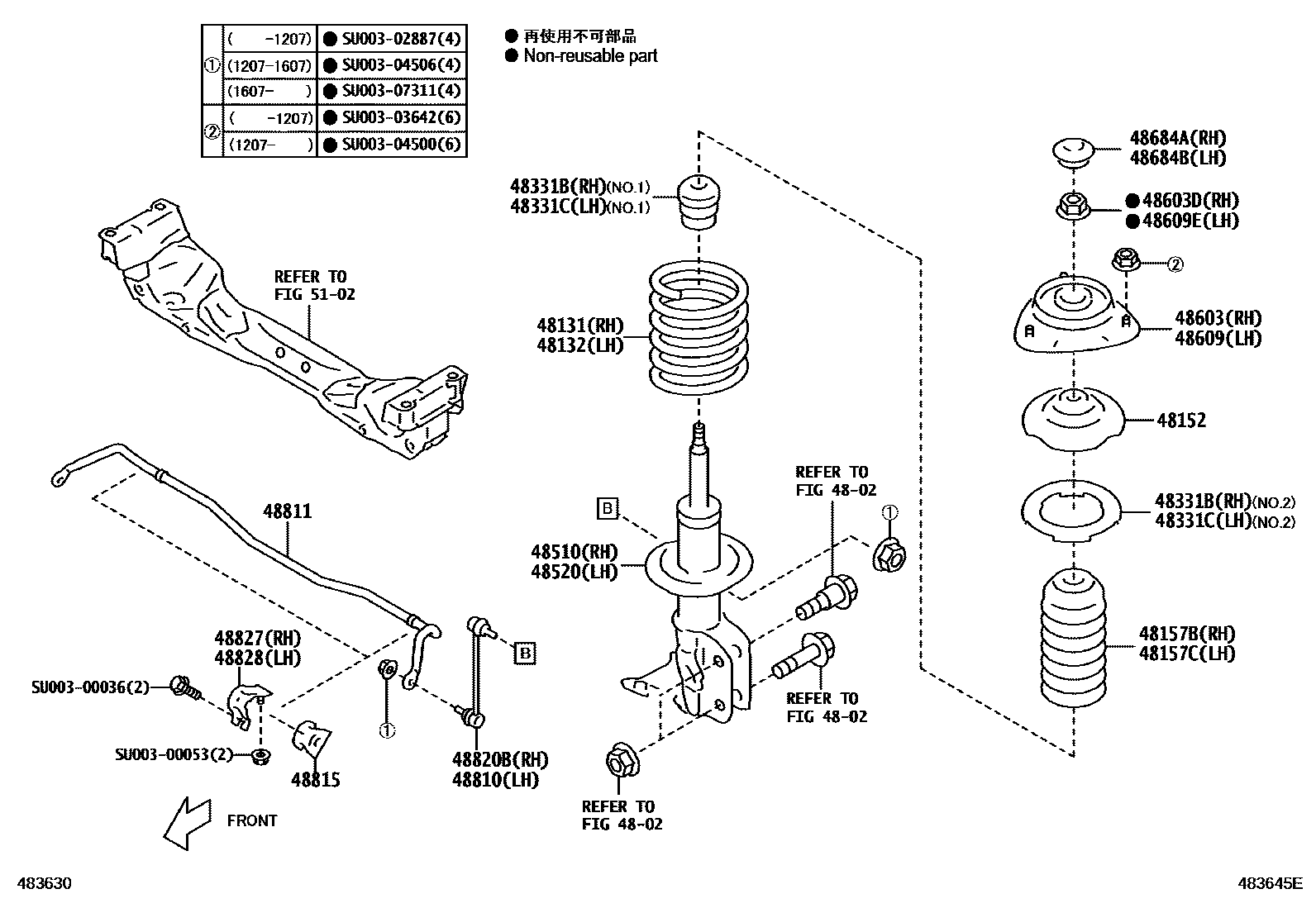

FRONT SPRING & SHOCK ABSORBER

4802

48131SPRING, FRONT COIL, RH

mainSU00304143iZN6..(LOW,LOWC)..B201204-201503

mainSU00304144iZN6..6F..(BASE,HI,LIMD)201204-201607

mainSU00304145iZN6..6FC..D201204-201607

48132SPRING, FRONT COIL, LH

mainSU00304143iZN6..LOW,LOWC,RCG201204-201503

mainSU00304144iZN6..6F..(BASE,HI,LIMD)201204-201607

mainSU00304145iZN6..6FC201204-201607

48152SEAT, FRONT SPRING

mainSU00300376iZN6201204-201607

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

mainSU00300375iZN6..B201204-201607

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

mainSU00300375iZN6..B201204-201607

48331BBUMPER, FRONT SPRING, RH

mainSU00300374iZN6..B201204-201607

NO.1

mainSU00300377iZN6..D201204-201607

NO.2

48331CBUMPER, FRONT SPRING, LH

mainSU00300374iZN6201204-201607

NO.1

mainSU00300377iZN6201204-201607

NO.2

48510ABSORBER ASSY, SHOCK, FRONT RH

mainSU00300371iZN6201204-201404

MARK 20310-CA000

subSU003-10819

mainSU00305256iZN6..D201405-201607

MARK 20310-CA100

subSU003-10821

48520ABSORBER ASSY, SHOCK, FRONT LH

mainSU00300372iZN6201204-201404

MARK 20310-CA010

subSU003-10820

mainSU00305257iZN6201405-201607

MARK 20310-CA110

subSU003-10822

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

mainSU00300373iZN6201204-201407

subSU003-05801

mainSU00305801iZN6201407-201607

subSU003-09509

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

mainSU00302868iZN6201204-201607

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

mainSU00300373iZN6201204-201407

subSU003-05801

mainSU00305801iZN6201407-201607

subSU003-09509

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

mainSU00302868iZN6201204-201607

48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH

mainSU00300378iZN6201204-201607

48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH

mainSU00300378iZN6201204-201607

48810LINK ASSY, FRONT STABILIZER, LH

mainSU00300394iZN6201204-201607

48811BAR, STABILIZER, FRONT

mainSU00300391iZN6201204-201607

48815BUSH, FRONT STABILIZER BAR, NO.1

mainSU00300392iZN6201204-201607

48820BLINK ASSY, FRONT STABILIZER, RH

mainSU00300394iZN6201204-201607

48827BRACKET, FRONT STABILIZER, NO.2 RH

mainSU00300393iZN6201204-201607

48828BRACKET, FRONT STABILIZER, NO.2 LH

mainSU00300393iZN6201204-201607

5102

SU00300036

mainSU003-00036

SU00300053

mainSU003-00053

SU00302887

mainSU003-02887

SU00303642

mainSU003-03642

SU00304500

mainSU003-04500

SU00304506

mainSU003-04506

SU00307311

mainSU003-07311

30 parts on this diagram · 1 diagram in section
