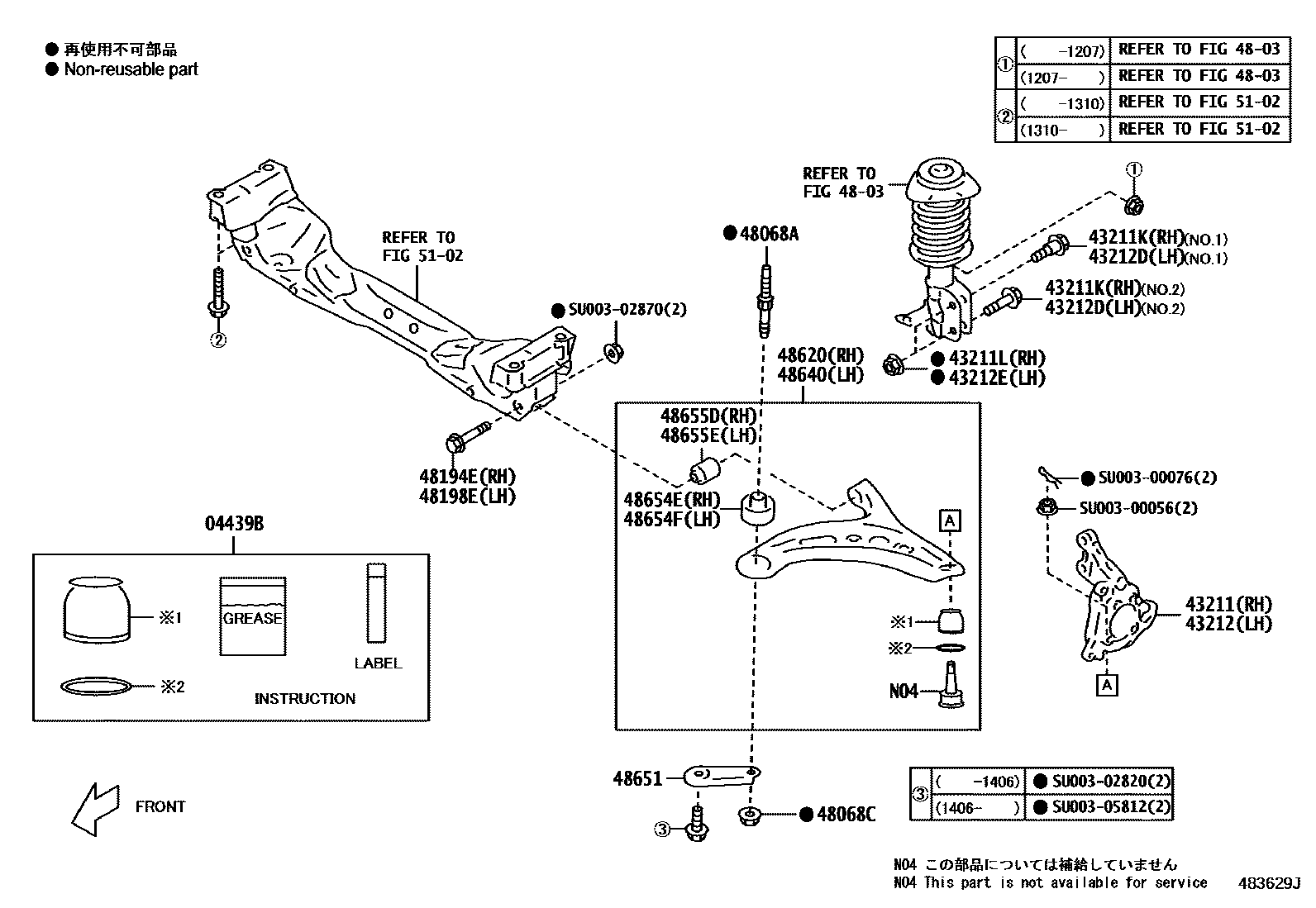

FRONT AXLE ARM & STEERING KNUCKLE
04439BCOVER KIT, FRONT SUSPENSION LOWER ARM BALL JOINT DUST
43211KNUCKLE, STEERING, RH
subSU003-07497
43211KBOLT (FOR STEERING KNUCKLE RH)
NO.1
NO.2
43211LNUT (FOR STEERING KNUCKLE RH)
43212KNUCKLE, STEERING, LH
subSU003-07498
43212DBOLT (FOR STEERING KNUCKLE LH)
NO.1
NO.2
43212ENUT (FOR STEERING KNUCKLE LH)
4803
48068ABOLT(FOR FRONT SUSPENSION LOWER ARM)
48068CNUT(FOR FRONT SUSPENSION LOWER ARM)
48194ECAM, FRONT SUSPENSION CAMBER ADJUST, NO.3 RH
48198ECAM, FRONT SUSPENSION CAMBER ADJUST, NO.3 LH
48620ARM ASSY, FRONT SUSPENSION, LOWER RH
subSU003-08016
48640ARM ASSY, FRONT SUSPENSION LOWER, LH
subSU003-08017
48651PLATE, LOWER ARM SUPPORT
48654EBUSH, FRONT LOWER ARM, NO.1 RH
48654FBUSH, FRONT LOWER ARM, NO.1 LH
48655DBUSH, FRONT LOWER ARM, NO.2 RH
48655EBUSH, FRONT LOWER ARM, NO.2 LH
5102
SU00300056
mainSU003-00056
SU00300076
mainSU003-00076
SU00302820
mainSU003-02820
SU00302870
mainSU003-02870
SU00305812
mainSU003-05812
25 parts on this diagram · 1 diagram in section
