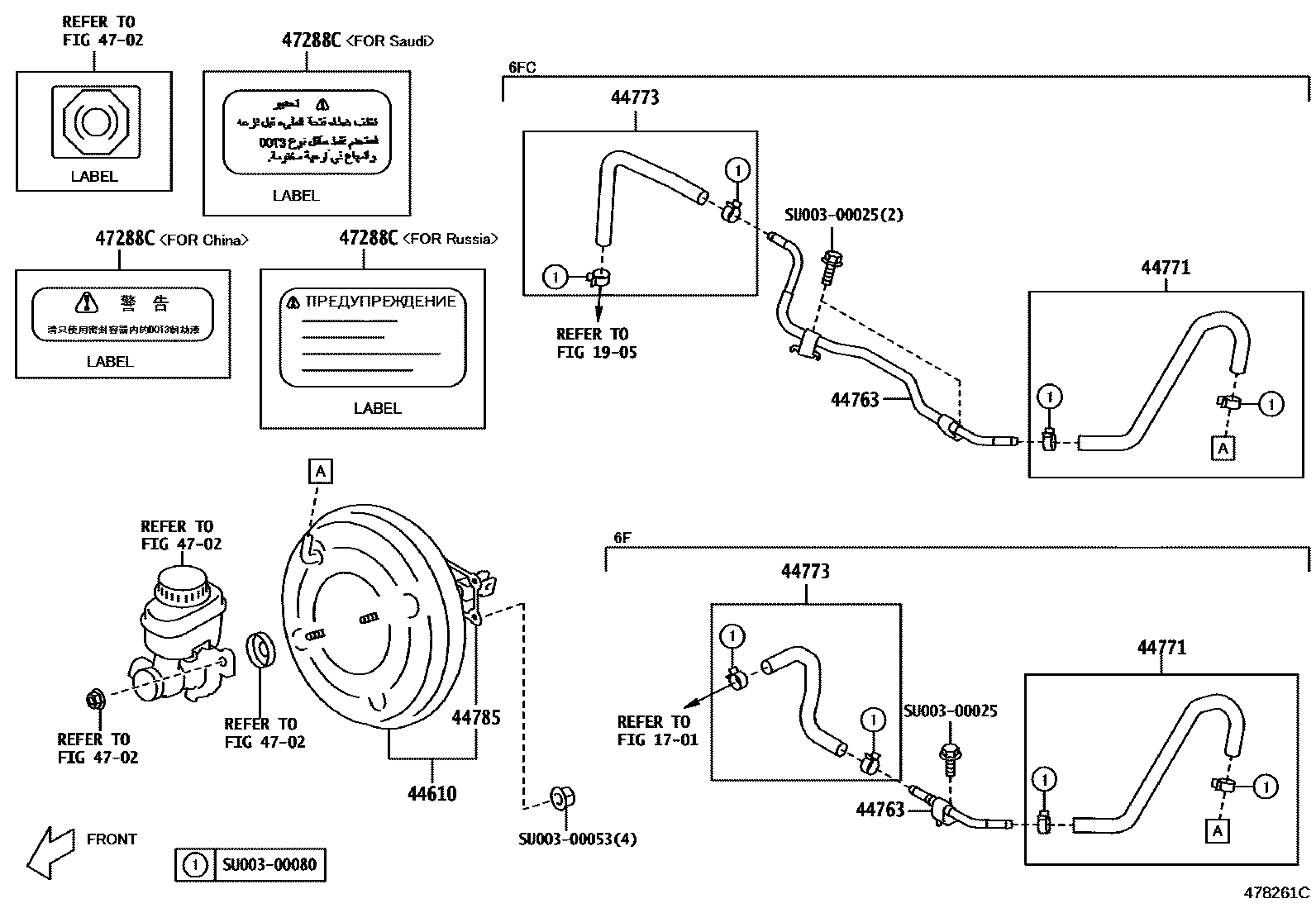

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

1701

1905

44610BOOSTER ASSY, BRAKE

mainSU00300589iZN6..RHD201204-201607

mainSU00300590iZN6..LHD..D201204-201607

44763TUBE, BOOSTER VACUUM

mainSU00300560iZN6..LHD..6FC201204-201607

mainSU00300561iZN6..RHD..6F..B201204-201607

mainSU00300562iZN6..LHD..6F..D201204-201607

44771HOSE, VACUUM TUBE CONNECTOR

mainSU00300554iZN6..RHD..6FC201204-201607

mainSU00300557iZN6..RHD..6F201204-201607

mainSU00300567iZN6..LHD201204-201306

subSU003-04752¥1,530

mainSU00304752iZN6..LHD201306-201607

44773HOSE, VACUUM, NO.2

mainSU00300558iZN6..RHD..6F..B201204-201607

subSU003-06243¥690

mainSU00300568iZN6..LHD..6FC201204-201306

subSU003-04753¥1,440

mainSU00300569iZN6..LHD..6F201204-201306

subSU003-04754¥1,530

mainSU00304753iZN6..LHD..6FC..B201306-201607

mainSU00304754iZN6..LHD..6F..B201306-201607

subSU003-06244¥1,530

44785GASKET, BRAKE BOOSTER

mainSU00304545iZN6201204-201607

4702

47288CLABEL, FLUID MARK

mainSU00300564iZN6..CHI201204-201607

SU00300025

mainSU003-00025¥30

SU00300053

mainSU003-00053¥30

SU00300080

mainSU003-00080¥90

12 parts on this diagram · 2 diagrams in section
