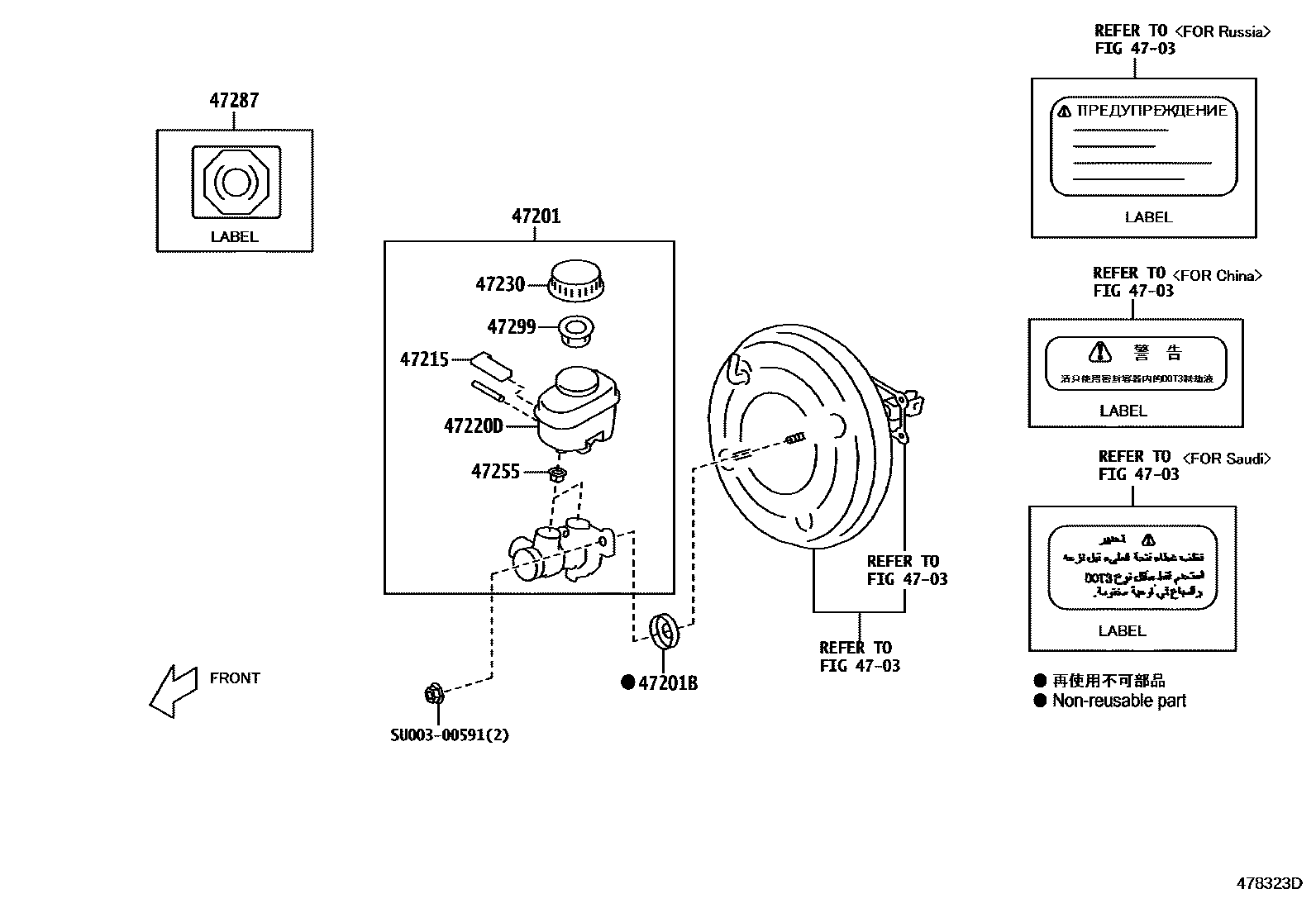

BRAKE MASTER CYLINDER

0001 1 0002 1

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

mainSU00304241iZN6..RHD201204-201607

subSU003-10513

mainSU00304242iZN6..LHD..D201204-201607

subSU003-10514

47201BRING, O(FOR BRAKE MASTER CYLINDER)

mainSU00300593iZN6201204-201607

subSU003-12052

47215INDICATOR, BRAKE FLUID

mainSU00304246iZN6201204-201607

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

mainSU00304288iZN6201204-201607

subSU003-10515

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

mainSU00304244iZN6201204-201607

subSU003-10494

47255GROMMET, MASTER CYLINDER RESERVOIR

mainSU00304245iZN6201204-201607

47287LABEL, BRAKE FLUID INFORMATION

mainSU00300565iZN6201204-201607

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

mainSU00304243iZN6201204-201607

SU00300591

mainSU003-00591

10 parts on this diagram · 2 diagrams in section
