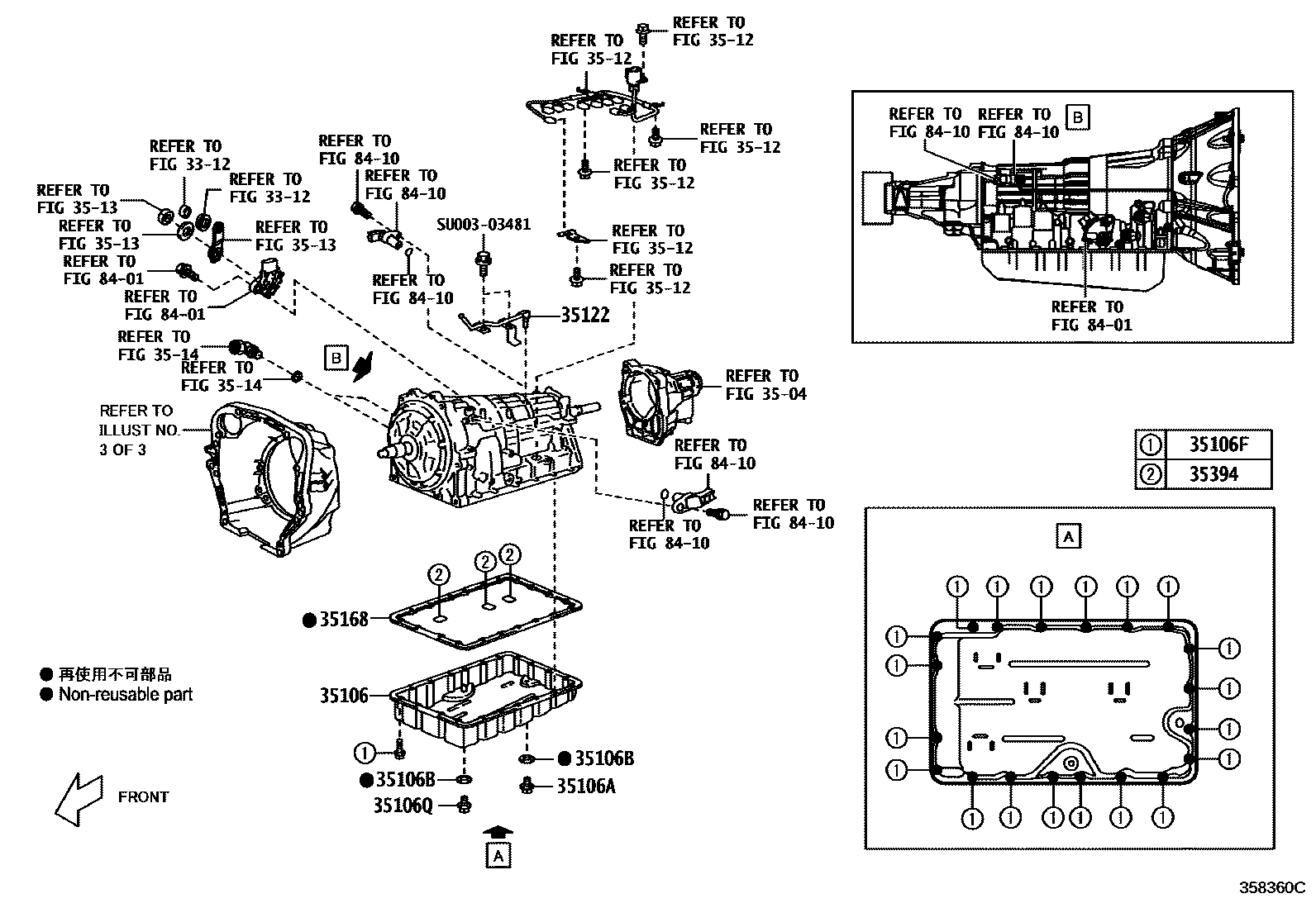

TRANSMISSION CASE & OIL PAN (ATM)

0001 1TX6A 0002 1TX6A 0003 1TX6A

3312

3504

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

mainSU00303667iZN6..6FC201204-201607

35106APLUG SUB-ASSY, DRAIN (ATM)

mainSU00303613iZN6..6FC201204-201607

35106BGASKET, DRAIN PLUG (ATM)

mainSU00303621iZN6..6FC201204-201607

35106FBOLT (FOR AUTOMATIC TRANSMISSION OIL PAN)

mainSU00303475iZN6..6FC201204-201607

35106QPLUG (FOR AUTOMATIC TRANSMISSION OIL PAN)

mainSU00303616iZN6..6FC201204-201607

3512

35122TUBE, BREATHER (FOR AUTOMATIC TRANSAXLE)

mainSU00303850iZN6..6FC201204-201607

3513

3514

35168GASKET, AUTOMATIC TRANSMISSION OIL PAN

mainSU00303624iZN6..6FC201204-201607

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

mainSU00303678iZN6..6FC201204-201607

8401

8410

SU00303481

mainSU003-03481

16 parts on this diagram · 3 diagrams in section
