TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

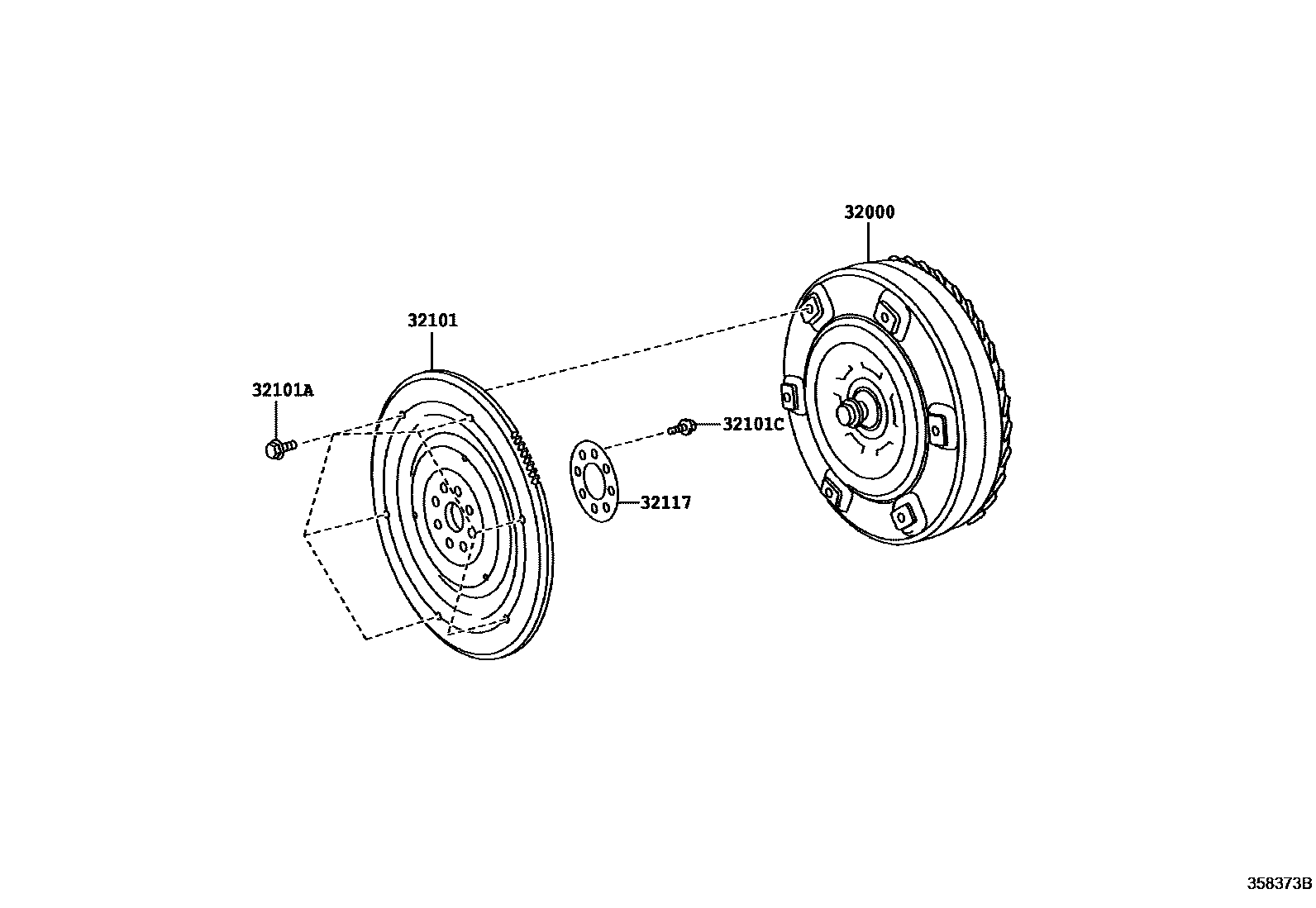

Parts diagram

32000CONVERTER ASSY, TORQUE

mainSU00303651i201204-201607

32101GEAR SUB-ASSY, DRIVE PLATE & RING

mainSU00300175i201204-201607

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

mainSU00302133i201204-201607

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

mainSU00302143i201204-201607

32117SPACER, DRIVE PLATE, REAR

mainSU00300176i201204-201607

5 parts on this diagram · 2 diagrams in section
