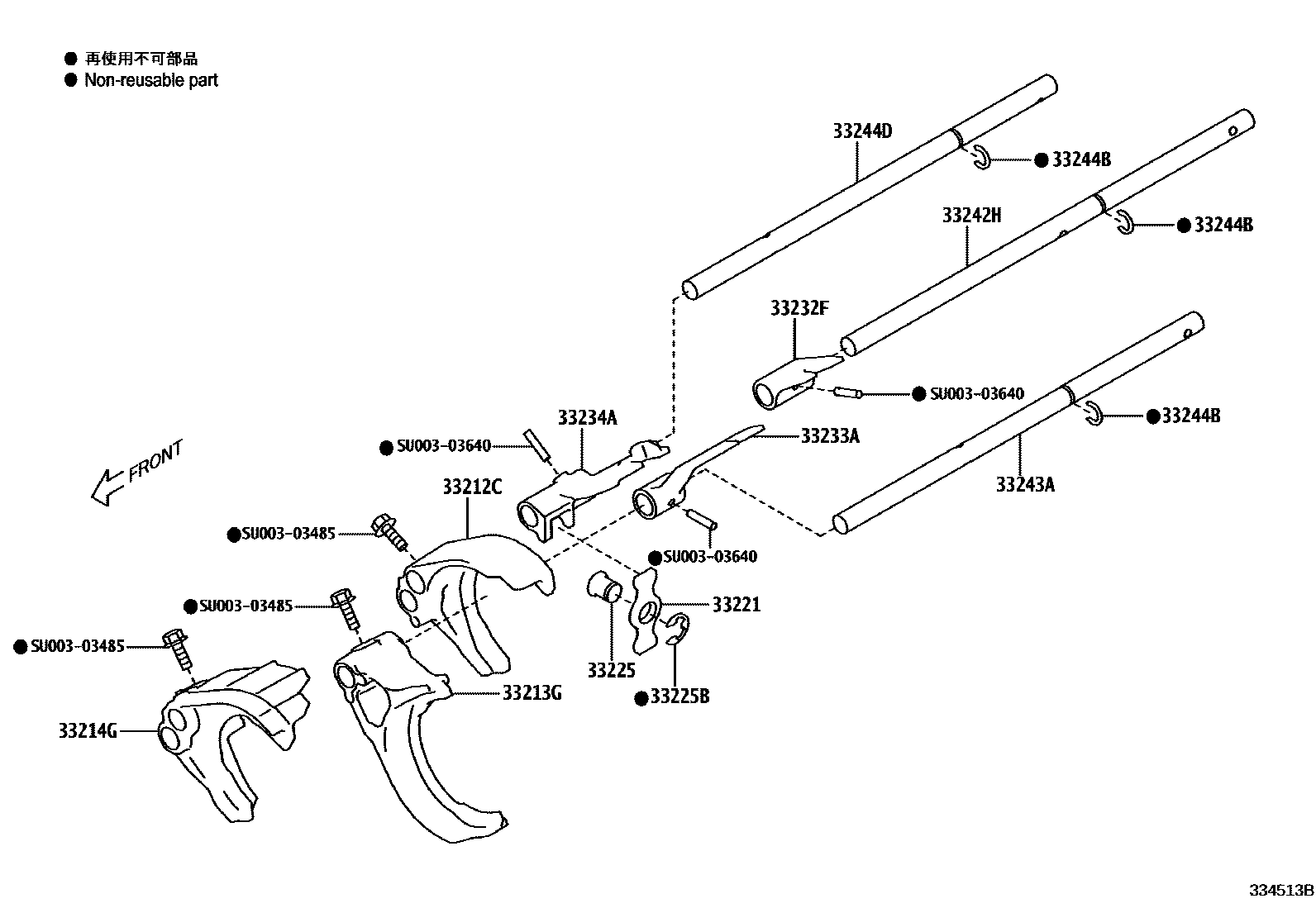

GEAR SHIFT FORK & LEVER SHAFT (MTM)
33212CFORK, GEAR SHIFT, NO.1
33213GFORK, GEAR SHIFT, NO.2
33214GFORK, GEAR SHIFT, NO.3
33221ARM, REVERSE SHIFT
33225SHOE, SHIFT ARM
33225BRING, E(FOR SHIFT ARM SHOE)
33232FHEAD, GEAR SHIFT, NO.1
33233AHEAD, GEAR SHIFT, NO.2
33234AHEAD, GEAR SHIFT, NO.3
33242SHAFT, GEAR SHIFT FORK, NO.1
33242HSHAFT, GEAR SHIFT FORK, NO.1
33243ASHAFT, GEAR SHIFT FORK, NO.2
33244BRING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
33244DSHAFT, GEAR SHIFT FORK, NO.3
SU00303485
mainSU003-03485
SU00303640
mainSU003-03640
16 parts on this diagram · 4 diagrams in section
