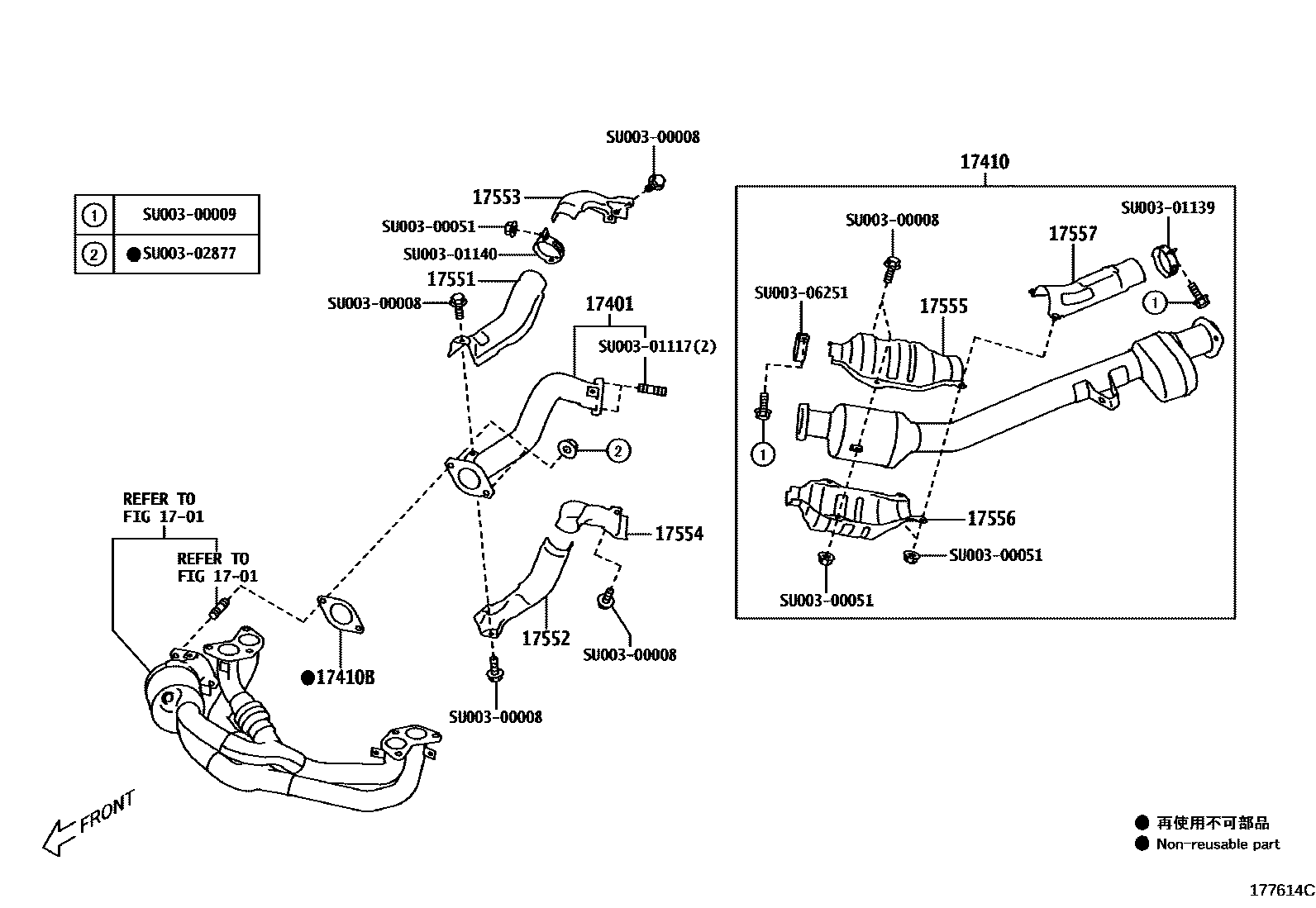

EXHAUST PIPE

0001 1 0002 1 0004 1EXCEPT DESTINATION CODE=KS 0006 1DESTINATION CODE=KS

1701

17401PIPE SUB-ASSY, EXHAUST, FRONT

mainSU00301137iFA20..ZN6201204-201607

17410PIPE ASSY, EXHAUST, FRONT

mainSU00301132iFA20..ZN6..EUR201204-201509

*114=SUBARU/RCA41/Y

subSU003-06249

mainSU00301133iFA20..ZN6..CHI201204-201509

subSU003-06250

mainSU00306249iFA20..ZN6..EUR201510-201607

*114=SUBARU/RCA41/Y

mainSU00306250iFA20..ZN6..CHI201510-201607

17410BGASKET, EXHAUST PIPE

mainSU00301110iFA20..ZN6201204-201607

subSU003-10928

17551INSULATOR, EXHAUST PIPE HEAT, NO.1

mainSU00301165iFA20..ZN6..D201204-201607

17552INSULATOR, EXHAUST PIPE HEAT, NO.2

mainSU00301167iFA20..ZN6201204-201607

17553INSULATOR, EXHAUST PIPE HEAT, NO.3

mainSU00301169iFA20..ZN6..D201204-201607

17554INSULATOR, EXHAUST PIPE HEAT, FRONT

mainSU00301171iFA20..ZN6..D201204-201607

17555INSULATOR, EXHAUST PIPE HEAT, NO.5

mainSU00301142iFA20..ZN6..D201204-201607

17556INSULATOR, EXHAUST PIPE HEAT, NO.6

mainSU00301144iFA20..ZN6..EUR201204-201607

mainSU00304468iFA20..ZN6..CHI..D201204-201607

17557INSULATOR, EXHAUST PIPE HEAT, NO.7

mainSU00301146iFA20..ZN6..D201204-201509

mainSU00306253iFA20..ZN6201510-201607

SU00300008

mainSU003-00008

SU00300009

mainSU003-00009

SU00300051

mainSU003-00051

SU00301117

mainSU003-01117

SU00301139

mainSU003-01139

SU00301140

mainSU003-01140

SU00302877

mainSU003-02877

SU00306251

mainSU003-06251

19 parts on this diagram · 4 diagrams in section
