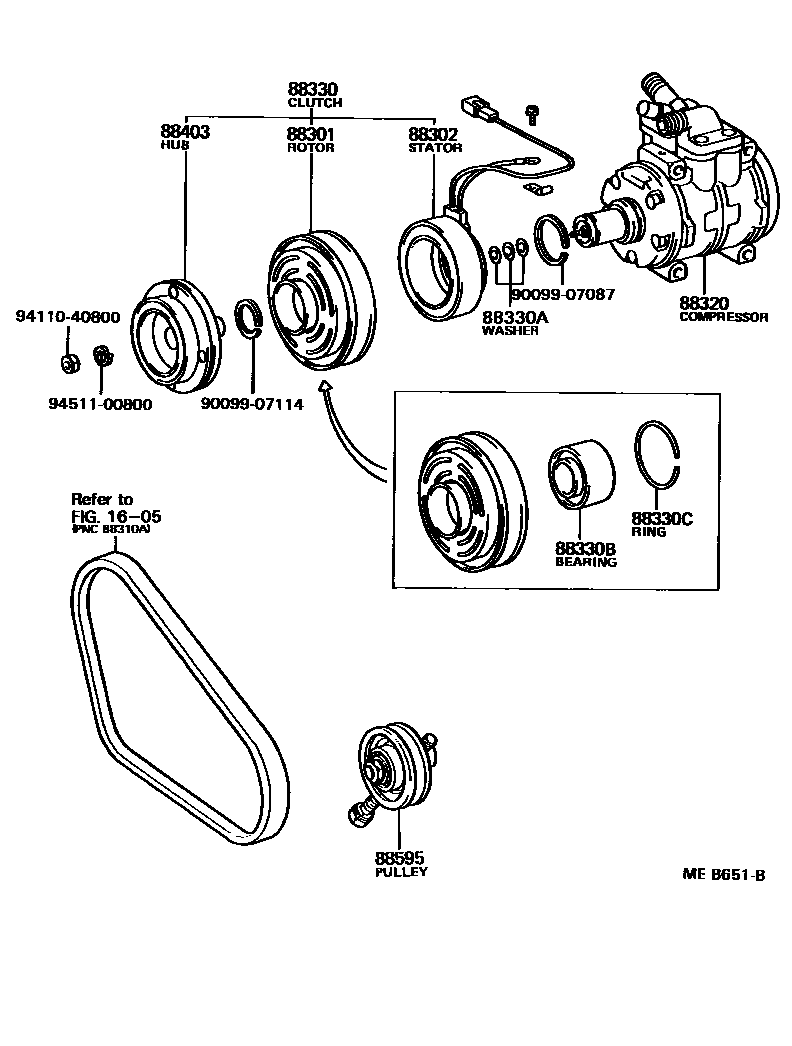

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0004 1 0006 1

1605

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-14030iTT14#198201-198508

main88412-14050iST141..GEN198508-199907

main88412-20070iCT141198201-199401

main88412-20080iYT140198612-199401

main88412-2B050iCT141199401-199907

main88412-2B060iYT140199401-199907

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-12160iCT141,YT140199401-199907

main88411-14050iCT140198201-199907

main88411-14060iTT14#198201-198508

88320COMPRESSOR ASSY, COOLER

main88320-14380iTT14#198201-198508

main88320-14420iST141..GEN198508-199907

sub88320-14421

main88320-20350iCT141198201-199401

main88320-20580iYT140198612-198703

sub88320-20581

main88320-20581iYT140198703-199005

sub88320-20582

main88320-20582iYT140199005-199401

main88320-2B280iCT141199401-199907

main88320-2B290iYT140199401-199907

sub88320-3AH90

88330CLUTCH ASSY, MAGNET

main88410-14110iTT14#198201-198508

main88410-14120iCT141198201-199401

main88410-14130iST141..GEN198508-199907

main88410-20160iYT140198612-199401

sub88410-2B140

main88410-2B130iCT141199401-199907

main88410-2B140iYT140199401-199907

88330AWASHER (FOR MAGNET CLUTCH)

main88335-12050iYT140199401-199907

88330BBEARING, MAGNET CLUTCH

main90099-10133iST141..GEN198201-199907

main90099-10135iTT14#198201-198508

88330CRING, SNAP (FOR MAGNET CLUTCH)

main90099-07094iYT140198612-199907

main90099-07114iTT14#198201-198508

main90099-07118iST141..GEN198201-199907

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-12030iCT141,YT140199401-199907

main88403-14030iCT141,YT140198201-199907

sub88403-12030

main88403-14040iTT14#198201-198508

88595PULLEY, COOLER COMPRESSOR IDLE

main88440-20090iCT141198201-199907

main88440-25010iTT14#198201-198508

sub88440-28050

main88440-30250iYT140198612-199907

sub88440-28050

9009907087

main90099-07087

9009907114

main90099-07114

9411040800

main94110-40800

9451100800

main94511-00800

14 parts on this diagram · 4 diagrams in section
