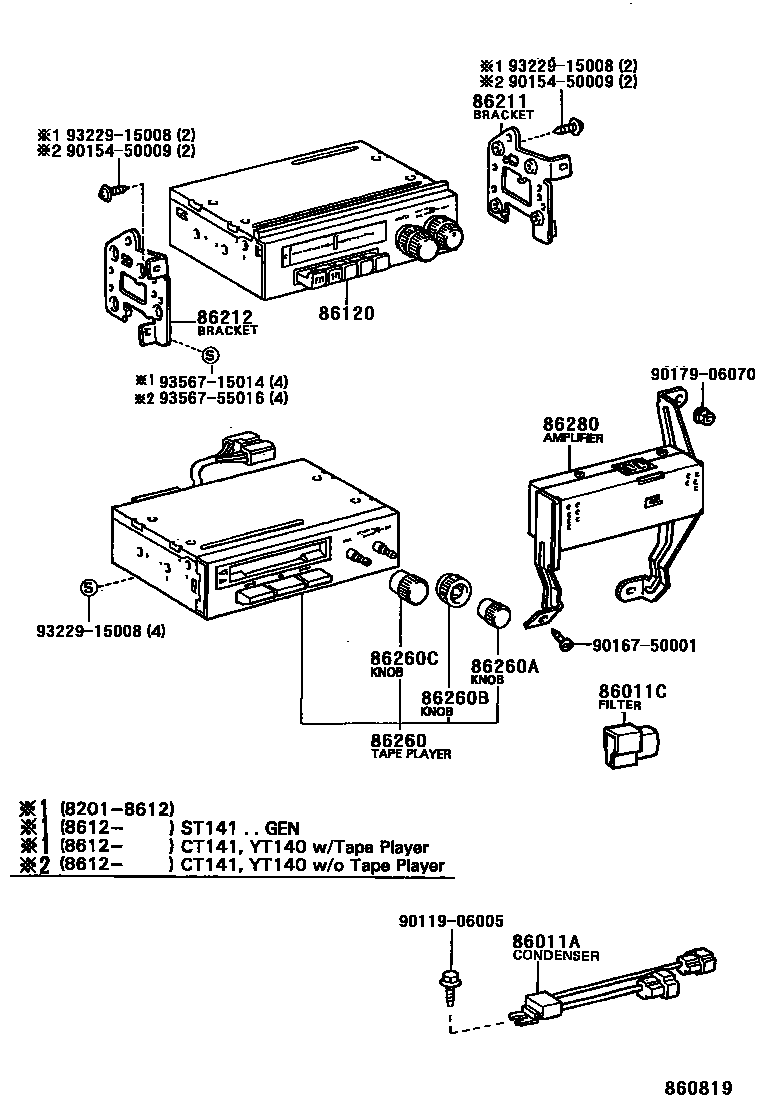

RADIO RECEIVER & AMPLIFIER & CONDENSER
86011ACONDENSER, RADIO SETTING
86011CFILTER, NOISE
86120RECEIVER ASSY, RADIO
MATSUSHITA, ID=51801,AM/FM MPX CD
MATSUSHITA, ID=57207,AM/SW1/SW2 CST
MATSUSHITA,ID=5108,MW/SW
FUJITSU TEN,ID=17409,AM/FM MPX CST(AM=9KHZ STEP)
FUJITSU TEN,ID=17410,AM/FM MPX CST(AM=10KHZ STEP)
MATSUSHITA,ID=57201,AM/FM MPX CST(AM=9KHZ STEP)
FUJITSU TEN,ID=12201,AM/FM MPX
MATSUSHITA,AM/FM MPX
MATSUSHITA,ID=57400,AM/FM MPX CST(AM=5KHZ STEP)
MATSUSHITA,ID=52101,AM(5KHZ STEP)
86211BRACKET, RADIO, NO.1
W/TAPE PLAYER
86212BRACKET, RADIO, NO.2
W/TAPE PLAYER
86260TAPE PLAYER ASSY
NON-REVERSE
86260AKNOB, TAPE PLAYER VOLUME
86260BKNOB, TAPE PLAYER TONE
86260CKNOB, TAPE PLAYER BALANCE
86280AMPLIFIER ASSY, STEREO COMPONENT
9011906005
main90119-06005
9015450009
main90154-50009
9016750001
main90167-50001
9017906070
main90179-06070
9322915008
main93229-15008
9356715014
main93567-15014
9356755016
main93567-55016
17 parts on this diagram · 4 diagrams in section
