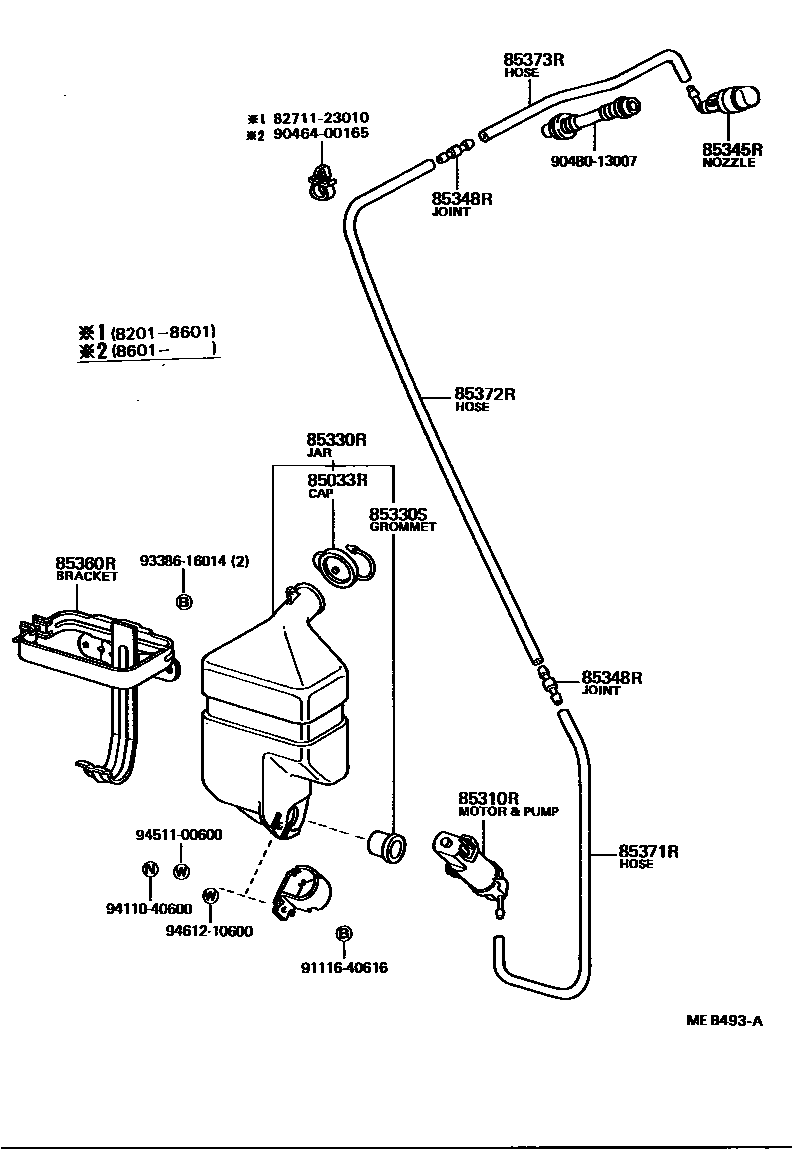

REAR WASHER

85033RCAP ASSY, REAR WASHER

main85033-36120iCT140,RT140,ST141,TT14#..WG198201-198612

85310RMOTOR ASSY, REAR WASHER

main85310-22080iCT140,RT140,ST141,TT14#..WG198201-198612

85330RJAR ASSY, REAR WASHER

main85330-23011iCT140,RT140,ST141,TT14#..WG198201-198612

85330SBUSH, REAR WASHER JAR

main90099-32089iCT140,RT140,ST141,TT14#..WG198201-198612

85345RNOZZLE, REAR WASHER

main85035-91255iCT140,RT140,ST141,TT14#..WG198201-198612

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-89122iCT140,RT140,ST141,TT14#..WG198201-198612

85360RBRACKET ASSY, REAR WASHER

main85360-15010iCT140,RT140,ST141,TT14#..WG198201-198612

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90099-33299iCT140,RT140,ST141,TT14#..WG198201-198612

L=1800(*H,L=450)

85372RHOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)

main90446-06013iCT140,RT140,ST141,TT14#..WG198201-198612

L=1450(*H,L=900)

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33299iCT140,RT140,ST141,TT14#..WG198201-198612

L=1000(*H,L=300)

8271123010WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-23010

9046400165

main90464-00165

9048013007

main90480-13007

9111640616

main91116-40616

9338616014

main93386-16014

9411040600

main94110-40600

9451100600

main94511-00600

9461210600

main94612-10600

18 parts on this diagram · 1 diagram in section
