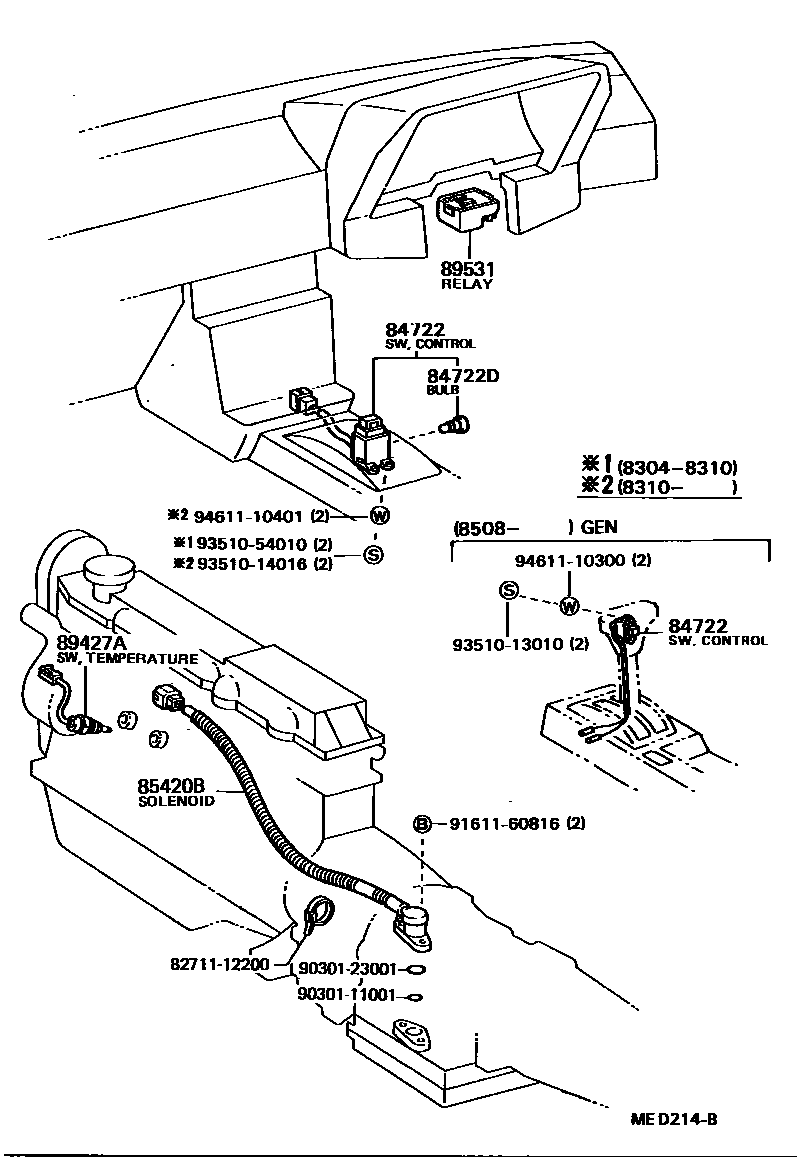

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

84722SWITCH, TRANSMISSION CONTROL

main84722-14060iRT142,ST141..4FC..ARL198304-198612

main84722-14070-01iST141..4FC..GEN198508-199907

BLACK,BLACK

sub84722-14070

main84722-14070-36iST141..4FC..GEN198508-199907

BROWN,SADDLE BROWN

sub84722-14070

84722DBULB, TRANSMISSION CONTROL SWITCH

main90981-11024iRT142,ST141..4FC..ARL198304-198612

12V 1.4W,12V 1.4W

85420BSOLENOID ASSY, TRANSMISSION

main85420-22060iRT142,ST141..4FC198304-199907

89427ASWITCH, TEMPERATURE

main89427-14050iST141..4FC198304-198508

main89427-14060iST141..4FC198508-199907

main89428-20050iRT142..4FC198408-198508

89531RELAY, TRANSMISSION CONTROL

main89531-14050iRT142,ST141..4FC198310-199907

main89531-22030iST141..4FC198304-198310

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

9030111001

main90301-11001

9030123001

main90301-23001

9161160816

main91611-60816

9351013010

main93510-13010

9351014016

main93510-14016

9351054010

main93510-54010

9461110300

main94611-10300

9461110401

main94611-10401

14 parts on this diagram · 1 diagram in section
