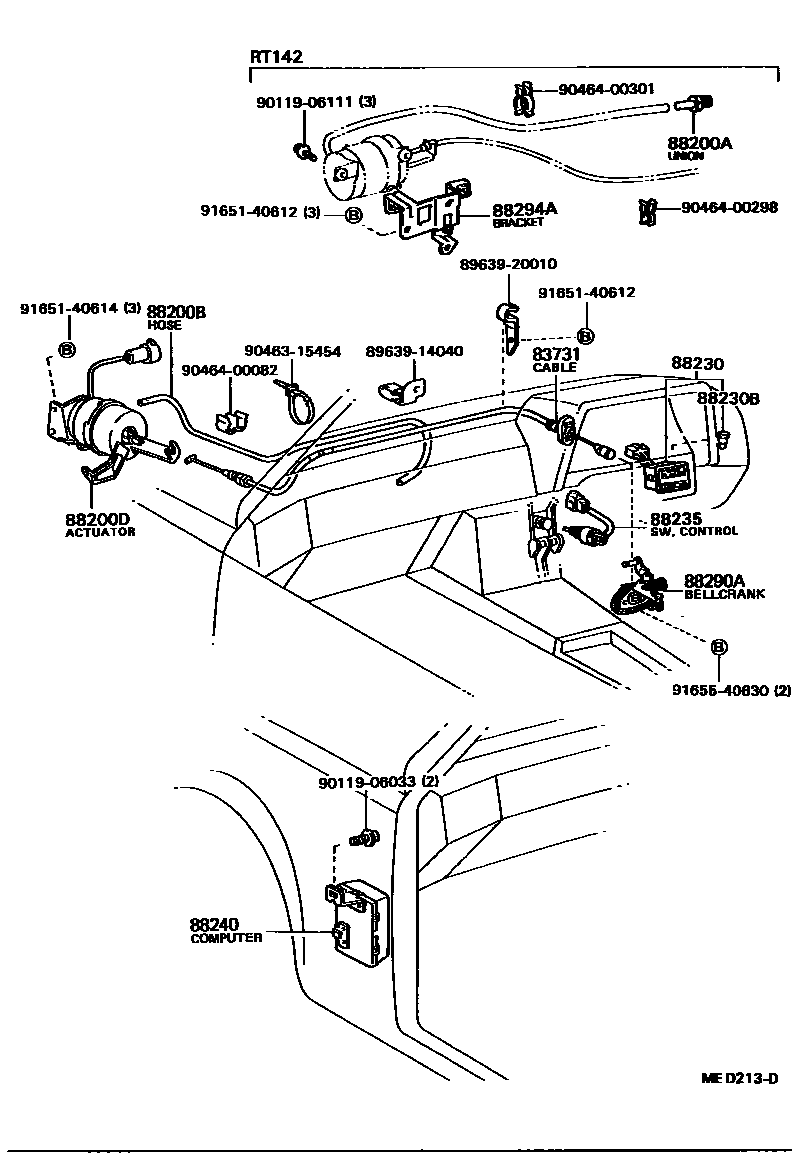

CRUISE CONTROL (AUTO DRIVE)

83731CABLE, CRUISE CONTROL

main83731-14020iST141..CSX198304-198612

main83731-20010iRT142..CXI198408-198612

88200AUNION OR WAY, CRUISE CONTROL VACUUM

main90404-51010iRT142..CXI198408-198612

88200BHOSE, CRUISE CONTROL VACUUM

main90445-08207iST141..CSX198505-198508

L=1300

sub90999-92006

main90445-08214iST141..CSX198304-198505

L=1300(*H,L=1200)

sub90445-08207

main95411-19960iRT142..CXI198408-198612

*H,L=450,MARK=#*

sub90999-92003

88200DACTUATOR ASSY, CRUISE CONTROL

main88200-14040iST141..CSX198304-198612

sub88200-14041

main88200-20030iRT142..CXI198408-198612

sub88200-20031

88230SWITCH ASSY, CRUISE CONTROL(AUTO DRIVE) CONTROL

main88230-20060iRT142,ST141..CSX,CXI198508-198612

main88230-22051iRT142,ST141..CSX,CXI198304-198508

88230BBULB, CRUISE CONTROL(AUTO DRIVE) CONTROL SWITCH

main84999-10170iRT142,ST141..CSX,CXI198508-198612

12V 1.12W

88235SWITCH ASSY, CRUISE CONTROL(AUTO DRIVE) RELEASE

main88280-35010iRT142,ST141..5F..(CSX,CXI)198304-198612

88240COMPUTER ASSY, CRUISE CONTROL

main88240-14060iST141..CSX198304-198308

sub88240-14061

main88240-14061iST141..CSX198308-198508

main88240-20060iRT142..CXI198408-198508

main88240-20130iRT142,ST141..CSX,CXI198508-198612

88290ABELLCRANK ASSY, CRUISE CONTROL

main88290-14010iRT142..CXI198408-198612

main88290-24010iST141..CSX198304-198612

88294ABRACKET, SPEED CONTROL COMPUTER

main88294-20010iRT142..CXI198408-198612

8963914040WIRE, BRAKE CONTROL

main89639-14040

8963920010WIRE, BRAKE CONTROL

main89639-20010

9011906033

main90119-06033

9011906111

main90119-06111

9046315454

main90463-15454

9046400082

main90464-00082

9046400298

main90464-00298

9046400301

main90464-00301

9165140612

main91651-40612

9165140614

main91651-40614

9165540630

main91655-40630

21 parts on this diagram · 1 diagram in section
