INDICATOR

3312

81850LAMP ASSY, INDICATOR

main81850-20120iCT140198201-199907

GLOW

81850BBULB, INDICATOR LAMP

main90981-11018iCT140198201-199907

12V 1.2W W/O SOCKET,12V 1.2W

81855CSOCKET & WIRE, INDICATOR LAMP

main81855-20120iCT140198201-199907

81860LAMP ASSY, TRANSMISSION INDICATOR

main81860-20040iST141..4FC..GEN198508-199907

81860BBULB, TRANSMISSION INDICATOR LAMP

main84999-10110iST141..4FC..GEN198508-199907

12V 1.12W,12V 1.12W

81943LENS, HEATER CONTROL INDICATOR

main81943-20070iCT140,TT14#..RHD198201-198209

main81943-20071iCT14#,RT142,ST141,TT14#..RHD198209-198612

sub81943-20072

main81943-20072iCT141,YT140..RHD198612-199907

main81943-20080iCT140,TT14#..RHD198201-198209

W/BOOST VENTILATOR

main81943-20081iCT140,TT14#..RHD198209-198508

W/BOOST VENTILATOR

sub81943-20082

main81943-20082iCT141,YT140..RHD198612-199907

W/BOOST VENTILATOR

main81943-20090iCT140,TT14#..LHD198201-198209

main81943-20091iST141..GEN198209-199907

sub81943-20092

main81943-20092iCT141,YT140..LHD198612-199907

main81943-20100iCT140,RT140,TT14#..LHD198201-198209

W/BOOST VENTILATOR

main81943-20101iCT140,ST141,TT14#..LHD198209-198512

W/BOOST VENTILATOR

sub81943-20102

main81943-20102iCT141,YT140..LHD198612-199907

W/BOOST VENTILATOR

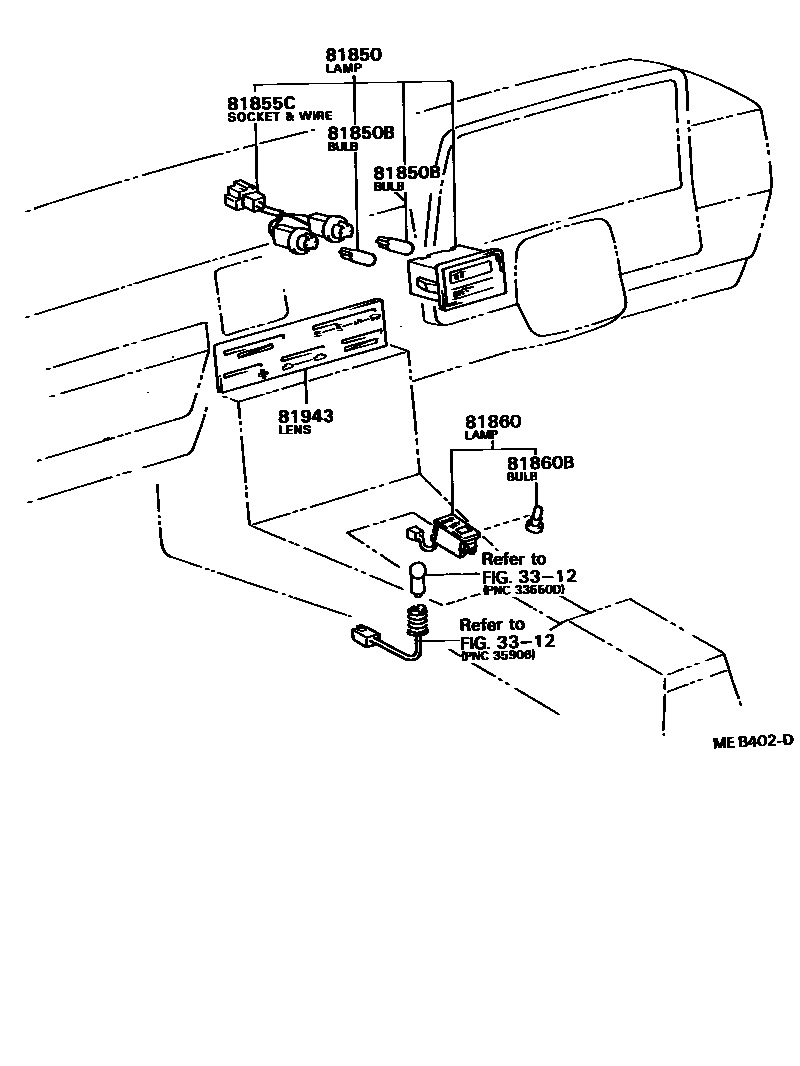

7 parts on this diagram · 1 diagram in section
