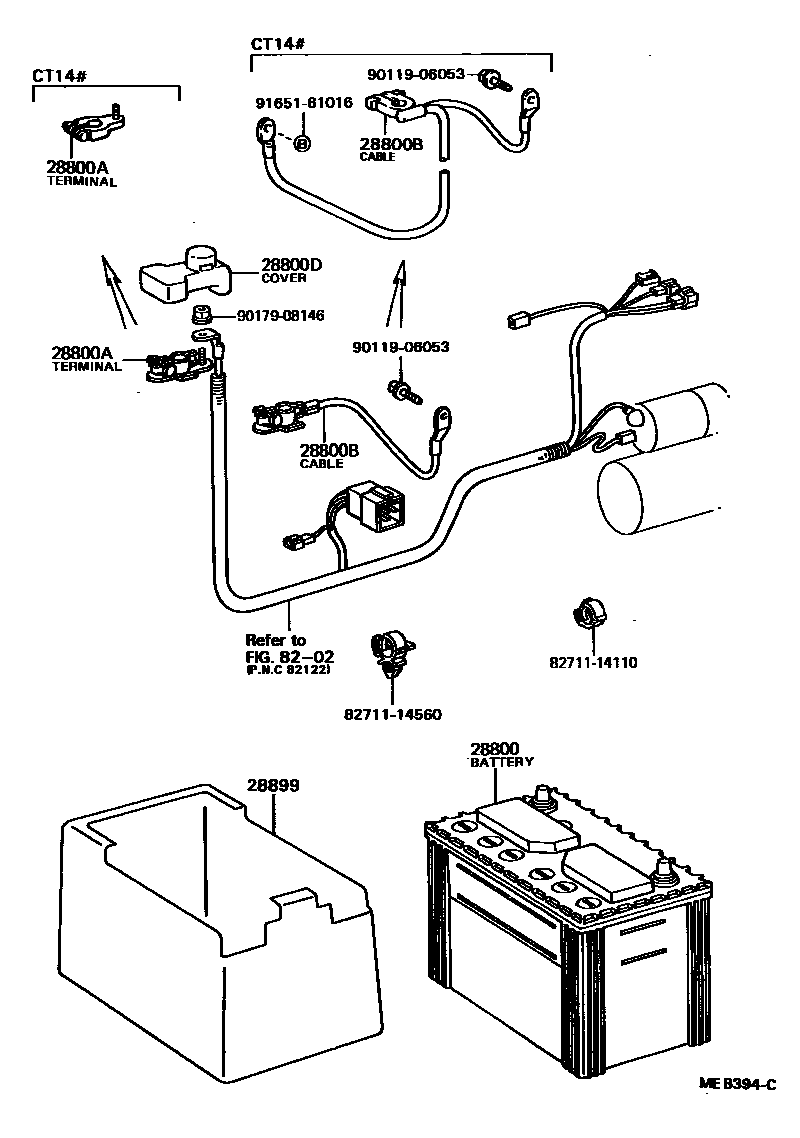

BATTERY & BATTERY CABLE

28800BATTERY

main28800-15050i3T..TT141198504-198508

55D23L,55D23L-MF

sub28800-42030

main28800-24030i2Y..YT140198612-199907

34B19R,34B19R(NS40ZA)

sub28800-24040

main28800-31031i2T,3T..TT14#198201-198310

32C24L,32C24L(N40L)

sub28800-31021

main28800-33071i12RM..RT140198206-198312

32C24R,32C24R(N40)

sub28800-33101

main28800-33111i2Y..YT140198612-199907

55D26R,55D26R(N50Z)

sub28800-33120

main28800-41040i1C..CT140198201-198312

55D26L-MF(N50ZL-MF)

sub28800-43070

main28800-42130i2C..CT141..5F199101-199609

75D31L,75D31L(NX120-7L)

sub28800-42010

main28800-42131i2C..CT141..5F199609-199907

75D31L,75D31L(NX120-7L)

sub28800-42010

main28800-43070i1C..CT140198201-198504

55D23L-MF

main28800-45030i1C..CT140198201-198312

75D31L-MF(N70ZL-MF)

main28800-45050i2C..CT141..5F198812-199101

75D31L,75D31L(NX120-7L)

sub28800-42130

main28800-52010i12RM..RT140198206-198312

55D26R,55D26R-MF(N50Z-MF)

main28800-54030i2C..CT141..4F198612-199907

95D31L,95D31L(NX120-7L)

sub28800-64180

main28800-54200i1C..CT140198306-198812

80D26L,80D26L-MF(NX110-5L-MF)

sub28800-64130

main28800-64121i2C..CT141199609-199907

80D26L,80D26L-MF

sub28800-64131

main28800-64130i2C..CT141198812-199609

80D26L,80D26L-MF(NX110-5L-MF)

sub28800-64132

main28800-70011i2T,3T..TT14#198201-198508

34B19L,34B19L-MF(NS40ZAL-MF)

sub28800-74060

28800ATERMINAL, BATTERY POSITIVE

main90982-05005i2C..CT141198601-198610

80D26L(NX110-5L)

sub90982-05030

main90982-05005i1C..CT140198201-198312

sub90982-05030

main90982-05018i2T,3T..TT14#198201-198411

34B19L(NS40ZAL)

sub90982-05028

main90982-05022i2T,3T..TT14#198201-198411

32C24L(N40L),55D23L

sub90982-05030

main90982-05022i2SC..ST141198304-198411

34B19L(NS40ZAL)

sub90982-05030

main90982-05022i12RM..RT140198206-198312

32C24R(N40),55D26R(N50Z)

sub90982-05030

main90982-05028i2T,3T..TT14#198411-198508

34B19L(NS40ZAL)

sub90982-05057

main90982-05028i2Y..YT140198612-199907

34B19R(NS40ZA)

sub90982-05057

main90982-05030i2T,3T..TT14#198411-198508

34B19L(NS40ZAL)

main90982-05030i2T,3T..TT14#198411-198508

32C24L(N40L),55D23L

main90982-05030i2C..CT141198610-198612

80D26L(NX110-5L)

main90982-05030i2S#..ST141198508-199907

32C24L(N40L),34B19L(NS40ZAL)

main90982-05030i2C,2Y..CT141,YT140198612-199907

80D26L(NX110-5L),55D26R(N50Z)

28800BCABLE, BATTERY TO GROUND

main90982-02222i2Y..YT140198612-199907

BATTERY:34B19R(NS40ZA)

main90982-02222i2T,3T..TT14#198201-198508

BATTERY:34B19L(NS40ZAL)

main90982-02224i2Y..YT140198612-199907

BATTERY:55D26R(N50Z)

main90982-02224i2T,3T..TT14#198201-198508

BATTERY:32C24L(N40L),55D23L

main90982-02224i22REC,2S#..RT142,ST141198304-199907

main90982-02239i1C..CT140198201-199907

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-24010i12RM,1C,2C,2S#,2T,3T,2Y..CT14#,RT140,ST141,TT14#,YT140198201-199907

28899INSULATOR, BATTERY

main28899-54050i2C..CT141..5F199609-199907

main28899-64040i2C..CT141..5F198812-199209

sub28899-64041

main28899-64041i2C..CT141..5F199209-199609

8202

8271114110WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14110

8271114560WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14560

9011906053

main90119-06053

9017908146

main90179-08146

9165161016

main91651-61016

11 parts on this diagram · 1 diagram in section
