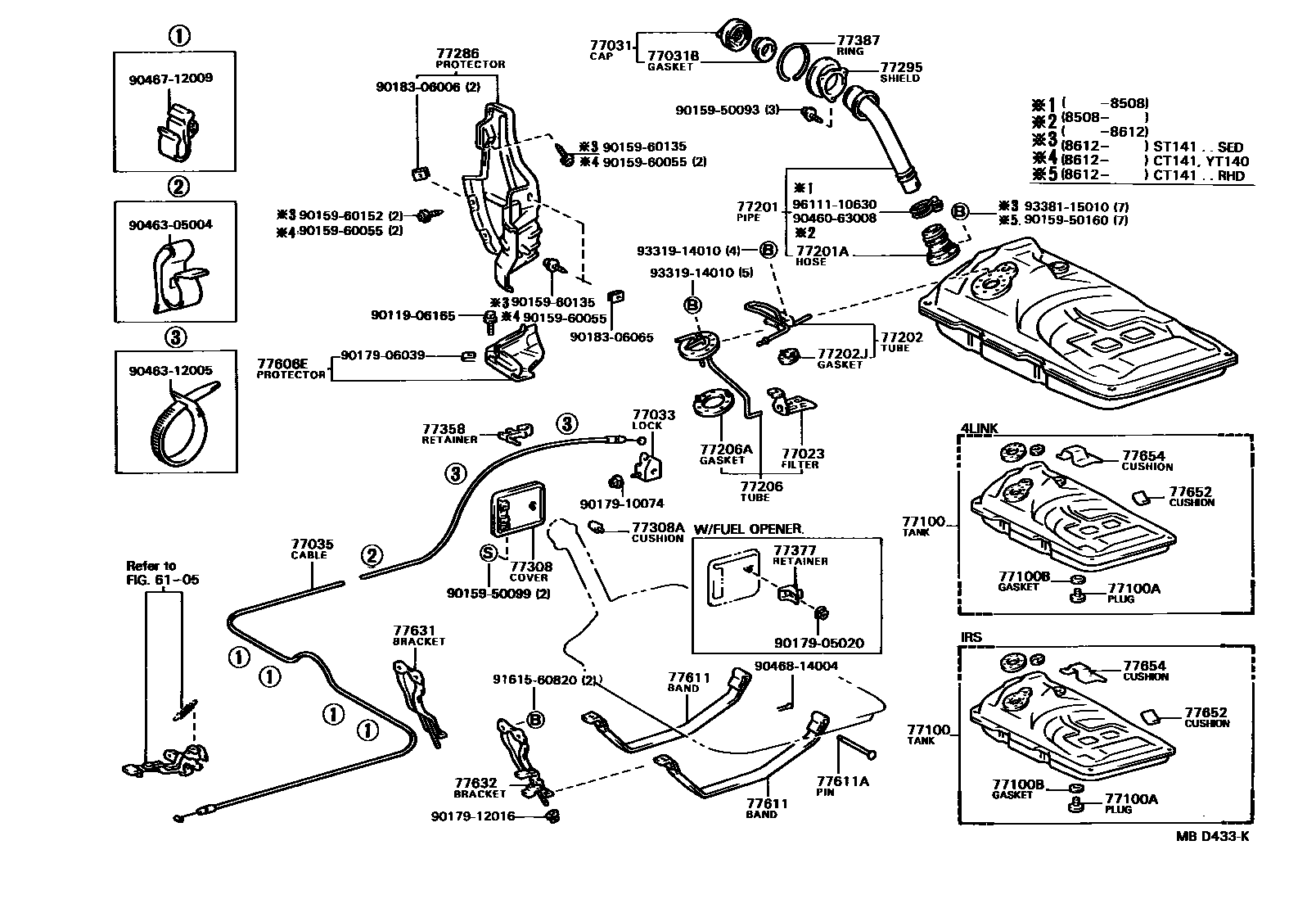

FUEL TANK & TUBE

0001 1 0005 1 0007 1 0008 1 0009 1 0011 1 0012 1 0013 1 0014 1 0015 1 0016 1 0017 1 0019 1 0020 1 0021 1

6105

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-12050iST141..WG..GEN198201-199907

main77023-14030iST141..SED..GEN198508-199907

main77023-22040iCT140,ST141198201-198508

main77023-32010iCT141,ST141..GEN198508-199907

77031CAP ASSY, FUEL TANK

main77310-12100iCT140,TT14#198201-199907

main77310-35061iCT140198205-199907

77031BGASKET (FOR FUEL TANK CAP)

main77316-12050iCT14#,RT14#,ST141,TT14#198201-199907

77033LOCK SUB-ASSY, FUEL TANK CAP

main77037-14010iRT142,ST141..CSX,CXI198304-199907

sub77037-90K00

main77037-24010iCT140,RT140,TT14#..DLX,GL,TAX198201-198304

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-14070iTT140..4H..ME198201-199907

main77035-14110iRT142,ST141..CSX,CXI198201-199907

sub77035-14090

main77035-91258iTT141..WG..RHD198201-198508

sub77035-14090

main77035-91260iTT141..WG..LHD198201-198508

sub77035-14200

77100TANK ASSY, FUEL

main77001-19085iCT140..SED198201-198206

sub77001-29065

main77001-19095iST141198201-198307

sub77001-19096

sub77012-14023

main77001-19096iRT140,TT14#..SED198307-199907

main77001-19107iRT142..SED198508-198612

main77001-19125iRT140,TT14#..WG198201-198302

sub77001-19275

main77001-19135iCT140..STD198201-198302

sub77001-19285

main77001-19188iRT142198408-198612

main77001-19275iST141..WG..GEN198302-199907

sub77001-19285

main77001-19285iCT140..STD198302-198312

main77001-29065iCT140..SED198206-198209

sub77001-29066

main77001-29065iCT140..SED198201-198206

CHIP

sub77001-29066

main77001-29066iCT140..SED198209-198307

sub77001-29068

sub77012-14023

main77001-29068iCT141198307-199907

77100APLUG(FOR FUEL TANK)

main90105-12018iST141..WG..GEN198201-199907

main90341-20003iRT142,ST141198209-198412

OD=20

sub90341-20004

main90341-20004iTT141..SED198412-199907

OD=20

main90341-24036iCT140,RT140,TT14#..SED198201-198209

OD=24

77100BGASKET(FOR FUEL TANK)

main90430-12245iST141..WG..GEN198201-199907

main90430-20006iRT142,ST141198209-199907

ID=20.3

main90430-20007iTT141..SED198412-199907

ID=20.3

main90430-24047iCT140,RT140,TT14#..SED198201-198209

ID=24

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-14200iCT141,YT140..LHD198201-199907

main77201-14210iRT142..WG198508-198612

main77201-14230iRT142..SED198508-198612

main77201-20230iCT141..5F198612-199907

main77201-91258iCT140,RT140,TT14#..WG198201-199907

77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)

main77213-14090iRT142,ST141..ARL198201-199907

77202TUBE SUB-ASSY, BREATHER

main77012-14022iST141198201-198307

sub77012-14023

main77012-14023iST141198307-199907

main77012-14041iRT142..SED198508-198612

77202JGASKET (FOR BREATHER TUBE)

main77179-14030iCT140,RT140,TT14#..SED198201-199907

77206TUBE SUB-ASSY, FUEL TANK SUCTION

main77203-14041iST141198306-198508

W/FUEL RETURN

main77203-14041iST141..SED..GEN198508-199907

main77203-14061iRT140,TT14#..SED..(3FC,3H,4F,5F)..(GEN,PHL)198201-198508

W/O FUEL RETURN

main77203-14100iTT140..4H;TT141..LHD..3FC..GEN;TT14#..(3FC,4F,5F)..ME198201-198306

W/FUEL RETURN

main77203-14100iST141198304-198306

main77203-14110iCT140..SED198201-199907

77206AGASKET (FOR FUEL TANK SUCTION TUBE)

main77169-14020iCT141,YT140198201-199907

77286PROTECTOR, FUEL TANK INLET PIPE

main77277-20050iCT141,ST141..SED198201-199907

main77277-20060iRT142..SED198508-198612

77295SHIELD, FUEL FILLER PIPE

main77034-14010iCT140,RT140,TT14#..SED198201-199907

main77291-12010iST141..WG..GEN198201-198612

77308COVER SUB-ASSY, FUEL INLET BOX

main77350-14040iRT142,ST141..WG..ARL198201-199907

main77350-91257iST141..WG..GEN198201-199907

main77350-91D01iRT142,ST141..CSI,CSX198508-198612

main77350-91D01iCT141,YT140198612-199907

W/FUEL LID OPENER

77308ACUSHION(FOR FUEL INLET BOX COVER)

main90541-05009iCT140,RT140,TT14#..SED198201-199907

main90541-08003iCT140,RT140,TT14#..WG198201-199907

77358RETAINER, FUEL INLET CUSHION

main77360-24010iCT14#,RT14#,ST141,TT14#198201-199907

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-20030iCT141,YT140198612-199907

77387RING, FUEL INLET BOX

main77391-14020iCT140,RT140,TT14#..SED198201-199907

77606EPROTECTOR, FUEL TANK, NO.4

main77641-14080iCT141,ST141..SED..GEN198201-199907

77611BAND, FUEL TANK

main77601-14040iCT140,TT14#..SED198201-198206

sub77601-14060

main77601-14050iCT140,RT140,TT14#..SED198206-199907

main77601-14060iRT142,ST141..ARL198304-198612

sub77601-14050

77611APIN (FOR FUEL TANK BAND)

main90240-08020iCT140,RT140,TT14#..SED198201-199907

77631BRACKET, FUEL TANK, NO.1

main77613-14022iST141..ARL198201-199907

main77613-14040iRT142..SED198508-198612

77632BRACKET, FUEL TANK, NO.2

main77614-14021iST141..ARL198201-199907

main77614-14040iRT142..SED198508-198612

77652CUSHION, FUEL TANK, NO.1

main77651-14070iCT141,YT140198612-199907

main77651-91C01iCT140,RT140,TT14#..WG198302-199907

main77652-14080iRT142,ST141198201-198612

77654CUSHION, FUEL TANK, NO.2

main77652-14090iRT142..SED198508-198612

main77652-20010iCT141,YT140198612-199907

main77652-91602iCT140,RT140,TT14#..WG198201-199907

9011906165

main90119-06165

9015950093

main90159-50093

9015950099

main90159-50099

9015950160

main90159-50160

9015960055

main90159-60055

9015960135

main90159-60135

9015960152

main90159-60152

9017905020

main90179-05020

9017906039

main90179-06039

9017910074

main90179-10074

9017912016

main90179-12016

9018306006

main90183-06006

9018306065

main90183-06065

9046063008

main90460-63008

9046305004

main90463-05004

9046312005

main90463-12005

9046712009

main90467-12009

9046814004

main90468-14004

9161560820

main91615-60820

9331914010

main93319-14010

9338115010

main93381-15010

9611110630

main96111-10630

51 parts on this diagram · 15 diagrams in section
