REAR MOULDING

0001 1 0002 1

75082PANEL SUB-ASSY, LOWER BACK FINISH, CENTER

main75082-29065iST141,TT141..CSX,GL198201-198310

sub75082-29066

main75082-29066iRT142,ST141,TT141..CSX,CXI,GL198310-198508

75571MOULDING, BACK WINDOW, OUTSIDE UPPER

main75571-20160iCT140,RT14#,ST141,TT14#..SED198201-199907

main75571-20250iCT141,YT140198612-199907

main75571-91C01iRT142,ST141,TT141..WG198201-199907

75572MOULDING, BACK WINDOW, LOWER

main75575-20120iCT140,RT14#,ST141,TT14#..SED198201-199907

main75575-20230iCT141,YT140198612-199907

main75575-91C01iRT142,ST141,TT141..WG198201-199907

75573MOULDING, BACK WINDOW SIDE, RH

main75573-20120iCT140,RT14#,ST141,TT14#..SED198201-199907

main75573-20210iCT141,YT140198612-199907

main75573-91C01iRT142,ST141,TT141..WG198201-199907

75574MOULDING, BACK WINDOW SIDE, LH

main75573-20120iCT140,RT14#,ST141,TT14#..SED198201-199907

main75573-20210iCT141,YT140198612-199907

main75573-91C01iRT142,ST141,TT141..WG198201-199907

75575MOULDING, BACK WINDOW CORNER, UPPER RH

main75581-20030iCT140,RT14#,ST141,TT14#..SED198201-199907

main75581-20100iCT141,YT140198612-199907

main75581-91C01iRT142,ST141,TT141..WG198201-199907

75576MOULDING, BACK WINDOW CORNER, UPPER LH

main75581-20030iCT140,RT14#,ST141,TT14#..SED198201-199907

main75581-20100iCT141,YT140198612-199907

main75581-91C01iRT142,ST141,TT141..WG198201-199907

75577MOULDING, BACK WINDOW CORNER, LOWER RH

main75583-20030iCT140,RT14#,ST141,TT14#..SED198201-199907

main75583-20080iCT141,YT140198612-199907

main75583-91C01iRT142,ST141,TT141..WG198201-199907

75578MOULDING, BACK WINDOW CORNER, LOWER LH

main75583-20030iCT140,RT14#,ST141,TT14#..SED198201-199907

main75583-20080iCT141,YT140198612-199907

main75583-91C01iRT142,ST141,TT141..WG198201-199907

9017905095

main90179-05095

9046711030

main90467-11030

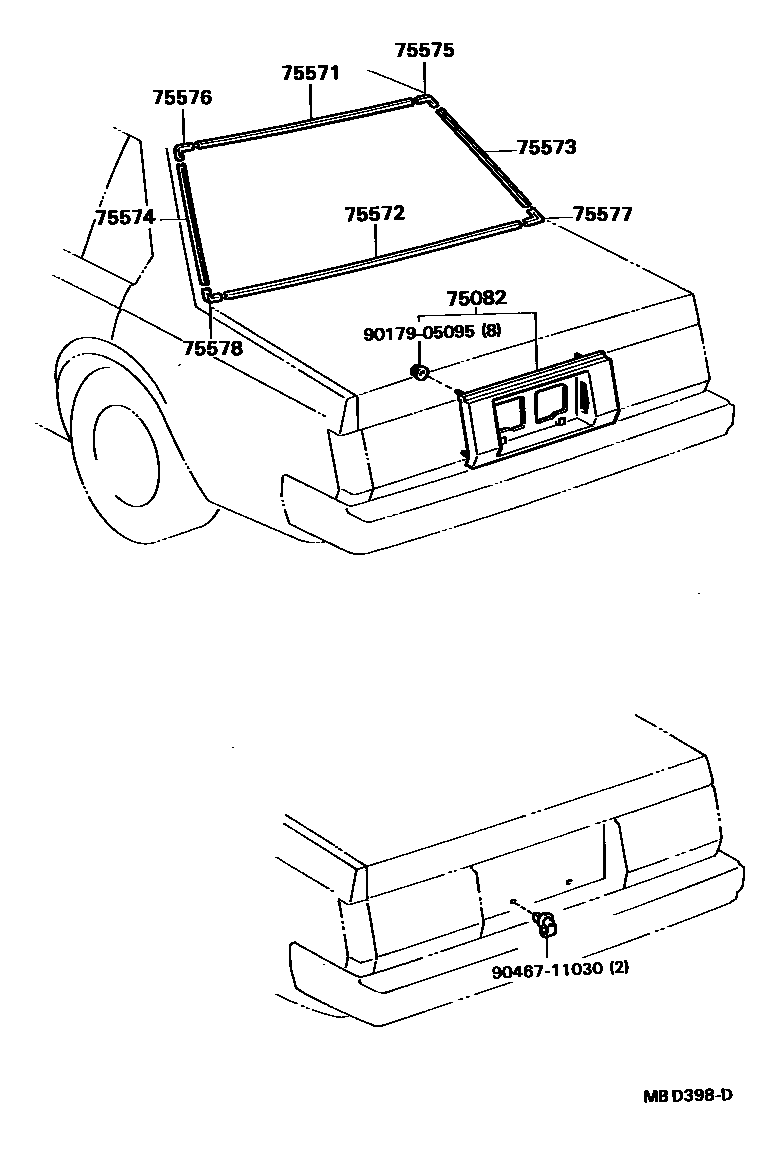

11 parts on this diagram · 2 diagrams in section
