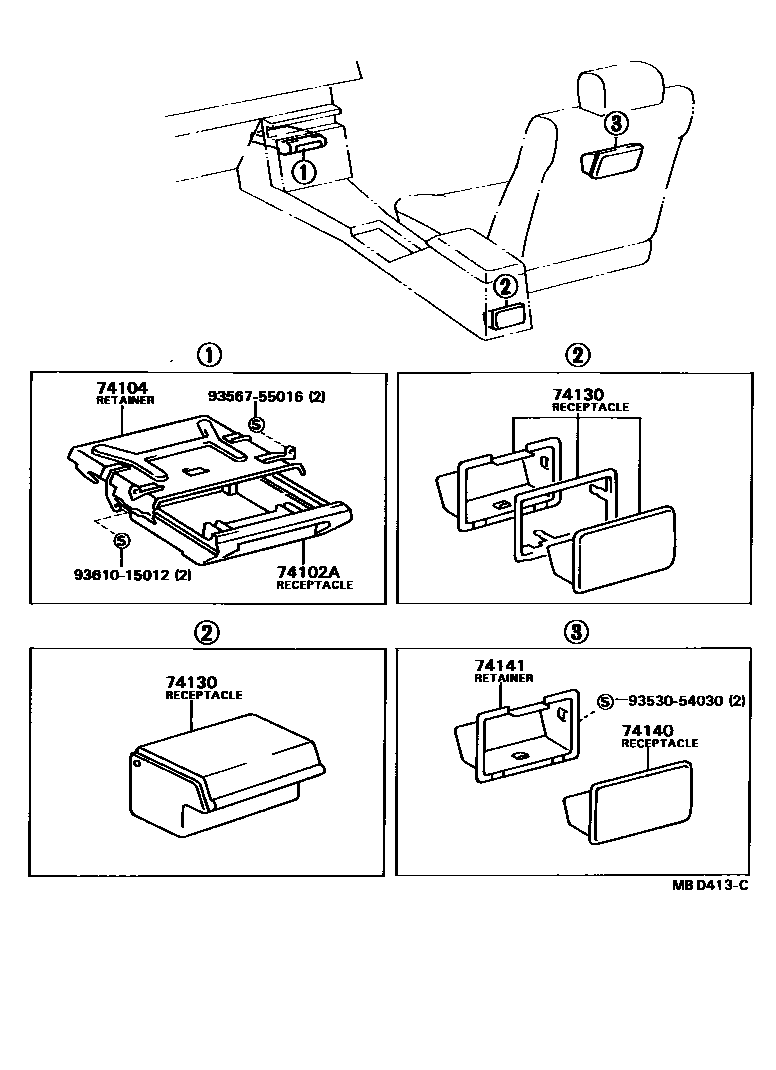

ASH RECEPTACLE

74102ARECEPTACLE ASSY, FRONT ASH

main74102-20060-01iCT140,RT140,ST141,TT14#..LHD198201-199907

BLACK,BLACK

sub74102-20090

main74102-20060-04iCT140,RT140,TT14#..SED..LHD198201-198508

BLUE,BLUE

sub74102-20090

main74102-20060-06iCT140,RT140,ST141,TT14#..LHD198201-199907

SADDLE BROWN,BROWN

sub74102-20090

main74102-20090-01iCT140,RT142,ST141,TT14#..RHD198201-199907

BLACK,BLACK

main74102-20090-04iCT140,RT142,ST141,TT14#..SED..RHD198201-198508

BLUE,BLUE

main74102-20090-06iCT140,RT142,ST141,TT14#..RHD198201-198508

SADDLE BROWN,BROWN

74104RETAINER SUB-ASSY, ASH RECEPTACLE, NO.1

main74104-20140iCT14#,RT142,ST141,TT14#,YT140..RHD198201-199907

main74104-20150iCT140,RT140,ST141,TT14#..LHD198201-199907

74130RECEPTACLE ASSY, REAR ASH

main74130-12040-01iCT140,RT14#,ST141,TT14#..3FC,4F,4FC,5F198201-199907

W/FULL CONSOLE,BLACK,BLACK

sub74109-20080

sub74130-12040

main74130-12040-14iCT141..5F198804-199907

*ST,W/FULL CONSOLE BLUE,BLUE

sub74109-20080

sub74130-12040

main74130-12040-14iCT140,RT14#,ST141,TT14#..SED..(3FC,4F,4FC,5F)198201-198508

W/FULL CONSOLE,BLUE,BLUE

sub74109-20080

sub74130-12040

main74130-12040-16iCT140,RT14#,ST141,TT14#..3FC,4F,4FC,5F198201-199907

W/FULL CONSOLE,SADDLE BROWN,BROWN

sub74109-20080

sub74130-12040

main74130-20060-01iCT140,RT140,TT140..(4F,5F)..STD198201-198312

BLACK,BLACK

sub74130-16010

sub74130-20060

main74130-20060-01iCT140..RHD;CT140..TAX198201-198310

TAXI SPEC,BLACK,BLACK

sub74130-16010

sub74130-20060

main74130-20060-01iCT140..RHD198310-198312

W/SEMI CONSOLE,BLACK,BLACK

sub74130-16010

sub74130-20060

main74130-20060-14iCT140..RHD;CT140..TAX198201-198310

TAXI SPEC,BLUE,BLUE

sub74130-16010

sub74130-20060

main74130-20060-14iCT140..RHD198310-198312

W/SEMI CONSOLE,BLUE,BLUE

sub74130-16010

sub74130-20060

main74130-20060-14iST141..SED198201-198312

BLUE,BLUE

sub74130-16010

sub74130-20060

main74130-20060-56iCT140..RHD198310-198312

W/SEMI CONSOLE,SADDLE BROWN,BROWN

sub74130-16010

sub74130-20060

main74130-20060-56iRT140,TT140..4F..STD198201-198312

SADDLE BROWN,BROWN

sub74130-16010

sub74130-20060

main74130-20060-56iCT140..RHD;CT140..TAX198201-198310

TAXI SPEC,SADDLE BROWN,BROWN

sub74130-16010

sub74130-20060

main74130-20080-01iCT141,YT140198601-199308

BLACK,BLACK

sub74130-20110

main74130-20110-C0iCT141,YT140199308-199907

BLACK,BLACK

74140RECEPTACLE ASSY, ASH(FOR SEAT)

main74109-20030iTT140..3H,4H198201-198310

74141RETAINER, REAR ASH RECEPTACLE, INNER

main74108-20050iTT140..3H,4H198201-198310

9353054030

main93530-54030

9356755016

main93567-55016

9361015012

main93610-15012

8 parts on this diagram · 1 diagram in section
