BATTERY CARRIER

74411CARRIER, BATTERY

main74411-14070iCT141198201-198612

55D23L,55D26L(N50ZL)

main74411-14070iCT141198612-199907

55D26L,80D26L

main74411-14080iCT140198201-198312

75D31L(N70ZL)

main74411-14080iCT141198612-199907

95D31L,75D31L

main74431-14020iST141..GEN198508-199907

32C24L(N40L)

main74431-14020iRT140,TT14#198201-198508

32C24L(N40L),32C24R(N40)

main74431-14030iRT140198206-198312

55D26R(N50Z)

sub74431-52040

main74431-14030iYT140198612-199907

55D26R

sub74431-52040

main74431-14050iRT142,ST141..ARL198201-199907

34B19L(NS40ZAL)

main74431-14050iYT140198612-199907

34B19R,34B19L

74413BOLT, BATTERY CLAMP

main74451-14010iRT14#,ST141,TT14#198201-199907

32C24L(N40L),32C24R(N40)

main74451-14010iYT140198612-199907

34B19R,34B19L,55D26R

main74451-30060iCT140,TT14#..GEN198201-198508

55D23L,55D26L(N50ZL)

main74451-30060iCT141198612-199907

55D26L,80D26L,95D31L,75D31L

main74451-30060iCT141198601-198612

77D31L(N70ZL);55D23L,55D26L(N50ZL)

74481CLAMP, BATTERY HOLD DOWN

main74404-14220iYT140198612-199907

34B19R,34B19L

main74404-14220iRT142,ST141..ARL198201-198612

34B19L(NS40ZAL)

main74404-14230iST141..GEN198508-199907

32C24L(N40L)

main74404-14230iRT140,TT14#198201-198508

32C24L(N40L),32C24R(N40)

main74404-14240iCT140,TT14#..GEN198201-198612

55D23L,55D26L(N50ZL)

main74404-14240iCT141198612-199907

55D26L,80D26L

main74404-14250iYT140198612-199907

55D26R

main74404-14250iRT140198206-198312

55D26R(N50Z)

main74404-14280iCT141198612-199907

95D31L,75D31L

main74404-14280iCT140198201-198312

75D31L(N70ZL)

9017906223

main90179-06223

9165140612

main91651-40612

9166640616

main91666-40616

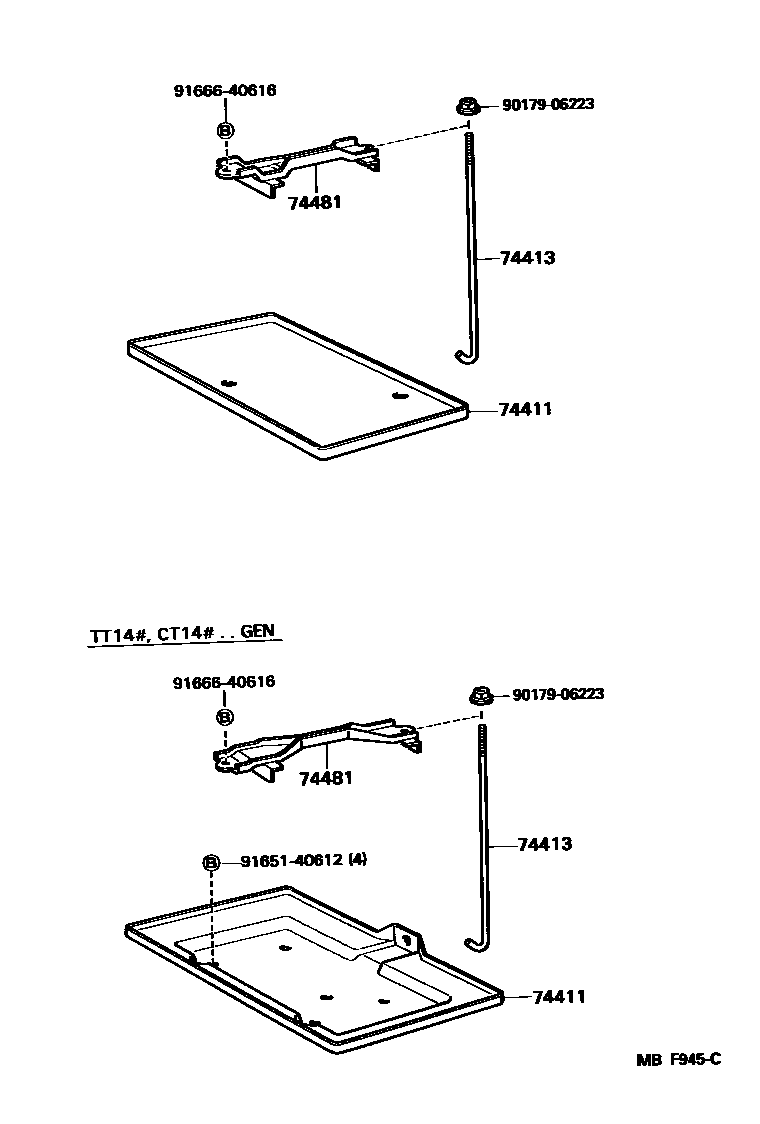

6 parts on this diagram · 1 diagram in section
