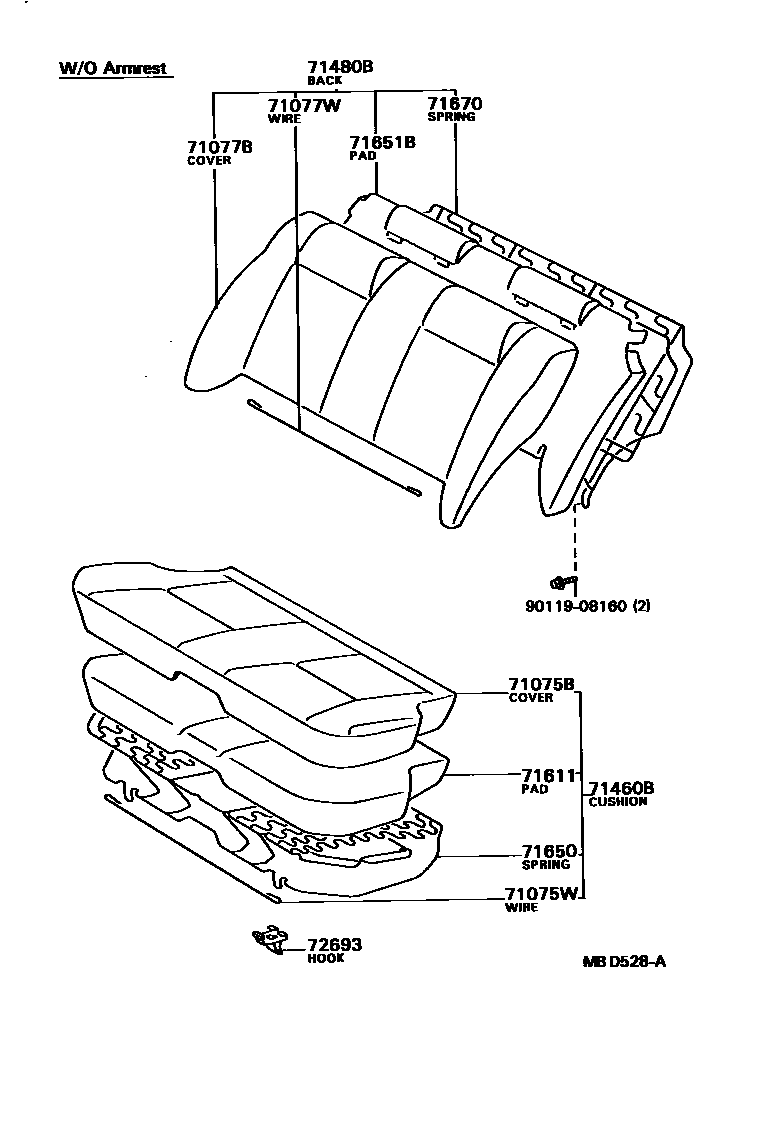

REAR SEAT & SEAT TRACK

0001 1 0003 1 0004 1 0005 1 0007 1 0008 1

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71065-20020-03iCT140,RT140,TT14#..SED..(DLX,GL,TAX)198201-198508

FB,GRAY,GRAY

main71065-20020-04iCT140,RT140,TT14#..SED..(DLX,GL,TAX)198201-198508

FB,BLUE,BLUE

main71065-20020-05iCT140,RT140,TT14#..SED..(DLX,GL,TAX)198201-198508

FB,BEIGE,BEIGE

main71065-20030-03iST141..SED..GEN198201-199907

KN,GRAY,GRAY

main71065-20030-04iCT140,RT140,TT14#..SED..(3FC,4F,5F)..(DLX,STD,TAX)198201-198508

KN,BLUE,BLUE

main71065-20030-05iCT140,RT140,TT14#..SED..(3FC,4F,5F)..(DLX,STD,TAX)198201-199907

KN,BEIGE,BEIGE

main71065-20040-03iCT140,TT14#..SED..(3FC,4F,5F)..(DLX,STD,TAX)198201-198206

PF,GRAY,GRAY

main71065-20040-04iCT140,TT14#..SED..(3FC,4F,5F)..(DLX,STD,TAX)198201-198206

PF,BLUE,BLUE

main71065-20040-05iCT140,TT14#..SED..(3FC,4F,5F)..(DLX,STD,TAX)198201-198206

PF,BEIGE,BEIGE

main71065-20050-03iTT140..3H,4H198201-198206

PF,GRAY,GRAY

main71065-20050-04iTT140..3H,4H198201-198206

PF,BLUE,BLUE

main71065-20050-05iTT140..3H,4H198201-198206

PF,BEIGE,BEIGE

main71065-20110-03iCT140,RT140,TT14#..SED..(3FC,4F,5F)..(DLX,STD,TAX)198206-198508

PF,GRAY,GRAY

main71065-20110-04iCT140,RT140,TT14#..SED..(3FC,4F,5F)..(DLX,STD,TAX)198206-198508

PF,BLUE,BLUE

main71065-20110-05iCT140,RT140,TT14#..SED..(3FC,4F,5F)..(DLX,STD,TAX)198206-198508

PF,BEIGE,BEIGE

main71065-20120-03iTT140..3H,4H198206-198310

PF,GRAY,GRAY

main71065-20120-04iTT140..3H,4H198206-198310

PF,BLUE,BLUE

main71065-20120-05iTT140..3H,4H198206-198310

PF,BEIGE,BEIGE

main71065-20630-03iCT141,YT140198612-199907

VL,GRAY,GRAY

main71065-20630-04iCT141,YT140198705-199907

*ST,NTUC,VL,BLUE,BLUE

main71065-20650-03iCT141,YT140198612-199907

FB,GRAY,GRAY

main71065-91260-03iTT141..WG198311-198508

PF,GRAY,GRAY

main71065-91260-05iTT141..WG198311-198508

PF,BEIGE,BEIGE

main71075-20891-01iCT141198601-198612

VL,BLACK,BLACK

main71075-91288-03iCT140,RT140,TT14#..WG198201-198311

PF,GRAY,GRAY

main71075-91288-05iCT140,RT140,TT14#..WG198201-198311

PF,BEIGE,BEIGE

main71075-91289-03iCT140,RT140,TT14#..WG198201-199907

KN,GRAY,GRAY

main71075-91289-05iCT140,RT140,TT14#..WG198201-199907

KN,BEIGE,BEIGE

71075WWIRE, REAR SEAT CUSHION COVER

main90580-20116iCT140,RT140,TT14#..SED198201-198508

OD=2.0,L=990

sub90580-20107

main90580-20125iCT140,RT140,TT14#..SED198201-198408

OD=2.0,L=400

main90580-20168iCT140,RT140,TT14#..SED198201-198508

OD=2.0,L=1300

sub90580-20170

71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)

main71077-20862-01iCT141198601-198604

VL,BLACK,BLACK

main71077-20863-01iCT141198604-198612

VL,BLACK,BLACK

main71077-20890-03iTT141..GL198201-198412

W/RECLINING,FB,GRAY,GRAY

main71077-20890-04iTT141..GL198201-198412

W/RECLINING,FB,BLUE,BLUE

main71077-20890-05iTT141..GL198201-198412

W/RECLINING,FB,BEIGE,BEIGE

main71077-2B100-03iCT140,RT140,TT14#..SED..(DLX,GL,TAX)198201-198508

W/O RECLINING,FB,GRAY,GRAY

main71077-2B100-04iCT140,RT140,TT14#..SED..(DLX,GL,TAX)198201-198508

W/O RECLINING,FB,BLUE,BLUE

main71077-2B100-05iCT140,RT140,TT14#..SED..(DLX,GL,TAX)198201-198508

W/O RECLINING,FB,BEIGE,BEIGE

main71077-2B110-03iST141..SED..GEN198201-199907

KN,GRAY,GRAY

main71077-2B110-04iCT140,RT140,TT14#..SED..(3FC,4F,5F)..(DLX,STD,TAX)198201-198508

KN,BLUE,BLUE

main71077-2B110-05iCT140,RT140,TT14#..SED..(3FC,4F,5F)..(DLX,STD,TAX)198201-199907

KN,BEIGE,BEIGE

main71077-2B120-03iCT140,TT14#..SED..(3FC,4F,5F)..(DLX,STD,TAX)198201-198206

PF,GRAY,GRAY

main71077-2B120-04iCT140,TT14#..SED..(3FC,4F,5F)..(DLX,STD,TAX)198201-198206

PF,BLUE,BLUE

main71077-2B120-05iCT140,TT14#..SED..(3FC,4F,5F)..(DLX,STD,TAX)198201-198206

PF,BEIGE,BEIGE

main71077-2B130-03iTT140..3H,4H198201-198206

PF,GRAY,GRAY

main71077-2B130-04iTT140..3H,4H198201-198206

PF,BLUE,BLUE

main71077-2B130-05iTT140..3H,4H198201-198206

PF,BEIGE,BEIGE

main71077-2B210-03iCT140,RT140,TT14#..SED..(3FC,4F,5F)..(DLX,STD,TAX)198206-198508

PF,GRAY,GRAY

main71077-2B210-04iCT140,RT140,TT14#..SED..(3FC,4F,5F)..(DLX,STD,TAX)198206-198508

PF,BLUE,BLUE

main71077-2B210-05iCT140,RT140,TT14#..SED..(3FC,4F,5F)..(DLX,STD,TAX)198206-198508

PF,BEIGE,BEIGE

main71077-2B220-03iTT140..3H,4H198206-198310

PF,GRAY,GRAY

main71077-2B220-04iTT140..3H,4H198206-198310

PF,BLUE,BLUE

main71077-2B220-05iTT140..3H,4H198206-198310

PF,BEIGE,BEIGE

main71077-2B790-03iCT141,YT140198612-199907

FB,GRAY,GRAY

main71077-2B850-03iCT141,YT140198612-199907

VL,GRAY,GRAY

main71077-2B850-04iCT141,YT140198705-199907

*ST,NTUC,VL,BLUE,BLUE

main71077-91285-03iCT140,RT140,TT14#..WG198201-198311

PF,GRAY,GRAY

main71077-91285-05iCT140,RT140,TT14#..WG198201-198311

PF,BEIGE,BEIGE

main71077-91286-03iST141..WG..GEN198201-199907

KN,GRAY,GRAY

main71077-91286-05iST141..WG..GEN198201-199907

KN,BEIGE,BEIGE

main71077-91803-03iTT141..WG198311-198508

PF,GRAY,GRAY

main71077-91803-05iTT141..WG198311-198508

PF,BEIGE,BEIGE

71077WWIRE, REAR SEATBACK COVER

main90580-20007iCT140,RT140,TT14#..SED198206-198508

OD=2.0,L=1200

sub90580-20107

main90580-20033iCT140,RT140,TT14#..SED198201-198508

OD=2.0,L=700

sub90580-20107

main90580-20107iCT140,TT14#..SED198201-198206

OD=2.0,L=1210

main90580-20128iTT141..GL198201-198412

OD=2.0,L=450

sub90580-20165

main90580-20131iCT140,RT140,TT14#..SED198201-198508

OD=2.0,L=1020

sub90580-20107

main90580-20161iCT140,RT140,TT14#..SED198201-198508

OD=2.0,L=210

sub90580-20165

71460BCUSHION ASSY, REAR SEAT (FOR BENCH TYPE)

main71460-2B051-01iCT141198601-198612

VL,BLACK,BLACK

main71460-91814-03iCT140,TT14#..WG198201-198206

PF,GRAY,GRAY

main71460-91814-05iCT140,TT14#..WG198201-198206

PF,BEIGE,BEIGE

main71460-91816-03iCT140,RT140,TT14#..WG198201-199907

KN,GRAY,GRAY

main71460-91816-05iST141..WG..GEN198201-199907

KN,BEIGE,BEIGE

main71460-91822-03iCT140,RT140,TT14#..WG198206-198508

PF,GRAY,GRAY

main71460-91822-05iCT140,RT140,TT14#..WG198206-198508

PF,BEIGE,BEIGE

main71560-20010-03iCT140,RT140,TT14#..SED..(DLX,GL,TAX)198201-198508

FB,GRAY,GRAY

main71560-20010-04iCT140,RT140,TT14#..SED..(DLX,GL,TAX)198201-198508

FB,BLUE,BLUE

main71560-20010-05iCT140,RT140,TT14#..SED..(DLX,GL,TAX)198201-198508

FB,BEIGE,BEIGE

main71560-20030-03iST141..SED..GEN198201-199907

KN,GRAY,GRAY

main71560-20030-04iCT140,RT140,TT14#..SED..(3FC,4F,5F)..(DLX,STD,TAX)198201-198508

KN,BLUE,BLUE

main71560-20030-05iST141..SED..GEN198201-199907

KN,BEIGE,BEIGE

main71560-20040-03iCT140,TT14#..SED..(3FC,4F,5F)..(DLX,STD,TAX)198201-198206

PF,GRAY,GRAY

main71560-20040-04iCT140,TT14#..SED..(3FC,4F,5F)..(DLX,STD,TAX)198201-198206

PF,BLUE,BLUE

main71560-20040-05iCT140,TT14#..SED..(3FC,4F,5F)..(DLX,STD,TAX)198201-198206

PF,BEIGE,BEIGE

main71560-20060-03iTT140..3H,4H198201-198206

PF,GRAY,GRAY

main71560-20060-04iTT140..3H,4H198201-198206

PF,BLUE,BLUE

main71560-20060-05iTT140..3H,4H198201-198206

PF,BEIGE,BEIGE

main71560-20110-03iTT140..3H,4H198206-198310

PF,GRAY,GRAY

main71560-20110-04iTT140..3H,4H198206-198310

PF,BLUE,BLUE

main71560-20110-05iTT140..3H,4H198206-198310

PF,BEIGE,BEIGE

main71560-20120-03iCT140,RT140,TT14#..SED..(3FC,4F,5F)..(DLX,STD,TAX)198206-198508

PF,GRAY,GRAY

main71560-20120-04iCT140,RT140,TT14#..SED..(3FC,4F,5F)..(DLX,STD,TAX)198206-198508

PF,BLUE,BLUE

main71560-20120-05iCT140,RT140,TT14#..SED..(3FC,4F,5F)..(DLX,STD,TAX)198206-198508

PF,BEIGE,BEIGE

main71560-20610-03iCT141,YT140198612-199907

FB,GRAY,GRAY

main71560-20680-03iCT141,YT140198612-199907

VL,GRAY,GRAY

main71560-20680-J0iCT141..5F199306-199907

SINGAPORE TAXI,BLUE,BLUE

71480BBACK ASSY, REAR SEAT (FOR BENCH TYPE)

main71480-2B110-03iTT141..GL198201-198412

W/RECLINING,FB,GRAY,GRAY

main71480-2B110-04iTT141..GL198201-198412

W/RECLINING,FB,BLUE,BLUE

main71480-2B110-05iTT141..GL198201-198412

W/RECLINING,FB,BEIGE,BEIGE

main71480-2B210-03iCT140,RT140,TT14#..SED..(DLX,GL,TAX)198201-198508

W/O RECLINING,FB,GRAY,GRAY

main71480-2B210-04iCT140,RT140,TT14#..SED..(DLX,GL,TAX)198201-198508

W/O RECLINING,FB,BLUE,BLUE

main71480-2B210-05iCT140,RT140,TT14#..SED..(DLX,GL,TAX)198201-198508

W/O RECLINING,FB,BEIGE,BEIGE

main71480-2B230-03iST141..SED..GEN198201-199907

KN,GRAY,GRAY

main71480-2B230-04iCT140,RT140,TT14#..SED..(3FC,4F,5F)..(DLX,STD,TAX)198201-198508

KN,BLUE,BLUE

main71480-2B230-05iCT140,RT140,TT14#..SED..(3FC,4F,5F)..(DLX,STD,TAX)198201-199907

KN,BEIGE,BEIGE

main71480-2B240-03iCT140,TT14#..SED..(3FC,4F,5F)..(DLX,STD,TAX)198201-198206

PF,GRAY,GRAY

main71480-2B240-04iCT140,TT14#..SED..(3FC,4F,5F)..(DLX,STD,TAX)198201-198206

PF,BLUE,BLUE

main71480-2B240-05iCT140,TT14#..SED..(3FC,4F,5F)..(DLX,STD,TAX)198201-198206

PF,BEIGE,BEIGE

main71480-2B250-03iTT140..3H,4H198201-198206

PF,GRAY,GRAY

main71480-2B250-04iTT140..3H,4H198201-198206

PF,BLUE,BLUE

main71480-2B250-05iTT140..3H,4H198201-198206

PF,BEIGE,BEIGE

main71480-2B300-03iTT140..3H,4H198206-198310

PF,GRAY,GRAY

main71480-2B300-04iTT140..3H,4H198206-198310

PF,BLUE,BLUE

main71480-2B300-05iTT140..3H,4H198206-198310

PF,BEIGE,BEIGE

main71480-2B310-03iCT140,RT140,TT14#..SED..(3FC,4F,5F)..(DLX,STD,TAX)198206-198508

PF,GRAY,GRAY

main71480-2B310-04iCT140,RT140,TT14#..SED..(3FC,4F,5F)..(DLX,STD,TAX)198206-198508

PF,BLUE,BLUE

main71480-2B310-05iCT140,RT140,TT14#..SED..(3FC,4F,5F)..(DLX,STD,TAX)198206-198508

PF,BEIGE,BEIGE

main71480-2B461-01iCT141198601-198612

VL,BLACK,GRAY

main71480-2B860-03iCT141..5F199306-199907

SINGAPORE TAXI,VL,BLUE,GRAY

main71480-2B860-03iCT141,YT140198612-199907

VL,GRAY,GRAY

main71480-2B880-03iCT141,YT140198612-199907

FB,GRAY,GRAY

main71480-91813-03iCT140,TT14#..WG198201-198206

PF,GRAY,GRAY

main71480-91813-05iCT140,TT14#..WG198201-198206

PF,BEIGE,BEIGE

main71480-91817-03iST141..WG..GEN198201-199907

KN,GRAY,GRAY

main71480-91817-05iCT140,RT140,TT14#..WG198201-199907

KN,BEIGE,BEIGE

main71480-91823-03iCT140,RT140,TT14#..WG198206-198508

PF,GRAY,GRAY

main71480-91823-05iCT140,RT140,TT14#..WG198206-198508

PF,BEIGE,BEIGE

71611PAD, REAR SEAT CUSHION

main71611-14120iCT140,RT140,TT14#..SED198201-198210

main71611-14180iST141..SED..GEN198210-199907

main71611-20270iCT141198601-198612

main71611-20400iCT141,YT140198612-199907

main71611-91C01iRT142,ST141..WG..ARL198304-198612

main71611-91C02iST141..WG..GEN198201-199907

71650SPRING ASSY, REAR SEAT CUSHION

main71201-91C01iCT140,RT140,TT14#..WG198201-199907

main71650-14050iST141..SED..GEN198201-199907

main71650-20180iCT141198601-198612

main71650-20190iCT141,YT140198612-198910

sub71650-20200

main71650-20200iCT141,YT140198910-199111

sub71650-20210

main71650-20210iCT141,YT140199111-199907

main71650-91C01iRT142,ST141..WG..ARL198304-198612

71651BPAD, REAR SEATBACK(FOR BENCH TYPE)

main71507-14050iCT140,RT140,TT14#..SED..(DLX,GL,TAX)198201-198508

W/ARMREST

main71507-20040iCT141,YT140198601-199907

main71651-14210iCT140,RT140,TT14#..SED..(DLX,STD,TAX)198201-199907

W/O ARMREST,RECLINING

main71651-15020iCT140,RT140,TT14#..WG198201-199907

71670SPRING ASSY, REAR SEATBACK(FOR BENCH SEAT)

main71202-91C01iST141..WG..GEN198201-199907

main71670-14080iCT140,RT140,TT14#..SED..(DLX,STD,TAX)198201-199907

W/O ARMREST

main71670-14090iCT140,RT140,TT14#..SED..(DLX,GL,TAX)198201-198508

W/ARMREST

main71670-20242iCT141198601-198612

main71670-20320iCT141,YT140198612-199207

sub71670-20321

main71670-20321iCT141,YT140199207-199907

72693HOOK, REAR SEAT CUSHION LOCK

main72693-14030iCT141,YT140198201-199907

9011908160

main90119-08160

12 parts on this diagram · 6 diagrams in section
