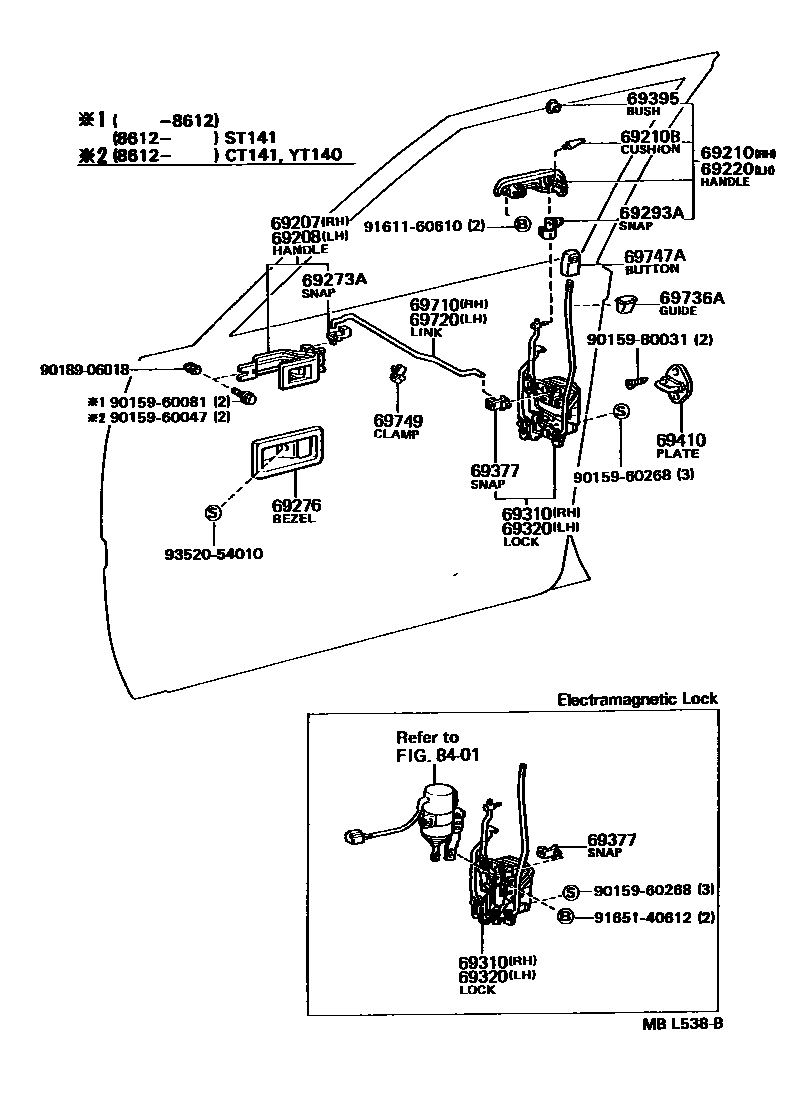

FRONT DOOR LOCK & HANDLE

69207HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-14040-01iCT140,RT140,ST141,TT14#198201-198305

BLACK,BLACK

main69205-14040-04iCT140,RT140,ST141,TT14#..SED198201-198305

BLUE,BLUE

main69205-14040-16iCT140,RT140,ST141,TT14#198201-198305

SADDLE BROWN,BROWN

main69205-14041-01iST141..CSX,DLX;CT141,RT142,ST141..SED..(CS,CSI,CXI,S,STD)198305-199907

BLACK,BLACK

main69205-14041-04iCT140,RT14#,ST141,TT14#..SED198305-198508

BLUE,BLUE

main69205-14041-16iST141..GEN198305-199907

SADDLE BROWN,BROWN

69208HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-14040-01iCT140,RT140,ST141,TT14#198201-198305

BLACK,BLACK

main69206-14040-04iCT140,RT140,ST141,TT14#..SED198201-198305

BLUE,BLUE

main69206-14040-16iCT140,RT140,ST141,TT14#198201-198305

SADDLE BROWN,BROWN

main69206-14041-01iCT140,RT14#,ST141,TT14#198305-199907

BLACK,BLACK

main69206-14041-04iCT140,RT14#,ST141,TT14#..SED198305-198508

BLUE,BLUE

main69206-14041-16iST141..GEN198305-199907

SADDLE BROWN,BROWN

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-20080iCT141,YT140198201-199907

69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)

main90541-03021iCT140,RT140,TT14#198201-198302

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-20080iCT14#,RT14#,ST141,TT14#198201-199907

69273ASNAP, DOOR INSIDE HANDLE ROD(FOR FRONT DOOR)

main69759-14050iCT140,RT140,ST141,TT14#198201-198305

RH

main69759-20060iCT14#,RT14#,ST141,TT14#198305-199907

RH

main69759-20070iCT14#,RT14#,ST141,TT14#198305-199907

LH

main69759-24070iCT140,RT140,ST141,TT14#198201-198305

LH

69276BEZEL, FRONT DOOR INSIDE HANDLE

main69277-16040-01iCT140,RT14#,ST141,TT14#198201-199907

BLACK,BLACK

sub69277-16040

sub69277-89104

main69277-16040-14iCT140,RT14#,ST141,TT14#..SED198201-198508

BLUE,BLUE

sub69277-16040

sub69277-89104

main69277-16040-26iST141..GEN198201-199907

SADDLE BROWN,BROWN

sub69277-16040

sub69277-89104

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-16010iCT14#,RT14#,ST141,TT14#198201-199907

RH

main69293-16020iCT14#,RT14#,ST141,TT14#198201-199907

LH

69310LOCK ASSY, FRONT DOOR, RH

main69310-20130iCT140,RT140,TT14#..GEN,PHL198201-198305

main69310-20131iCT141,ST141..GEN198305-199907

main69310-20140iTT141..RHD..GL198212-198305

W/*EL

main69310-20141iTT141..RHD..GL198305-198412

W/*EL

main69310-20150iTT14#..ME198201-198305

main69310-20151iTT14#..ME198305-198612

main69310-20180iTT141..GL..ME198212-198305

W/*EL

main69310-20181iTT141..GL..ME198305-198310

W/*EL

main69310-20190iST141..CSX198304-198305

main69310-20191iRT142,ST141..CSX,CXI198305-198612

main69310-20200iTT141..LHD..GL..GEN198212-198305

W/*EL

main69310-20201iTT141..LHD..GL..GEN198305-198310

W/*EL

69320LOCK ASSY, FRONT DOOR, LH

main69320-20150iCT140,RT140,TT14#..GEN,PHL198201-198305

main69320-20151iCT141,ST141..GEN198305-199907

main69320-20160iTT141..GL..GEN198212-198305

W/*EL

main69320-20161iTT141..GL..GEN198305-198412

W/*EL

main69320-20170iST141..CS,S198201-198305

main69320-20171iTT14#..ME198305-198612

main69320-20200iTT141..GL..ME198212-198305

W/*EL

main69320-20201iTT141..GL..ME198305-198310

W/*EL

sub69320-20210

main69320-20210iST141..CSX198304-198305

main69320-20211iRT142,ST141..CSX,CXI198305-198612

69377SNAP, FRONT DOOR LOCK CONTROL ROD

main69759-20040iCT14#,RT14#,ST141,TT14#198305-199907

LH,YELLOW

main69759-20050iCT14#,RT14#,ST141,TT14#198305-199907

RH,BROWN

main69759-24010iRT142,ST141,TT141..CSX,CXI,GL198305-198612

RH,W/*EL,WHITE

main69759-24020iRT142,ST141..CSX,CXI198305-198612

LH,W/*EL,BLUE

main69759-24050iCT140,RT140,ST141,TT14#198201-198305

LH

main69759-24060iCT140,RT140,ST141,TT14#198201-198305

RH

69395BUSH(FOR DOOR OUTSIDE HANDLE)

main90386-06030iCT14#,RT14#,ST141,TT14#198201-199907

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-14050iCT140,RT140,TT14#198201-198303

sub69410-20070

main69410-87001iCT14#,RT14#,ST141,TT14#198303-199907

69710LINK ASSY, FRONT DOOR OPEN CONTROL, RH

main69711-14050iCT140,RT140,ST141,TT14#198201-198305

main69711-14051iCT14#,RT14#,ST141,TT14#198305-199907

69720LINK ASSY, FRONT DOOR OPEN CONTROL, LH

main69712-14050iCT140,RT140,ST141,TT14#198201-198305

main69712-14051iCT14#,RT14#,ST141,TT14#198305-199907

69736AGUIDE, FRONT DOOR LOCK LINK

main69736-12030iRT142,ST141,TT14#198408-199907

main69736-12030iCT141,YT140198612-199907

W/FULL TRIM

main69736-22021iCT140,RT140,TT14#..DLX,GL,TAX198201-198408

69747ABUTTON, DOOR LOCKING(FOR FRONT DOOR)

main69741-20020-01iCT140,TT14#198201-198205

BLACK,BLACK

sub69741-20020

sub69741-32010

main69741-20020-14iCT140,TT14#..SED198201-198205

BLUE,BLUE

sub69741-20020

sub69741-32010

main69741-20020-36iCT140,TT14#198201-198205

SADDLE BROWN,BROWN

sub69741-20020

sub69741-32010

main69741-32010-01iCT141,YT140198205-199907

BLACK,BLACK

sub69741-32010

sub69741-90K00

main69741-32010-04iCT140,RT14#,ST141,TT14#..SED198205-199907

BLUE,BLUE

sub69741-32010

sub69741-90K00

main69741-32010-06iST141..GEN198205-199907

SADDLE BROWN,BROWN

sub69741-32010

sub69741-90K00

69749CLAMP, FRONT DOOR LOCK LINK

main69749-12010iCT140,RT140,TT14#198201-198207

main69749-20010iCT14#,RT14#,ST141,TT14#198305-199907

main69749-30020iCT140,RT140,ST141,TT14#198207-198305

8401

9015960047

main90159-60047

9015960081

main90159-60081

9015960268

main90159-60268

9015980031

main90159-80031

9018906018

main90189-06018

9161160610

main91611-60610

9165140612

main91651-40612

9352054010

main93520-54010

27 parts on this diagram · 1 diagram in section
