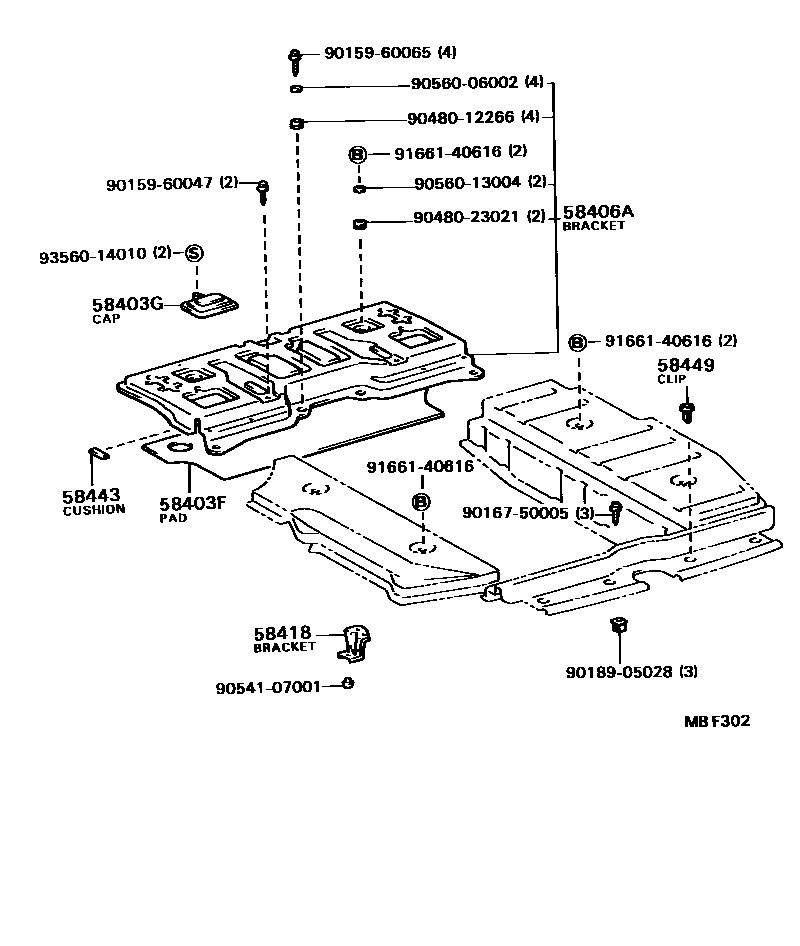

DECK BOARD & DECK TRIM COVER

58403FPAD, DECK BOARD SILENCER, NO.1

main58436-14010iRT142,ST141..WG..ARL198304-198612

58403GCAP, DECK BOARD SERVICE HOLE

main58487-14010iRT142,ST141..WG..ARL198304-198612

58406ABRACKET SUB-ASSY, DECK BOARD

main58406-14020iRT142,ST141..WG..ARL¥7,600198304-198612

58418BRACKET, DECK BOARD, NO.1

main58418-14030iRT142,ST141..WG..ARL¥680198304-198612

58443CUSHION, DECK BOARD, NO.1

main58443-14030iRT142,ST141..WG..ARL¥210198304-198612

58449CLIP, DECK BOARD

main90467-06017-03iST141..WG198304-198508

GRAY,GRAY

sub90467-06017¥110

main90467-06017-05iST141..WG198304-198508

BEIGE,BEIGE

sub90467-06017¥110

9015960047

main90159-60047¥190

9015960065

main90159-60065¥180

9016750005

main90167-50005¥120

9018905028

main90189-05028¥140

9048012266

main90480-12266

9048023021

main90480-23021

9054107001

main90541-07001¥200

9056006002

main90560-06002¥250

9056013004

main90560-13004

9166140616

main91661-40616¥80

9356014010

main93560-14010¥60

17 parts on this diagram · 1 diagram in section
