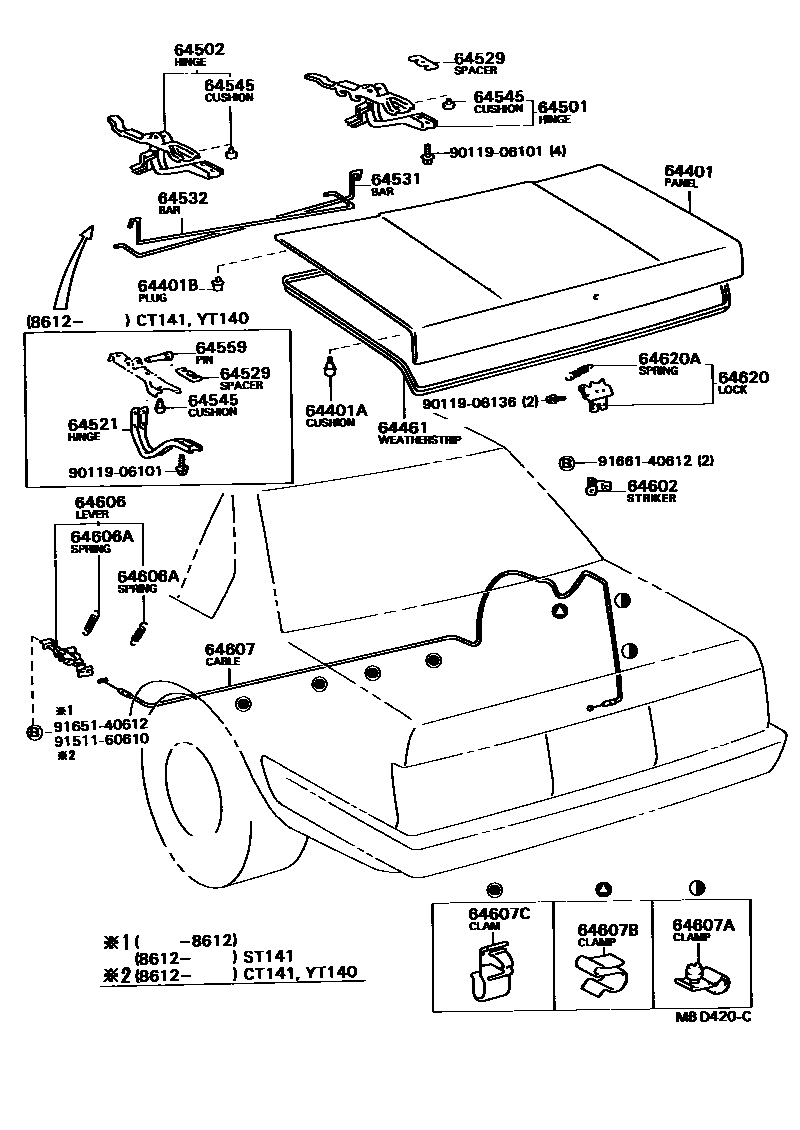

LUGGAGE COMPARTMENT DOOR & LOCK

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-20470iCT140,TT14#..SED198201-199102

sub64401-2B520

sub90541-06041

main64401-20510iCT140,RT14#,ST141,TT14#..SED198310-199907

sub64401-2B550

sub90541-06041

main64401-20510iCT140,RT140,ST141,TT14#..SED..(ARL,GEN,PHL)198201-198310

CKD

sub64401-2B550

sub90541-06041

main64401-2B520iCT141,YT140199102-199907

64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main90541-09021iCT14#,RT14#,ST141,TT14#..SED198201-199907

sub90541-09068

64401BPLUG, HOLE(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main90541-06076iCT141,YT140198201-199907

sub90541-06056

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-20130iCT14#,RT14#,ST141,TT14#..SED198201-199907

64501HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, RH

main64510-20060iCT14#,RT14#,ST141,TT14#..SED198201-199907

64502HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, LH

main64520-20060iCT14#,RT14#,ST141,TT14#..SED198201-199907

64521ARM, LUGGAGE COMPARTMENT DOOR HINGE

main64521-20120iCT141,YT140198612-198703

main64521-20120iCT141,YT140198703-199907

RH

main64522-20050iCT141,YT140198703-199907

LH

64529SPACER, LUGGAGE COMPARTMENT DOOR HINGE

main64529-20010iCT14#,RT14#,ST141,TT14#..SED198201-199907

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-20080iCT14#,RT14#,ST141,TT14#..SED198201-198612

main64531-20140iRT142,ST141..SED..ARL198508-198612

W/SPOILER

main64531-20200iCT141,YT140198612-199907

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-20080iCT14#,RT14#,ST141,TT14#..SED198201-198612

main64532-20140iRT142,ST141..SED..ARL198508-198612

W/SPOILER

main64532-20200iCT141,YT140198612-199907

64545CUSHION, LUGGAGE DOOR HINGE

main90541-07007iCT14#,RT14#,ST141,TT14#..SED198201-199907

64559PIN, LUGGAGE DOOR HINGE

main64559-20030iCT141,YT140198612-199907

64602STRIKER SUB-ASSY, LUGGAGE COMPARTMENT DOOR LOCK

main64620-22030iCT141,YT140198201-199907

64606LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN

main64606-14030iTT140..4H..ME198201-199907

main64606-14050iCT140,RT140,TT14#..SED..LHD..(DLX,GL,TAX)198201-199907

main64606-20050iCT141198601-198612

64606ASPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER)

main90506-09004iRT142,ST141..CSX,CXI198201-199907

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-14060iTT140..4H..ME198201-198703

sub64607-20350

main64607-14190iCT141..5F198201-198703

sub64607-91D01

main64607-20320iCT141,YT140..RHD198703-199907

main64607-20350iCT141,YT140..LHD198703-199907

64607ACLAMP, NO.1(FOR LUGGAGE DOOR LOCK CONTROL CABLE)

main69749-12010iTT140..4H..ME198201-199907

64607BCLAMP, NO.2(FOR LUGGAGE DOOR LOCK CONTROL CABLE)

main90463-05005iTT140..4H..ME198201-199907

64607CCLAMP, NO.3(FOR LUGGAGE DOOR LOCK CONTROL CABLE)

main90467-12009iTT140..4H..ME198201-199907

64620LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64610-14050iCT140,RT14#,ST141,TT14#..SED..(CS,CSI,DLX,S,STD,TAX)198201-199907

W/O CANCEL

main64610-14060iRT142,ST141..CSX,CXI198304-198612

sub64610-20130

main64610-14060iRT142,ST141..CSX,CXI198201-198612

W/CANCEL

sub64610-20130

main64610-20130iCT141,YT140198612-199907

W/CANCEL

main64610-20140iCT141,YT140198612-199907

64620ASPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK)

main90506-09001iTT140..4H..ME198304-198508

main90506-09001iCT140,RT140,ST141,TT14#..SED..(CS,CSX,DLX,GL,TAX)198201-199907

W/CANCEL

main90506-10028iCT140,RT14#,ST141,TT14#..SED..(CS,CSI,DLX,S,STD,TAX)198201-199907

W/O CANCEL

main90506-10028iCT141,YT140198612-199907

9011906101

main90119-06101

9011906136

main90119-06136

9151160610

main91511-60610

9165140612

main91651-40612

9166140612

main91661-40612

26 parts on this diagram · 1 diagram in section
