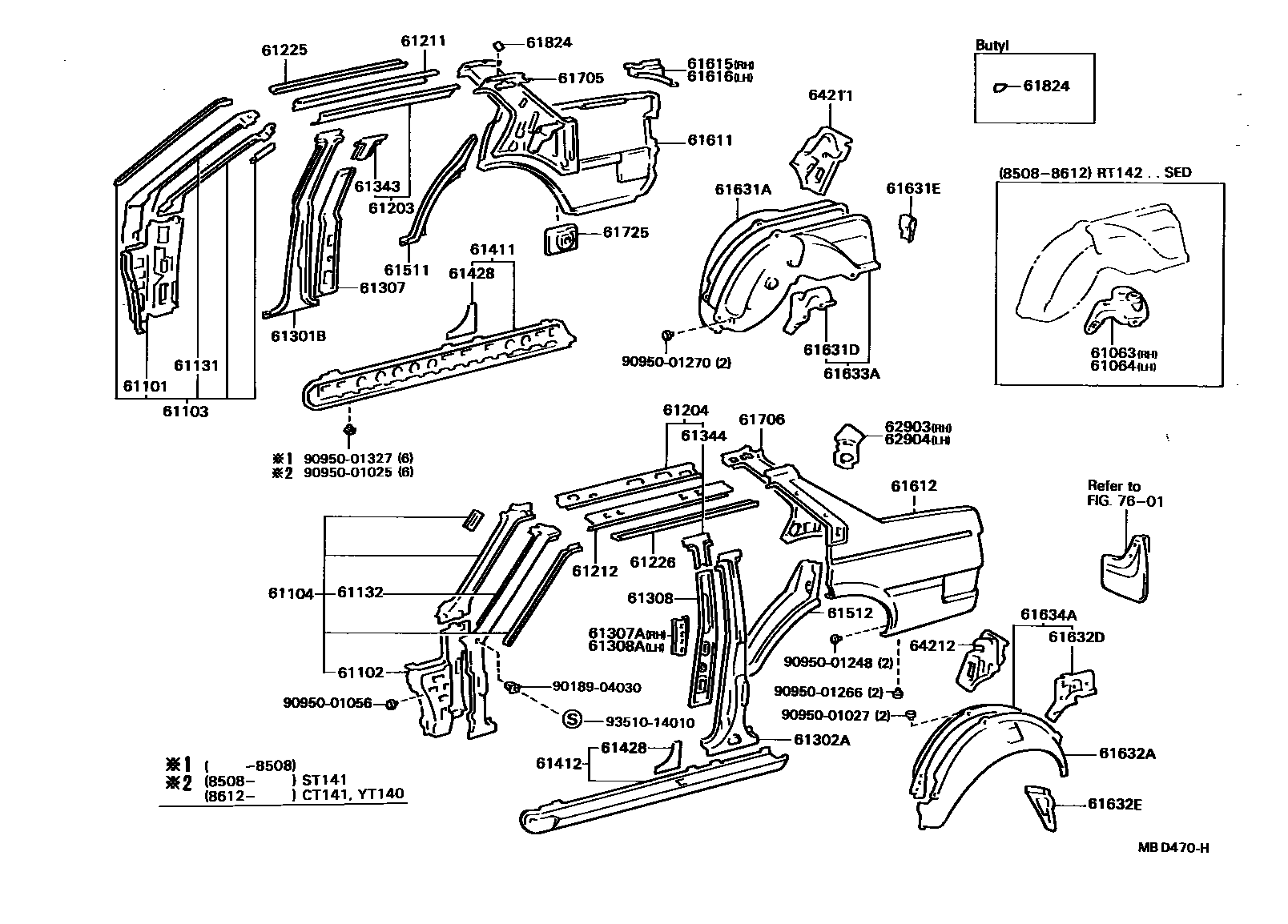

SIDE MEMBER

0001 1 0002 1

61063BRACKET, SUB-ASSY, REAR SHOCK ABSORBER, RH

main61063-14030iRT142..SED¥3,110198508-198612

61064BRACKET, SUB-ASSY, REAR SHOCK ABSORBER, LH

main61064-14030iRT142..SED¥3,110198508-198612

61101PANEL SUB-ASSY, COWL SIDE, RH

main61101-14090iCT141,YT140..LHD198201-199907

main61101-14100iCT141¥8,000198508-198612

main61101-14100iCT140,TT14#..RHD¥8,000198201-198508

W/POLE TYPE ANTENNA

main61101-20050iRT142,ST141..CSX,CXI¥7,900198201-199907

61102PANEL SUB-ASSY, COWL SIDE, LH

main61102-14090iCT140,RT142,ST141,TT14#..RHD¥7,900198201-199907

main61102-20050iCT140,RT140,TT14#..LHD198201-198508

W/POLE TYPE ANTENNA

main61102-20060iCT140,RT140,ST141,TT141..LHD198201-199907

61103PILLAR SUB-ASSY, FRONT BODY, RH

main61021-14170iCT140,TT14#..RHD¥49,200198201-198508

W/POLE TYPE ANTENNA

main61021-14170iCT141¥49,200198601-198612

main61021-14190iCT140,RT140,TT14#..LHD¥49,600198201-199907

main61021-20170iTT141..RHD..GL¥43,800198212-198508

W/*PW & POLE TYPE ANTENNA

main61021-20170iCT140,TT14#..SED..RHD¥43,800198201-198612

main61021-20190iRT142,ST141,TT141..RHD..(CSX,CXI,GL)198212-198508

W/*PW

main61021-20190iRT142,ST141..CSX,CXI198508-198612

main61021-20240iTT141..LHD..GL198212-198310

W/*PW

main61021-20430iCT141,YT140..LHD¥45,200198612-199907

main61021-20440iCT141,YT140..RHD¥45,200198612-199907

W/ANTENNA

main61021-20450iCT141,YT140..RHD¥45,200198612-199907

61104PILLAR SUB-ASSY, FRONT BODY, LH

main61022-14190iRT142,ST141..CS,CSI,S¥49,200198201-198612

main61022-14200iRT142,ST141..CSX,CXI¥49,200198508-198612

main61022-14200iRT142,ST141,TT141..RHD..(CSX,CXI,GL)¥49,200198212-198508

W/*PW

main61022-20240iCT140,RT140,TT14#..LHD198201-198508

W/POLE TYPE ANTENNA

main61022-20240iTT141..LHD..GL198212-198310

W/*PW & POLE TYPE ANTENNA

main61022-20260iCT140,RT140,TT141..LHD¥43,800198201-199907

main61022-20290iTT141..LHD..GL198212-198310

W/*PW

main61022-20380iCT141,YT140..RHD¥45,200198612-199907

main61022-20390iCT141,YT140..LHD¥45,200198612-199907

main61022-20400iCT141,YT140..LHD¥45,200198612-199907

W/ANTENNA

main61022-20550iCT141..5F¥45,200199306-199907

W/FR-LH *PW

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61027-14120iRT142,ST141..CS,CSI,S¥19,000198201-199907

main61027-14130iRT142,ST141,TT141..CSX,CXI,GL¥18,800198212-198508

W/*PW

sub61027-14120¥19,000

main61027-14130iRT142,ST141..CSX,CXI¥18,800198508-198612

sub61027-14120¥19,000

main61027-20060iCT141,YT140¥21,500198612-199907

main61027-20070iCT141,YT140..RHD¥21,500198612-199907

W/ANTENNA

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61028-14100iCT140,RT140,TT14#¥19,000198201-199907

main61028-14110iRT142,ST141..CSX,CXI¥18,800198508-198612

sub61028-14100¥19,000

main61028-14110iRT142,ST141,TT141..CSX,CXI,GL¥18,800198212-198508

W/*PW

sub61028-14100¥19,000

main61028-20060iCT141,YT140¥21,500198612-199907

main61028-20070iCT141,YT140..LHD¥21,500198612-199907

W/ANTENNA

main61028-20080iCT141..5F¥21,500199306-199907

W/*PW

61203RAIL SUB-ASSY, ROOF SIDE, INNER RH

main61203-20110iCT14#,RT14#,ST141,TT14#..SED198201-198612

main61203-20120iCT141,YT140¥3,840198612-199907

main61203-91C01iCT140,RT14#,ST141,TT14#..WG¥4,650198201-199907

61204RAIL SUB-ASSY, ROOF SIDE, INNER LH

main61204-20110iCT14#,RT14#,ST141,TT14#..SED198201-198612

main61204-20120iCT141,YT140¥3,840198612-199907

main61204-91C01iCT140,RT14#,ST141,TT14#..WG¥4,650198201-199907

61211RAIL, ROOF SIDE, OUTER RH

main61211-20120iCT14#,RT14#,ST141,TT14#..SED¥4,520198201-198612

main61211-20170iCT141,YT140¥4,720198612-199907

main61211-91C01iCT140,RT14#,ST141,TT14#..WG¥8,000198201-199907

61212RAIL, ROOF SIDE, OUTER LH

main61212-20120iCT14#,RT14#,ST141,TT14#..SED¥4,520198201-198612

main61212-20170iCT141,YT140¥4,720198612-199907

main61212-91C01iCT140,RT14#,ST141,TT14#..WG¥8,000198201-199907

61225CHANNEL, ROOF DRIP, CENTER RH

main61265-20030iCT14#,RT14#,ST141,TT14#..SED¥3,520198201-198612

main61265-20060iCT141,YT140¥4,320198612-199907

main61265-91C01iCT140,RT14#,ST141,TT14#..WG¥2,800198201-199907

61226CHANNEL, ROOF DRIP, CENTER LH

main61266-20030iCT14#,RT14#,ST141,TT14#..SED¥3,520198201-198612

main61266-20060iCT141,YT140¥4,320198612-199907

main61266-91C01iCT140,RT14#,ST141,TT14#..WG¥2,800198201-199907

61301BPILLAR, CENTER BODY, OUTER RH

main61301-14060iCT141¥31,700198201-199907

main61301-20250iCT141,YT140¥31,900198612-199008

sub61301-20340¥31,600

sub84231-16060¥1,070

sub90119-06390¥70

main61301-20340iCT141,YT140¥31,600199008-199907

61302APILLAR, CENTER BODY, OUTER LH

main61302-14060iCT141¥31,700198201-199907

main61302-20310iCT141,YT140¥31,900198612-199008

sub61302-20450¥31,600

sub84231-16060¥1,070

sub90119-06390¥70

main61302-20450iCT141,YT140¥31,600199008-199907

61307PILLAR SUB-ASSY, CENTER BODY, INNER RH

main61343-14050iCT14#,RT14#,ST141,TT14#¥3,830198201-199907

61307AREINFORCEMENT, CENTER BODY PILLAR, INNER RH

main61337-14020iCT141,YT140¥1,630198201-199907

61308PILLAR SUB-ASSY, CENTER BODY, INNER LH

main61344-14050iCT14#,RT14#,ST141,TT14#¥3,830198201-199907

61308AREINFORCEMENT, CENTER BODY PILLAR, INNER LH

main61338-14010iCT141,YT140¥1,630198201-199907

61343PILLAR, CENTER BODY, INNER UPPER RH

main61341-14040iCT14#,RT14#,ST141,TT14#¥1,670198201-198612

main61341-20090iCT141,YT140¥1,860198612-199907

61344PILLAR, CENTER BODY, INNER UPPER LH

main61342-14040iCT14#,RT14#,ST141,TT14#¥1,670198201-198612

main61342-20090iCT141,YT140¥1,860198612-199907

61411PANEL, ROCKER, OUTER RH

main61401-14020iCT140,RT14#,ST141,TT14#¥22,100198201-198701

sub61401-20380¥30,600

main61401-20140iCT140..RHD;CT140..TAX198201-198310

TAXI SPEC

sub61401-20150

main61401-20150iCT141198601-198612

sub61401-20380¥30,600

main61401-20150iTT140..3H,4H198201-198312

TAXI SPEC

sub61401-20380¥30,600

main61401-20220iCT141,YT140¥30,700198612-199008

sub61401-20380¥30,600

main61401-20380iCT141,YT140¥30,600199008-199907

61412PANEL, ROCKER, OUTER LH

main61402-14020iCT140,RT14#,ST141,TT14#¥22,100198201-198805

sub61402-20380¥30,600

main61402-20140iCT140..RHD;CT140..TAX198201-198310

TAXI SPEC

sub61402-20150

main61402-20150iCT141198601-198612

sub61402-20380¥30,600

main61402-20150iTT140..3H,4H198201-198312

TAXI SPEC

sub61402-20380¥30,600

main61402-20220iCT141,YT140¥30,700198612-199008

sub61402-20380¥30,600

main61402-20380iCT141,YT140¥30,600199008-199907

61428GUSSET, ROCKER OUTER PANEL

main61428-20010iCT140..RHD;CT140,TT140..SED..(3H,4H,5F)..(STD,TAX)¥260198201-198312

TAXI SPEC

main61428-20010iCT141¥260198601-199907

61511PILLAR, QUARTER LOCK, RH

main61501-91255iCT140,RT140,TT14#..WG¥7,000198201-198210

sub61501-91256¥6,900

main61501-91256iCT140,RT140,TT14#..WG¥6,900198210-198508

main61501-91257iST141..WG..GEN¥6,900198508-199907

main61511-20906iCT141¥9,300198601-199008

sub61511-20907¥9,600

main61511-20907iCT140,RT14#,ST141,TT14#..SED¥9,600198201-199907

sub61511-20910¥9,400

sub82223-20120¥320

sub84231-16060¥1,070

sub90119-06390¥70

main61511-20909iCT141,YT140¥9,600199008-199907

sub61511-20910¥9,400

61512PILLAR, QUARTER LOCK, LH

main61502-91255iCT140,RT140,TT14#..WG¥7,000198201-198210

sub61502-91256¥6,900

main61502-91256iCT140,RT140,TT14#..WG¥6,900198210-198508

main61502-91257iST141..WG..GEN¥6,900198508-199907

main61512-20906iYT140¥9,300198601-199008

sub61512-20907¥9,600

main61512-20907iCT140,RT14#,ST141,TT14#..SED¥9,600198201-199907

sub61512-20910¥9,400

sub82223-20120¥320

sub84231-16060¥1,070

sub90119-06390¥70

main61512-20909iCT141,YT140¥9,600199008-199907

sub61512-20910¥9,400

61611PANEL, QUARTER, RH

main61601-20904iCT140,RT140,TT14#..WG198201-198508

main61601-20905iTT141..WG198201-198508

W/FUEL OPENER

main61601-20907iST141..WG¥59,100198304-198505

main61601-20916iST141..WG..GEN¥59,800198508-199907

main61611-20640iCT14#,RT14#,ST141,TT14#..SED¥41,600198201-198612

main61611-2B010iCT141,YT140¥42,900198612-199008

sub61611-2B270¥42,500

main61611-2B270iCT141,YT140¥42,500199008-199907

61612PANEL, QUARTER, LH

main61602-20900iCT140,RT140,ST141,TT14#..WG¥59,400198201-198508

main61602-20918iST141..WG..GEN¥59,800198508-199907

main61612-20420iRT142,ST141..SED..(CS,CSI,S)¥42,500198201-199907

main61612-2B070iCT141,YT140¥42,900198612-199008

sub61612-2B490¥42,500

main61612-2B490iCT141,YT140¥42,500199008-199907

61615TROUGH, LUGGAGE COMPARTMENT OPENING, RH

main61621-20040iCT14#,RT14#,ST141,TT14#..SED¥1,870198201-199907

61616TROUGH, LUGGAGE COMPARTMENT OPENING, LH

main61622-20040iCT141,YT140¥1,870198201-199907

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61605-20020iST141..SED..GEN¥20,100198201-198512

sub61605-20030¥20,200

main61605-20030iST141..SED..ARL¥20,200198304-199907

main61631-91260iST141..WG..GEN¥13,300198201-199907

61631DREINFORCEMENT, QUARTER WHEEL HOUSE, RH

main61675-14030iRT142,ST141..WG..ARL¥1,690198201-199907

61631EGUSSET, QUARTER WHEEL HOUSE, REAR RH

main61645-14040iRT142,ST141..ARL¥540198201-199907

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61632-20080iRT142,ST141..WG..ARL¥14,800198201-199907

main61632-20090iCT141,YT140¥11,800198304-199907

61632DREINFORCEMENT, QUARTER WHEEL HOUSE, LH

main61676-14020iRT142,ST141..WG..ARL¥1,690198201-199907

61632EGUSSET, QUARTER WHEEL HOUSE, REAR LH

main61646-14050iCT141,YT140¥540198201-199907

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61603-91790iCT140,RT140,TT14#..WG¥23,400198201-199907

main61607-14900iCT141,ST141..SED..GEN198201-198612

main61607-20904iCT141,YT140¥22,400198612-199907

main61607-91C01iRT142,ST141..WG..ARL¥20,100198304-198612

61634APANEL, QUARTER WHEEL HOUSE, INNER LH

main61604-91790iCT140,RT140,TT14#..WG¥23,400198201-199907

main61608-14902iCT141,YT140¥23,900198201-199907

main61608-91C01iRT142,ST141..WG..ARL¥20,100198304-198612

61705PANEL SUB-ASSY, ROOF SIDE, INNER RH

main61705-20100iCT140,TT14#..SED¥12,300198201-198310

W/O SEAT BELT ANCHOR

main61705-20100iCT141¥12,300198601-198612

main61705-20130iST141..SED..GEN198508-199907

main61705-20130iCT140,RT140,TT14#..SED..(GEN,PHL)198201-198508

W/SEAT BELT ANCHOR

main61705-20220iCT141,YT140¥13,100198612-199907

main61705-20230iCT141,YT140..LHD¥13,200198612-199210

W/SEAT BELT ANCHOR

sub61705-20310¥12,400

main61705-20310iCT141,YT140¥12,400199210-199907

W/SEAT BELT ANCHOR

main61705-91266iTT14#..WG..RHD198201-198508

W/SEAT BELT ANCHOR

main61705-91C01iST141..WG..GEN¥35,400198508-199907

main61705-91C01iCT140,RT140,TT14#..WG¥35,400198201-198508

W/O SEAT BELT ANCHOR

main61705-91C02iRT142,ST141..WG..ARL¥34,400198304-198612

61706PANEL SUB-ASSY, ROOF SIDE, INNER LH

main61706-20090iCT141¥12,300198601-198612

main61706-20090iCT140,TT14#..SED¥12,300198201-198310

W/O SEAT BELT ANCHOR

main61706-20130iST141..SED..GEN198508-199907

main61706-20130iCT140,RT140,TT14#..SED198201-198508

W/SEAT BELT ANCHOR

main61706-20210iCT141,YT140¥13,100198612-199907

main61706-20220iCT141,YT140..LHD¥13,200198612-199210

W/SEAT BELT ANCHOR

sub61706-20300¥12,400

main61706-20300iCT141,YT140¥12,400199210-199907

W/SEAT BELT ANCHOR

main61706-91266iTT14#..WG..RHD198201-198508

W/SEAT BELT ANCHOR

main61706-91C01iCT140,RT140,TT14#..WG¥32,500198201-198508

W/O SEAT BELT ANCHOR

main61706-91C01iST141..WG..GEN¥32,500198508-199907

main61706-91C02iRT142,ST141..WG..ARL¥32,500198304-198612

61725BOX, FUEL INLET

main61709-20050iCT141¥2,450198201-199907

main61725-20080iRT142,ST141..CSX,CXI¥2,260198201-199907

W/FUEL LID OPENER

main61725-20080iRT142,ST141..CSX,CXI¥2,260198508-198612

61824PLATE, NOISE CONTROL, NO.1

main61824-20030iCT140,RT14#,ST141,TT14#..SED198201-198612

T=0.8

main61824-20050iST141..SED..GEN¥750198301-199907

BUTYL TAPE,T=2.0

main61824-20090iCT141,YT140¥760198612-199907

62903DUCT SUB-ASSY, QUARTER VENTILATOR, RH

main62903-20010iCT14#,RT14#,ST141,TT14#..SED¥2,660198201-199907

62904DUCT SUB-ASSY, QUARTER VENTILATOR, LH

main62904-20010iCT14#,RT14#,ST141,TT14#..SED¥2,660198201-199907

64211STRAINER, PACKAGE TRAY TO FLOOR, RH

main64211-14080iCT140,RT140,TT14#..SED¥1,970198201-198907

sub64211-20150¥2,160

main64211-14090iTT141..GL198201-198412

W/RECLINING RR SEAT

main64211-20150iCT141,YT140¥2,160198907-199907

64212STRAINER, PACKAGE TRAY TO FLOOR, LH

main64212-14080iCT141,ST141..SED..GEN¥1,970198201-198907

sub64212-20150¥2,160

main64212-14090iTT141..GL198201-198412

W/RECLINING RR SEAT

main64212-20150iCT141,YT140¥2,160198907-199907

7601

9018904030

main90189-04030¥130

9095001025

main90950-01025¥240

9095001027

main90950-01027¥160

9095001056

main90950-01056¥230

9095001248

main90950-01248¥130

9095001266

main90950-01266¥220

9095001270

main90950-01270¥230

9095001327

main90950-01327¥360

9351014010

main93510-14010¥90

57 parts on this diagram · 2 diagrams in section
