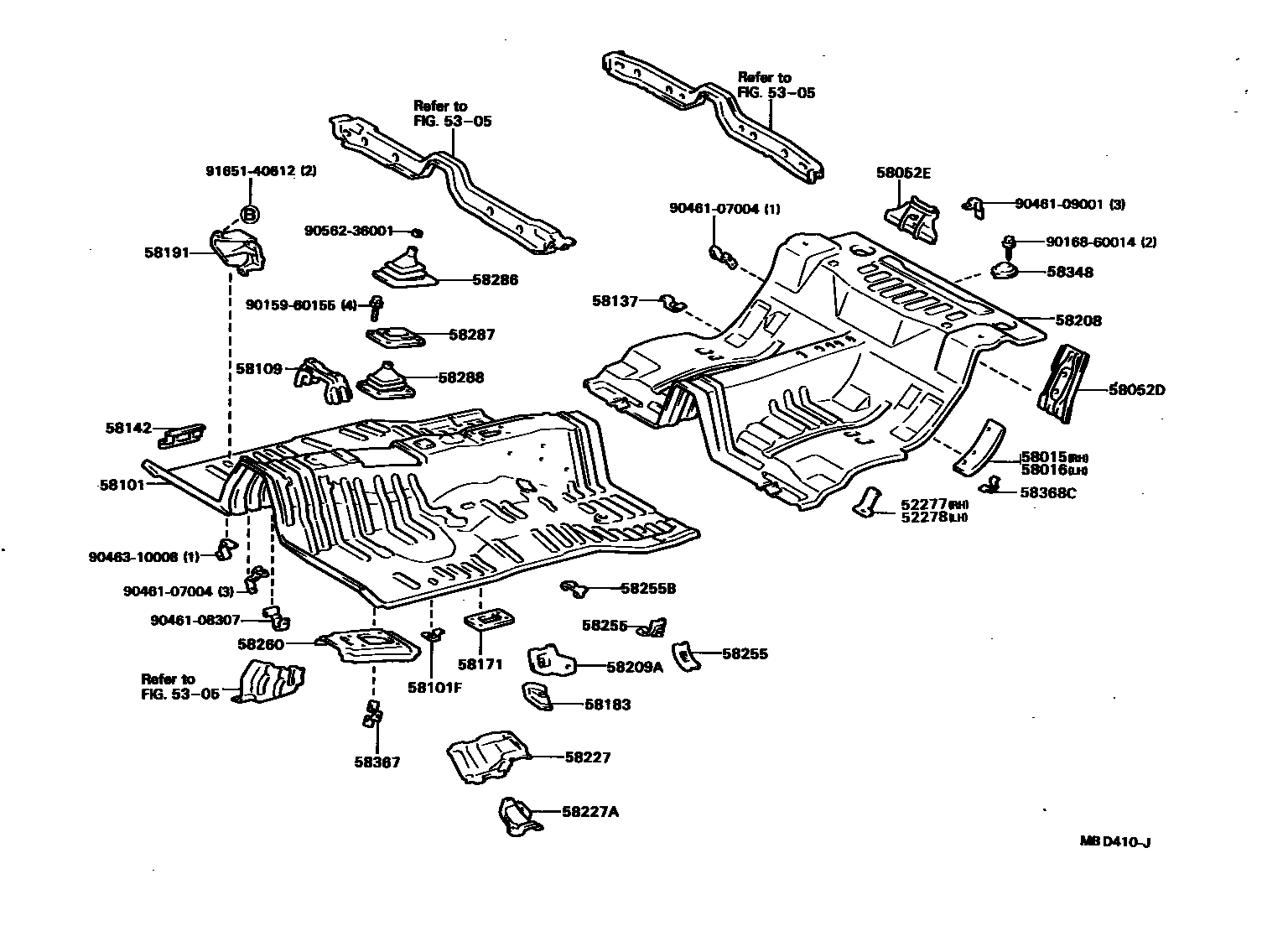

FLOOR PAN & LOWER BACK PANEL

0001 1(8612- )YT140 0005 1 0006 1 0008 1

52277RETAINER, REAR SUSPENSION MEMBER LOWER STOPPER, RH

main52277-14010iRT142..SED198508-198612

52278RETAINER, REAR SUSPENSION MEMBER LOWER STOPPER, LH

main52278-14010iRT142..SED198508-198612

5305

58015REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, RH

main57443-91C02iCT140,RT140,TT14#..WG198201-199907

main58015-20011iCT141,ST141..SED¥1,670198201-199907

58016REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, LH

main57443-91C02iCT140,RT140,TT14#..WG198201-199907

main58016-20011iCT140,RT140,TT14#..SED¥1,600198201-199907

58052DEXTENSION, CENTER FLOOR TO PACKAGE TRAY

main64217-14030iCT141,ST141..SED..GEN¥660198508-199907

RH

main64217-14030iCT140,RT140,TT14#..SED¥660198201-198508

RH,W/O RECLINING RR SEAT

main64217-14050iTT141..GL198201-198412

RH,W/RECLINING RR SEAT

main64218-14020iCT140,RT140,TT14#..SED¥660198201-198508

LH,W/O RECLINING RR SEAT

main64218-14020iCT141,ST141..SED..GEN¥660198508-199907

LH

main64218-14040iTT141..GL198201-198412

LH,W/RECLINING RR SEAT

58052EEXTENSION, CENTER FLOOR TO BRACE

main64227-14040iCT140,RT140,TT14#..SED¥550198201-198508

W/O RECLINING RR SEAT

main64227-14040iCT141,ST141..SED..GEN¥550198508-199907

main64227-14050iTT141..GL198201-198412

W/RECLINING RR SEAT

58101PAN SUB-ASSY, FRONT FLOOR

main58111-20080iTT140..3H,4H198201-198310

main58111-24010iCT141,YT140¥39,300198201-199907

58101FBRACKET, MOUNTING, FLOOR, NO.1

main58131-12020iCT141¥230198201-199907

sub58131-14030¥340

58109BRACKET SUB-ASSY, INSTRUMENT PANEL BRACE MOUNTING

main58193-24010iCT141,YT140¥1,470198201-199907

58137BRACKET, CENTER FLOOR HEAT INSULATOR, NO.4

main58236-14010iCT141,YT140¥680198201-199907

58142REINFORCEMENT, FLOOR SIDE MEMBER TO FLOOR PAN

main58141-24010iCT14#,RT14#,ST141,TT14#¥400198201-199907

58171REINFORCEMENT, PARKING BRAKE BASE

main58107-20030iTT140..3H,4H198201-198310

main58171-24010iCT14#,RT14#,ST141,TT14#..3FC,4F,4FC,5F¥400198201-199907

58183BRACKET, FRONT SEAT MOUNTING, INNER

main58183-20030iTT140..3H,4H¥1,270198201-198310

RH

main58183-24010iCT141,YT140¥1,960198201-199907

RH

main58184-20030iTT140..3H,4H¥1,270198201-198310

LH

main58184-24010iCT141,YT140¥1,960198201-199907

LH

58191FOOTREST, FRONT FLOOR

main58191-24010iCT140,RT142,TT14#..RHD..(3FC,4F,4FC,5F)¥1,800198201-199907

main58192-14020iCT141,YT140..LHD¥2,170198201-199907

58208PAN, CENTER FLOOR

main58211-14080iST141..S¥34,200198201-199907

main58211-14100iRT142..SED198508-198612

main58211-91C01iST141..WG..GEN¥23,000198201-199907

58209AREINFORCEMENT SUB-ASSY, DRIVE SHAFT CENTER SUPPORT

main58205-14020iRT140,TT14#¥2,960198201-199907

RH

main58277-24010iCT141¥1,220198201-199907

RH

main58278-24010iCT141,RT142,ST141¥1,280198201-199907

LH

58227PLATE, AIR GUIDE, OUTSIDE

main58226-24010iCT140,RT140,TT14#¥1,600198201-199907

RH

main58227-24010iCT141,ST141..GEN¥1,600198201-199907

LH

58227APLATE, AIR GUIDE

main58228-24010iCT141,YT140¥680198201-199907

RH

main58229-24010iCT141,ST141..GEN¥680198201-199907

LH

58255CLAMP, PARKING BRAKE CABLE, NO.1

main58038-91C01iST141..WG..GEN¥1,970198201-199907

RH

main58039-91C01iCT140,RT140,TT14#..WG¥1,970198201-199907

LH

main58207-14020iCT141,ST141..SED¥580198201-199907

RH

main58207-14030iRT142..SED198508-198612

RH

main58208-14020iRT142,ST141..WG..ARL¥580198201-199907

LH

main58208-14030iRT142..SED198508-198612

LH

58255BBRACKET, PARKING BRAKE CABLE GUIDE, NO.1

main58264-14010iCT14#,RT14#,ST141,TT14#¥660198201-199907

58260COVER ASSY, TRANSMISSION, FRONT

main58281-14080iCT141,YT140¥1,120198201-199907

main58281-14090iRT142..5F¥1,280198408-198612

main58281-20070iTT140..3H,4H198201-198310

main58281-24020iRT142,ST141,TT141..ATM¥1,140198201-198612

58286BOOT, SHIFT & SELECT LEVER, NO.1

main58280-14050iRT142..5F¥4,230198408-198612

main58286-14060iCT141,YT140¥2,030198201-199907

58287RETAINER, SHIFT LEVER BOOT

main58287-14040iCT140,RT140,TT14#..4F,5F¥650198201-199907

main58287-20050iST141..MTM¥680198304-198612

58288SEAL, SHIFT LEVER BOOT

main58288-14060iRT142..5F¥1,840198408-199907

main58288-14070iCT141,YT140¥1,680198201-199907

58348COVER, REAR ABSORBER SERVICE HOLE

main58348-14020iCT140,RT140,TT14#..SED¥1,960198201-199907

58367BRACKET, FUEL TUBE CLAMP

main58266-14040iCT14#,RT140,ST141,TT14#¥320198201-199907

58368CBRACKET, FUEL TUBE, NO.3

main58267-14030iRT142..SED198508-198612

9015960155

main90159-60155¥110

9016860014

main90168-60014¥120

9046107004

main90461-07004¥550

9046108307

main90461-08307¥530

9046109001

main90461-09001¥610

9046310008

main90463-10008¥600

9056236001

main90562-36001¥280

9165140612

main91651-40612¥70

36 parts on this diagram · 4 diagrams in section
