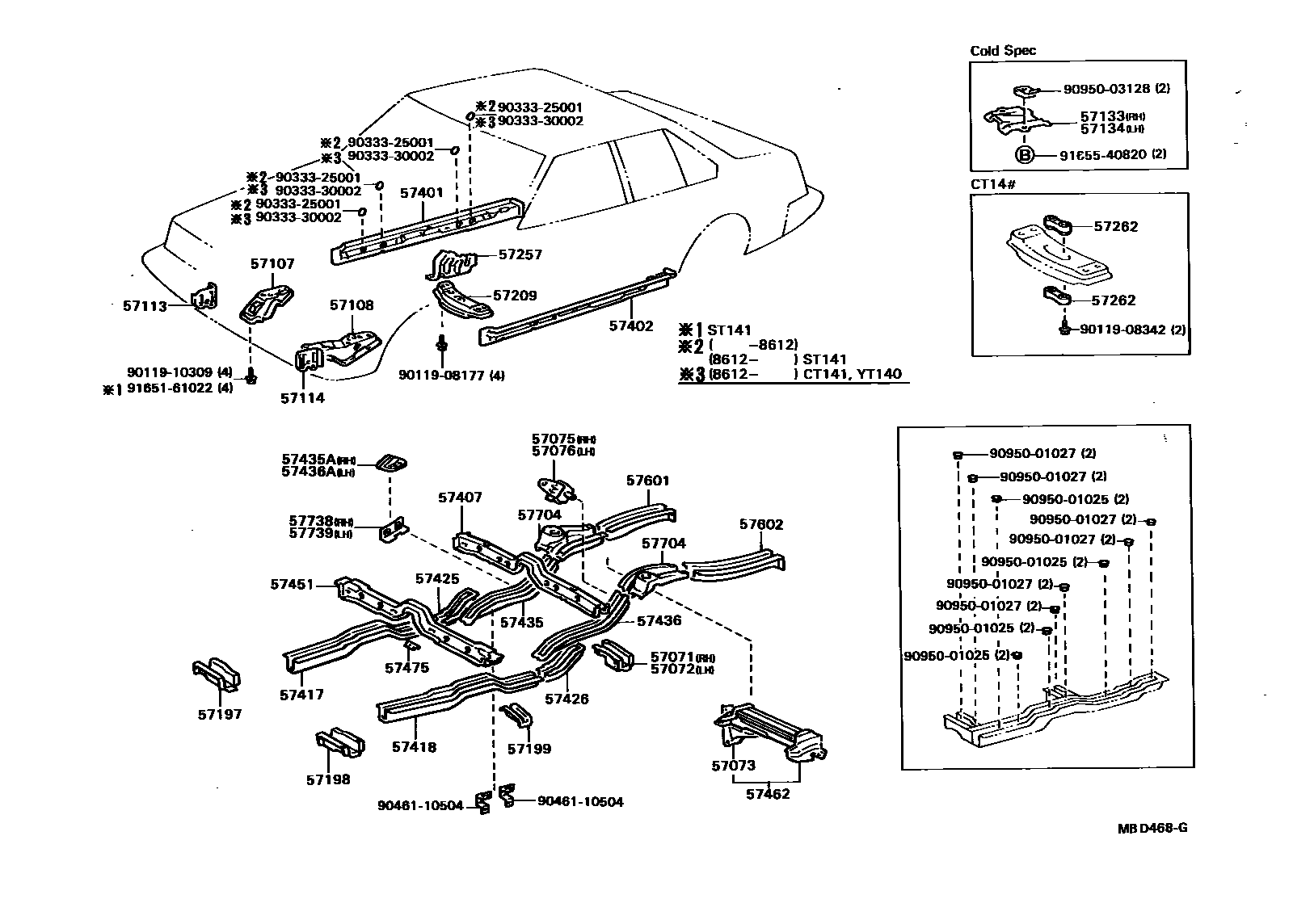

FLOOR SIDE MEMBER

0001 1(8612- )YT140 0006 1 0007 1 0008 1

57071BOX SUB-ASSY, TORQUE, REAR RH

main57071-14020iCT141,YT140198201-199907

main57071-14030iRT142..SED198508-198612

57072BOX SUB-ASSY, TORQUE, REAR LH

main57072-14020iCT141,ST141..SED198201-199907

main57072-14030iRT142..SED198508-198612

57073BRACKET SUB-ASSY, LATERAL ROD

main57073-14040iCT140,TT14#..SED198201-199907

57075BRACKET SUB-ASSY, UPPER CONTROL LINK, RH

main57075-14030iCT141,ST141..SED198201-199907

57076BRACKET SUB-ASSY, UPPER CONTROL LINK, LH

main57076-14030iCT140,RT140,TT14#..SED198201-199907

57107BRACKET SUB-ASSY, STRUT BAR, RH

main57107-14080iCT14#,RT14#,ST141,TT14#198201-199907

57108BRACKET SUB-ASSY, STRUT BAR, LH

main57108-14080iCT14#,RT14#,ST141,TT14#198201-199907

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-14070iCT14#,RT14#,ST141,TT14#198201-199907

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-14030iCT14#,RT14#,ST141,TT14#198201-199907

57133PROTECTOR, STRUT BAR BRACKET, RH

main57133-14030iCT141,YT140198612-199907

COLD SPEC

57134PROTECTOR, STRUT BAR BRACKET, LH

main57134-14020iCT141,YT140198612-199907

COLD SPEC

57197BOX, TORQUE, FRONT RH

main57197-14010iCT14#,RT14#,ST141,TT14#198201-199907

57198BOX, TORQUE, FRONT LH

main57198-14010iCT14#,RT14#,ST141,TT14#198201-199907

57199BOX, TORQUE, FRONT, NO.2

main58173-14010iCT140,RT14#,ST141,TT14#198201-199907

57209MEMBER SUB-ASSY, ENGINE REAR SUPPORT

main57209-14170iTT14#..4F,5F198201-198508

main57209-14190iTT14#..3FC,3H,4H198201-198508

main57209-14210iST141..4FC..GEN198508-199907

main57209-14220iCT140198201-198312

main57209-14300iST141..5F..GEN198508-199907

main57209-20140iRT142198408-198612

main57209-20150iCT141198601-199907

main57209-20160iRT140198206-199907

57257BRACKET, ENGINE REAR SUPPORT MEMBER

main57257-14050iCT140,RT140,TT14#198201-199907

RH

main57258-24010iCT141,ST141..GEN198201-199907

LH

57262CUSHION, ENGINE REAR SUPPORT MEMBER

main57264-14010iCT141198201-199907

UPR

main57265-14010iCT141198201-199907

LWR

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-14190iCT140,RT14#,TT14#198201-199907

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-14190iCT141,YT140198201-199907

57407CROSSMEMBER SUB-ASSY, CENTER FLOOR, NO.1

main57407-14010iCT140,RT140,TT14#..SED198201-199907

main57407-91C01iCT140,RT140,TT14#..WG198201-199907

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-24010iCT140,RT140,TT14#198201-199907

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57418-24010iCT14#,RT14#,ST141,TT14#198201-199907

57425REINFORCEMENT, FRONT FLOOR, NO.2 RH

main57425-14020iCT140,RT140..STD198201-198310

main57425-24010iRT142,ST141..ARL198201-199907

57426REINFORCEMENT, FRONT FLOOR, NO.2 LH

main57426-14020iST141..WG..GEN198201-199907

main57426-24010iCT141,YT140198201-199907

57435MEMBER, CENTER FLOOR SIDE, RH

main57435-14010iRT142,ST141..WG..ARL198201-199907

main57435-24010iRT142..SED198508-198612

main57441-14010iYT140198201-199907

57435ABASE, BELT ANCHOR TO FLOOR PAN, NO.3 RH

main58282-14010iCT140,RT140,TT14#..SED198201-199907

57436MEMBER, CENTER FLOOR SIDE, LH

main57436-14010iST141..SED198201-199907

main57436-14020iRT142..SED198508-198612

main57441-14010iYT140198201-199907

57436ABASE, BELT ANCHOR TO FLOOR PAN, NO.3 LH

main58283-14010iCT140,RT140,TT14#..SED198201-199907

57451MEMBER, FRONT FLOOR CROSS

main57451-24010iCT14#,RT14#,ST141,TT14#198201-199907

57462MEMBER, CENTER FLOOR CROSS, NO.2

main57405-14080iCT141,YT140198201-199907

main57405-14090iTT14#..ME198201-198212

main57405-14100iRT142..SED198508-198612

57475PLATE, FRONT FLOOR CROSSMEMBER

main57475-24010iCT141,YT140198201-199907

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-14100iCT140,RT140,TT14#..SED..(GEN,PHL)198201-198603

sub57601-14120

main57601-14120iCT141,ST141..SED198201-199907

main57601-14130iRT142..SED198508-198612

main57601-91790iCT140,RT140,TT14#..WG198201-199907

main57601-91C02iRT142,ST141..WG..ARL198304-198612

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-14090iCT140,RT14#,ST141,TT14#..SED198201-198603

sub57602-14110

main57602-14110iCT141,ST141..SED198201-199907

main57602-14120iRT142..SED198508-198612

main57602-91790iST141..WG..GEN198201-199907

main57602-91C02iRT142,ST141..WG..ARL198304-198612

57704SUPPORT SUB-ASSY, REAR SUSPENSION SPRING

main57701-14010iRT142,ST141..WG..ARL198201-199907

RH

main57701-14040iTT14#..ME198303-198310

RH

main57704-14010iCT141,ST141..SED198201-199907

LH

main57704-14050iTT14#..ME198303-198310

LH

main57723-14030iRT142..SED198508-198612

RH

main57724-14020iRT142..SED198508-198612

LH

57738REINFORCEMENT, REAR STABILIZER BRACKET, RH

main57738-14020iCT140..LHD..DLX198201-199907

57739REINFORCEMENT, REAR STABILIZER BRACKET, LH

main57739-14010iCT140..LHD..DLX198201-199907

9011908177

main90119-08177

9011908342

main90119-08342

9011910309

main90119-10309

9033325001

main90333-25001

9033330002

main90333-30002

9046110504

main90461-10504

9095001025

main90950-01025

9095001027

main90950-01027

9095003128

main90950-03128

9165161022

main91651-61022

9165540820

main91655-40820

47 parts on this diagram · 4 diagrams in section
