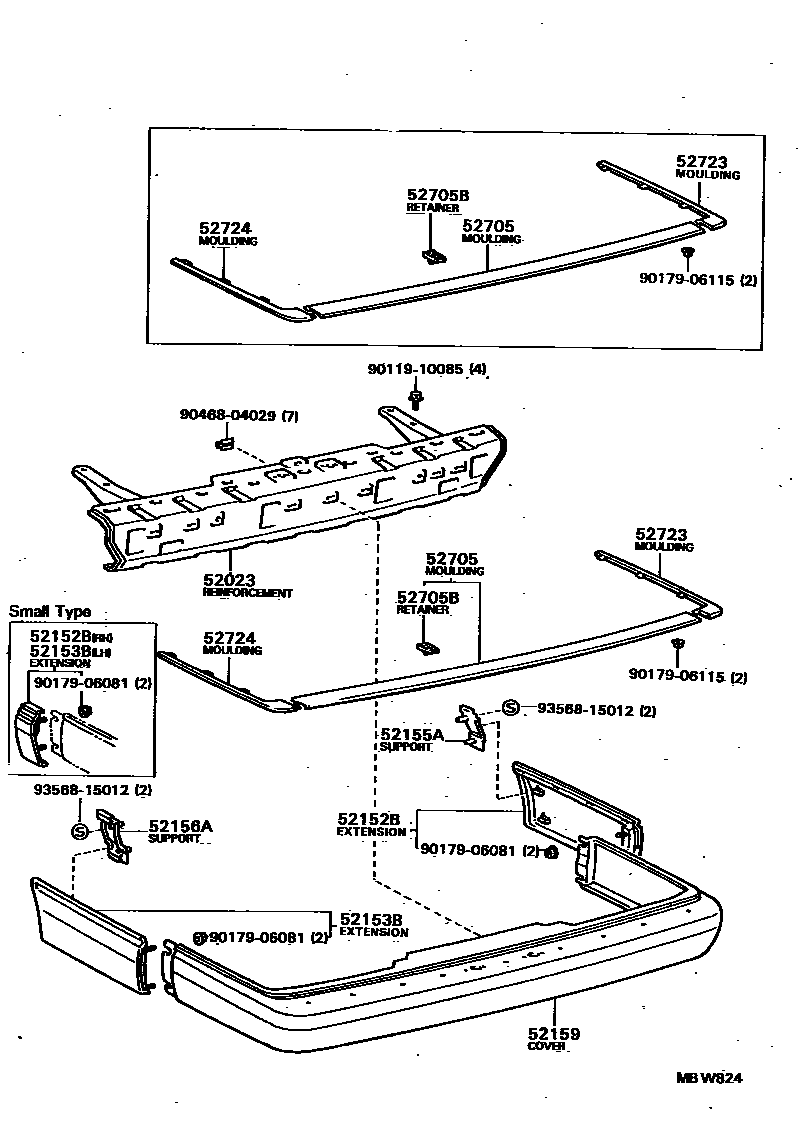

REAR BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-20050iTT141..GL..GEN198201-198207

W/P.P.BUMPER,SHORT CORNER

sub52023-20100

main52023-20060iTT14#..ME198201-198211

W/*UB

main52023-20070iRT142,ST141..CSX,CXI198201-198612

W/*UB

main52023-20100iST141..SED..(CS,DLX)198201-199907

W/P.P.BUMPER

main52023-20250iCT141,YT140198612-199907

main52023-91259iST141..WG..GEN198201-199907

52152BEXTENSION, REAR BUMPER, RH

main52106-29105iST141..SED..(CS,S)198201-198612

SMALL TYPE

main52106-29115iRT142,ST141..SED..(CS,CSI)198201-199907

LARGE TYPE

52153BEXTENSION, REAR BUMPER, LH

main52107-29225iCT140,RT140,TT14#..SED..(DLX,STD,TAX)198201-198612

SMALL TYPE

main52107-29235iCT140,RT140,TT14#..SED..(DLX,GL,TAX)198201-199907

LARGE TYPE

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-14081iCT141,YT140198612-199907

main52155-20070iCT140,RT140,TT14#..SED198201-198612

W/*UB

main52155-20080iRT142,ST141..SED..(CS,CSI)198201-199907

W/P.P.BUMPER

main52155-91257iCT140,RT140,ST141,TT14#..WG198201-199907

52156ASUPPORT, REAR BUMPER SIDE, LH

main52155-91257iCT140,RT14#,ST141,TT14#..WG198201-199907

main52156-14081iCT141,YT140198612-199907

main52156-20080iCT140,RT140,TT14#..SED198201-198612

W/*UB

main52156-20090iRT142,ST141..SED..(CS,CSI)198201-199907

W/P.P.BUMPER

52159COVER, REAR BUMPER

main52159-14110iCT141,YT140198612-199907

main52159-20050iST141..SED..(CS,DLX)198201-199907

W/P.P.BUMPER,MOULDING

main52159-20070iCT140,RT140,TT14#..SED198201-198508

W/*UB

main52159-20090iCT140,RT140,TT14#..SED..(DLX,STD,TAX)198201-198612

W/P.P.BUMPER,W/O MOULDING

main52159-20900iST141..CSX198201-198310

W/*UB,UNPAINTED

main52159-20907iRT142,ST141..CSX,CXI198310-198612

W/*UB,UNPAINTED

main52159-91257iST141..WG..GEN198201-199907

W/MOULDING

main52159-91258iCT140,RT140,TT14#..WG198201-198612

52705MOULDING SUB-ASSY, REAR BUMPER

main52705-20020iCT140,RT140,TT14#..SED..(DLX,GL,TAX)198201-199907

W/LICENSE LAMP

main52705-20030iRT142,ST141..SED..(CS,CSI)198601-198608

W/O LISENCE LAMP

main52705-20030iTT141..GL;TT141..WG198201-198412

W/O LICENSE LAMP

main52705-91255iST141..WG..GEN198301-199907

main52751-14030iCT141,YT140198612-199907

BLACK

main52751-14040iCT141,YT140198612-199907

CHROME PLATED

main52751-20050iRT142,ST141..SED..(CS,CSI)198304-198508

52705BRETAINER, REAR BUMPER MOULDING

main52755-20010iRT142,ST141..CS,CSI198201-198612

RH

main52755-20010iST141..WG..GEN198508-199907

CTR,W/BOLT;RH

main52755-20010iST141,TT141..WG..(CS,DLX)198301-198508

CTR,W/BOLT

main52756-20010iRT142,ST141..CS,CSI198201-199907

LH

main52757-20020iST141..WG..GEN198201-199907

CTR

52723MOULDING, REAR BUMPER EXTENSION, RH

main52752-20010iRT142,ST141..SED..(CS,CSI)198201-199907

LARGE TYPE

main52752-20021iST141..SED..S198201-198612

SMALL TYPE

main52752-91255iST141..WG..GEN198201-199907

CHROME PLATED

main52752-91256iST141..WG..S198201-198612

52724MOULDING, REAR BUMPER EXTENSION, LH

main52753-20010iRT142,ST141..SED..(CS,CSI)198201-199907

LARGE TYPE

main52753-20021iST141..SED..S198201-198612

SMALL TYPE

main52753-91255iST141,TT141..WG..(CS,DLX)198201-199907

CHROME PLATED

main52753-91256iST141..WG..S198201-198612

9011910085

main90119-10085

9017906081

main90179-06081

9017906115

main90179-06115

9046804029

main90468-04029

9356815012

main93568-15012

15 parts on this diagram · 4 diagrams in section
