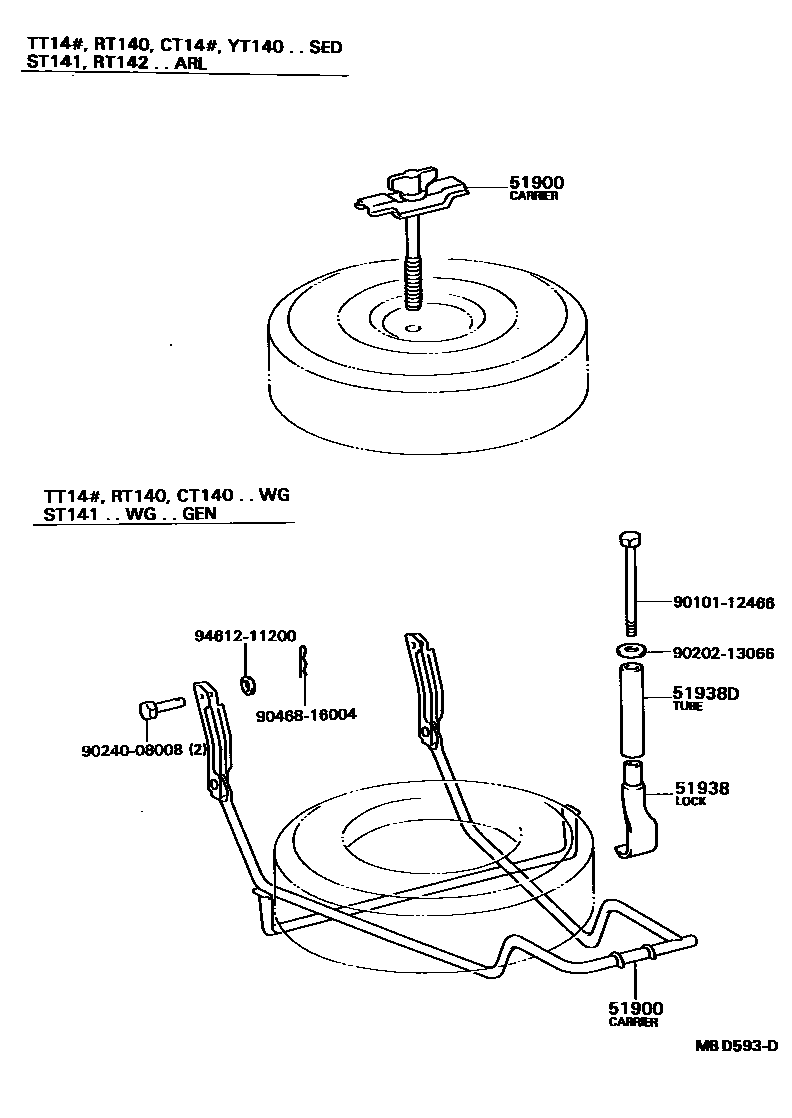

SPARE WHEEL CARRIER

51900CARRIER ASSY, SPARE WHEEL

main51900-14030iST141..CSX198408-198612

main51900-14040iST141..CS,S198508-198612

main51900-20020iCT141198601-198612

main51900-30130iRT142..CXI198508-198612

main51900-91C01iST141..WG..GEN198508-199907

sub51900-91C02

51938LOCK, SPARE WHEEL CARRIER

main51938-13010iCT140,RT140,TT14#..WG198201-198312

main51938-28020iTT141..WG198312-198508

sub51938-22020

main51938-28030iST141..WG..GEN198601-199907

51938DTUBE(FOR SPARE WHEEL CARRIER BOLT)

main90440-17149iCT140,RT140,TT14#..WG198201-198508

9010112466

main90101-12466

9020213066

main90202-13066

9024008008

main90240-08008

9046816004

main90468-16004

9461211200

main94612-11200

8 parts on this diagram · 1 diagram in section
