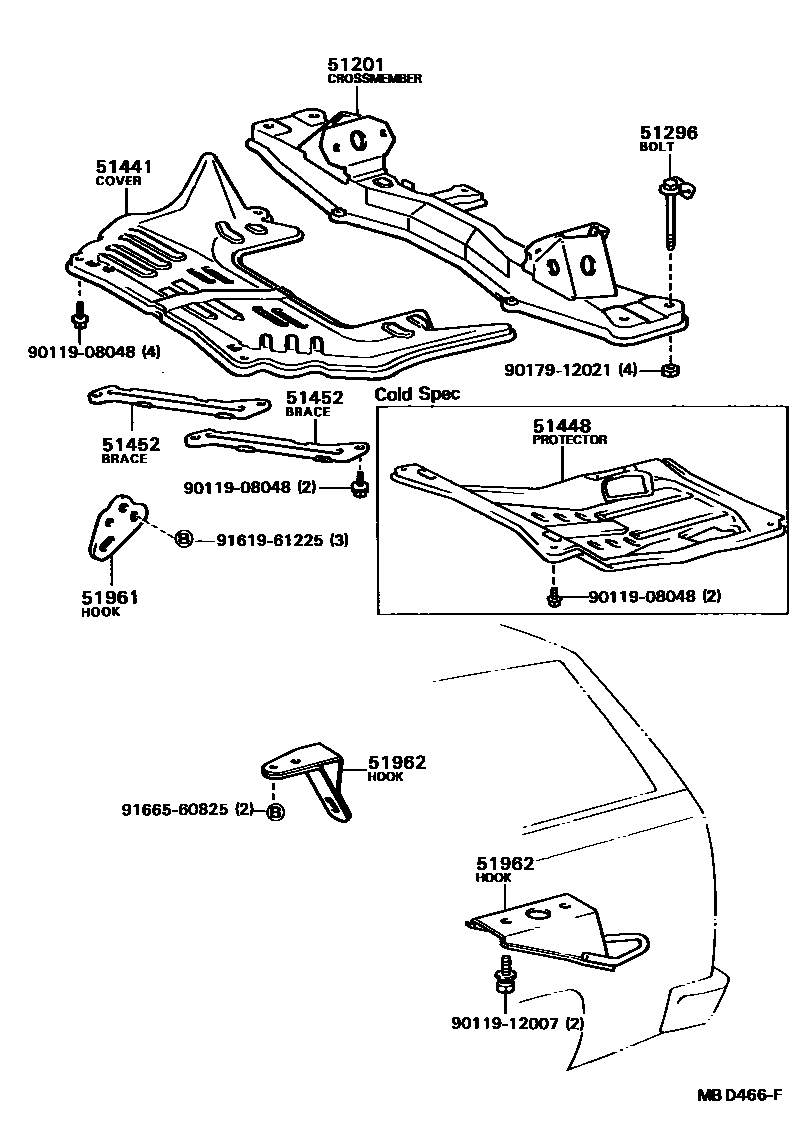

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-14140iTT14#..SED..RHD..(3FC,4F,5F)198201-198412

main51201-14150iTT14#..SED..LHD..(3FC,4F,5F)¥48,500198201-198508

main51201-14180iCT140..LHD..DLX198201-198312

main51201-14230iRT142¥41,800198408-198612

main51201-14260iTT14#..WG;TT140..3H,4H¥48,500198201-198508

sub51201-14310

main51201-14270iCT141¥48,600198201-199907

main51201-20160iRT140198206-198312

main51201-20170iYT140¥48,600198612-199907

main51201-20190iST141..SED..GEN¥37,500198508-199907

main51201-20200iST141..WG..GEN¥37,500198508-199907

51296BOLT, FRONT SUSPENSION MEMBER MOUNTING

main51229-20020iYT140¥1,820198708-199907

main51296-14030iYT140¥1,010198201-198708

main51296-24010iST141..SED..GEN¥1,000198201-199907

51441COVER, ENGINE UNDER, NO.1

main51405-14010iCT140¥7,100198201-199907

main51441-14010iCT141198601-198612

main51441-14050iST141..GEN¥7,100198508-199907

main51441-14060iTT14#¥7,000198201-198508

main51441-20070iRT140198206-198312

main51441-20090iYT140¥6,400198612-199907

51448PROTECTOR, OIL PAN

main51447-14050iCT141,YT140¥3,920198612-199907

COLD SPEC

51452BRACE, FRONT CROSSMEMBER TO FRONT SUSPENSION MEMBER

main51452-14011iRT140198206-198312

51961HOOK, NO.1

main51963-14060iCT140,RT140,TT14#198201-198310

sub51963-14080¥870

main51963-14080iCT140,RT140,TT14#¥870198310-199907

51962HOOK, NO.2

main51095-91C02iRT142,ST141..WG..ARL¥6,000198304-198612

RH

main51096-91C01iRT142,ST141..WG..ARL198304-198612

LH

9011908048

main90119-08048¥250

9011912007

main90119-12007¥260

9017912021

main90179-12021¥170

9161961225

main91619-61225¥200

9166560825

main91665-60825¥170

12 parts on this diagram · 2 diagrams in section
