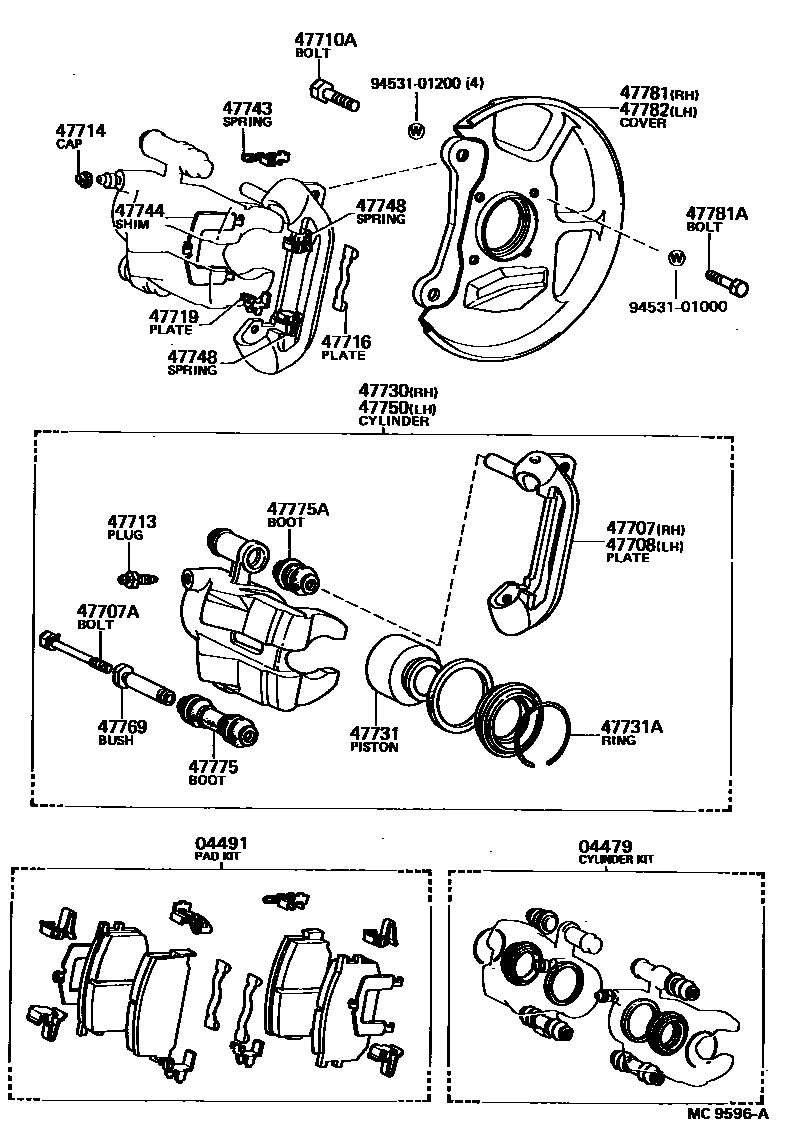

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0003 1 0005 1HONG KONG SPEC,VENTILATED TAX0006 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-14020iCT141,YT140198601-198712

main04479-14020iCT140..RHD198301-198312

FR TAXI DISC BRAKE

main04479-14060iCT140,RT140,TT14#..DLX,GL,STD198201-198508

main04479-20060iST141..GEN198207-198612

PERU SPEC

main04479-20100iCT141..5F198612-198712

HONG KONG SPEC

main04479-20100iCT141,YT140198707-199310

VENTILATED TAXI DISC

main04479-20100iCT141,YT140199310-199907

04491PAD KIT, DISC BRAKE, FRONT

main04491-14150iCT140,RT140,ST141,TT14#..DLX,GL,STD198201-198612

sub04465-12370

main04491-20160iCT140..TAX198301-198312

FR TAXI DISC BRAKE

sub04465-20420

main04491-20160iCT141,YT140198601-198712

sub04465-20420

main04491-20300iCT141..5F198612-198712

HONG KONG SPEC

sub04465-20290

main04491-20300iCT141,YT140199310-199505

sub04465-20290

main04491-20300iCT141,YT140198707-199310

VENTILATED TAXI DISC

sub04465-20290

47707PLATE SUB-ASSY, DISC BRAKE TORQUE, FRONT RH

main47707-14010iCT140,RT140,ST141,TT14#..DLX,GL,STD198201-198612

47707ABOLT, HEXAGON(FOR FRONT DISC BRAKE TORQUE PLATE)

main90119-08199iCT140,RT140,TT14#..DLX,GL,STD198201-198309

SLIDE BUSH L=51.5

main90119-08431iCT140,RT140,ST141,TT14#..DLX,GL,STD198309-198612

SLIDE BUSH L=50

47708PLATE SUB-ASSY, DISC BRAKE TORQUE, FRONT LH

main47708-14010iCT140,RT140,ST141,TT14#..DLX,GL,STD198201-198612

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90101-12064iCT140,RT140,ST141,TT14#..DLX,GL,STD198201-198612

main90101-12071iCT140..RHD198301-198312

FR TAXI DISC BRAKE

main90101-12071iCT141,YT140198601-199907

47713PLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iCT140..TAX198301-198312

FR TAXI DISC BRAKE

main47547-20010iCT14#,RT140,ST141,TT14#,YT140..DLX,GL,STD198201-199907

47714CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iCT140,RT140,ST141,TT14#..DLX,GL,STD198201-199907

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-14080iCT140,RT140,ST141,TT14#..DLX,GL,STD198201-198612

main47716-20040iCT140..TAX198301-198312

FR TAXI DISC BRAKE

main47716-20040iCT141,YT140198601-198712

main47716-20070iCT141..5F198612-198712

HONG KONG SPEC

main47716-20070iCT141,YT140198707-199310

VENTILATED TAXI DISC

main47716-20070iCT141,YT140199310-199907

47719PLATE, FRONT DISC BRAKE PAD GUIDE

main47736-12010iCT140,RT140,ST141,TT14#..DLX,GL,STD198201-198612

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-12250iCT140,RT140,TT14#..DLX,GL,STD198309-198508

main47730-14050iCT140,RT140,TT14#..DLX,GL,STD198201-198309

sub47730-12250

main47730-20140iCT140..RHD198301-198312

FR TAXI DISC BRAKE

main47730-20140iCT141,YT140198601-198712

main47730-20150iTT141..LHD..(3FC,4F)..DLX..GEN198207-198612

PERU SPEC

main47730-20250iCT141,YT140198707-199310

VENTILATED TAXI DISC

main47730-20250iCT141,YT140199310-199907

main47730-20250iCT141..5F198612-198712

HONG KONG SPEC

47731PISTON, FRONT DISC BRAKE

main47731-14020iCT140..TAX198301-198312

FR TAXI DISC BRAKE

main47731-14020iCT141,YT140198601-198712

main47731-14070iCT140,RT140,ST141,TT14#..DLX,GL,STD198201-198612

main47731-20120iCT141..5F198612-198712

HONG KONG SPEC

main47731-20120iCT141,YT140198707-199310

VENTILATED TAXI DISC

main47731-20120iCT141,YT140199310-199907

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-60004iCT140,RT140,ST141,TT14#..DLX,GL,STD198201-199907

main90522-60004iCT141..5F198612-198712

HONG KONG SPEC

main90522-60004iCT141,YT140198707-199310

VENTILATED TAXI DISC

main90522-62001iCT140..RHD198301-198312

FR TAXI DISC BRAKE

main90522-62001iCT141,YT140198601-198712

47743SPRING, ANTI-RATTLE, NO.2(FOR FRONT DISC BRAKE)

main47743-12010iCT140,RT140,ST141,TT14#..DLX,GL,STD198201-198612

LH

main47748-12050iCT140,RT140,ST141,TT14#..DLX,GL,STD198201-198612

RH

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-14050iCT140,RT140,ST141,TT14#..DLX,GL,STD198201-198612

main47744-20030iCT140..TAX198301-198312

FR TAXI DISC BRAKE

main47744-20030iCT141,YT140198601-198712

main47744-20070iCT141,YT140198707-199310

VENTILATED TAXI DISC

main47744-20070iCT141,YT140199310-199907

main47744-20070iCT141..5F198612-198712

HONG KONG SPEC

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47743-14040iCT140,RT140,ST141,TT14#..DLX,GL,STD198201-198612

LWR

main47748-14050iCT140,RT140,ST141,TT14#..DLX,GL,STD198201-198612

UPR

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-12250iCT140,RT140,TT14#..DLX,GL,STD198309-198508

main47750-14130iCT140,RT140,TT14#..DLX,GL,STD198201-198309

sub47750-12250

main47750-20130iCT140..RHD198301-198312

FR TAXI DISC BRAKE

main47750-20130iCT141,YT140198601-198712

main47750-20140iTT141..LHD..(3FC,4F)..DLX..GEN198207-198612

PERU SPEC

main47750-20240iCT141,YT140199310-199907

main47750-20240iCT141..5F198612-198712

HONG KONG SPEC

main47750-20240iCT141,YT140198707-199310

VENTILATED TAXI DISC

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-14010iCT140,RT140,TT14#..DLX,GL,STD198201-198309

L=51.5

sub47769-28H00

sub47769-28H01

main47769-20020iCT141,YT140198707-199310

VENTILATED TAXI DISC,LWR

main47769-20020iCT141..5F198612-198712

HONG KONG SPEC,LWR

main47769-20020iCT141,YT140199310-199907

LWR

main47769-28010iCT140,RT140,ST141,TT14#..DLX,GL,STD198309-198612

L=50

main47779-14020iCT141,YT140198707-199310

VENTILATED TAXI DISC,UPR

main47779-14020iCT141..5F198612-198712

HONG KONG SPEC,UPR

main47779-14020iCT141,YT140199310-199907

UPR

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-14010iCT140,TT14#..RHD198201-198508

main47775-20010iTT141..LHD..(3FC,4F)..DLX..GEN198207-198612

PERU SPEC

main47775-20040iCT141..5F198612-198712

HONG KONG SPEC

main47775-20040iCT141,YT140198707-199310

VENTILATED TAXI DISC

main47775-20040iCT141,YT140199310-199907

47775ABOOT, PIN

main47776-14010iCT140,RT140,ST141,TT14#..DLX,GL,STD198201-198612

main47776-20010iCT141..5F198612-198712

HONG KONG SPEC

main47776-20010iCT141,YT140198707-199310

VENTILATED TAXI DISC

main47776-20010iCT141,YT140199310-199907

47781COVER, DISC BRAKE DUST, FRONT RH

main47703-14080iCT140,RT140,ST141,TT14#..DLX,GL,STD198201-198612

main47703-20020iCT140..TAX198301-198312

FR TAXI DISC BRAKE

main47703-20020iCT141,YT140198601-199907

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90101-08341iST141198304-198508

main90101-10062iCT140,RT140,ST141,TT14#..DLX,GL,STD198201-198612

main90101-12066iCT140..TAX198301-198312

FR TAXI DISC BRAKE

main90101-12066iCT141,YT140198601-199907

47782COVER, DISC BRAKE DUST, FRONT LH

main47704-14080iCT140,RT140,ST141,TT14#..DLX,GL,STD198201-198612

main47704-20020iCT140..RHD198301-198312

FR TAXI DISC BRAKE

main47704-20020iCT141,YT140198601-199907

9453101000

main94531-01000

9453101200

main94531-01200

25 parts on this diagram · 4 diagrams in section
