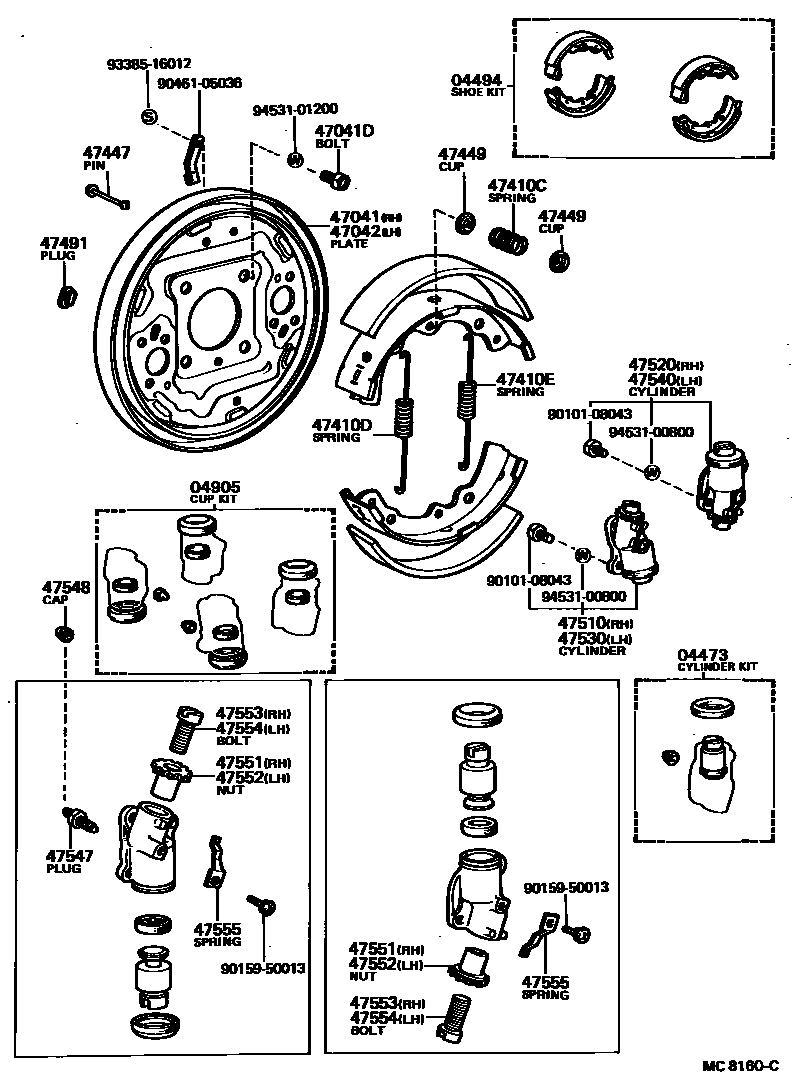

FRONT DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1

04473CYLINDER KIT, FRONT WHEEL

main04473-20051iCT140..RHD198201-199310

04494SHOE KIT, FRONT BRAKE

main04494-20110iTT140..3H,4H198201-198308

sub04494-20130

main04494-20120iTT140..3H,4H198308-198804

sub04494-20121

main04494-20121iCT141,YT140198804-199306

sub04494-20130

main04494-20130iCT141,YT140199306-199310

04905CUP KIT, FRONT WHEEL CYLINDER

main04905-20050iTT140..3H,4H198201-199310

47041PLATE SUB-ASSY, BRAKE BACKING, FRONT RH

main47041-20100iTT140..3H,4H198201-199310

47041DBOLT(FOR BACKING PLATE TO STEERING KNUCKLE SETTING)

main90101-12043iTT140..3H,4H198201-198312

sub90119-12031

main90119-12031iCT141,YT140198612-199310

47042PLATE SUB-ASSY, BRAKE BACKING, FRONT LH

main47042-20100iTT140..3H,4H198201-199310

47410CSPRING(FOR FRONT BRAKE SHOE HOLD DOWN)

main90501-18017iTT140..3H,4H198201-199310

47410DSPRING, TENSION(FOR FRONT BRAKE SHOE RETURN)

main90506-20014iTT140..3H,4H198201-199310

47410ESPRING, TENSION(FOR FRONT BRAKE SHOE RETURN)

main90506-20014iTT140..3H,4H198201-199310

47447PIN, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE)

main47447-30020iTT140..3H,4H198201-199310

47449CUP, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE)

main47449-30020iTT140..3H,4H198201-199310

47491PLUG, HOLE(FOR FRONT BRAKE)

main47491-20020iCT140..RHD198201-199310

47510CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR FRONT OR UPPER)

main47510-20070iCT141,YT140198612-199005

sub47510-20080

main47510-20080iCT141,YT140199005-199310

main47510-29175iCT140..TAX198201-198312

sub47510-20070

47520CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR REAR OR LOWER)

main47520-20050iCT141,YT140198612-199005

sub47520-20070

main47520-20070iCT141,YT140199005-199310

main47520-29105iCT140..TAX198201-198312

sub47520-20040

47530CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR FRONT OR UPPER)

main47530-20070iCT141,YT140198612-199005

sub47530-20080

main47530-20080iCT141,YT140199005-199310

main47530-29175iCT140..TAX198201-198312

sub47530-20070

47540CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR REAR OR LOWER)

main47540-20050iCT141,YT140198612-199005

sub47540-20070

main47540-20070iCT141,YT140199005-199310

main47540-29105iCT140..TAX198201-198312

sub47540-20040

47547PLUG, BLEEDER(FOR FRONT DRUM BRAKE)

main47547-12010iTT140..3H,4H198201-199310

47548CAP, BLEEDER PLUG(FOR DRUM BRAKE, FRONT)

main31478-30010iTT140..3H,4H198201-199310

47551NUT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE)

main47551-20010iTT140..3H,4H198201-199310

47552NUT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE)

main47552-20010iTT140..3H,4H198201-199310

47553BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE)

main47553-20010iTT140..3H,4H198201-199310

47554BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE)

main47554-20010iTT140..3H,4H198201-199310

47555SPRING, ADJUSTER LOCK(FOR FRONT BRAKE)

main47555-20011iTT140..3H,4H198201-199310

9010108043

main90101-08043

9015950013

main90159-50013

9046105036

main90461-05036

9338516012

main93385-16012

9453100800

main94531-00800

9453101200

main94531-01200
