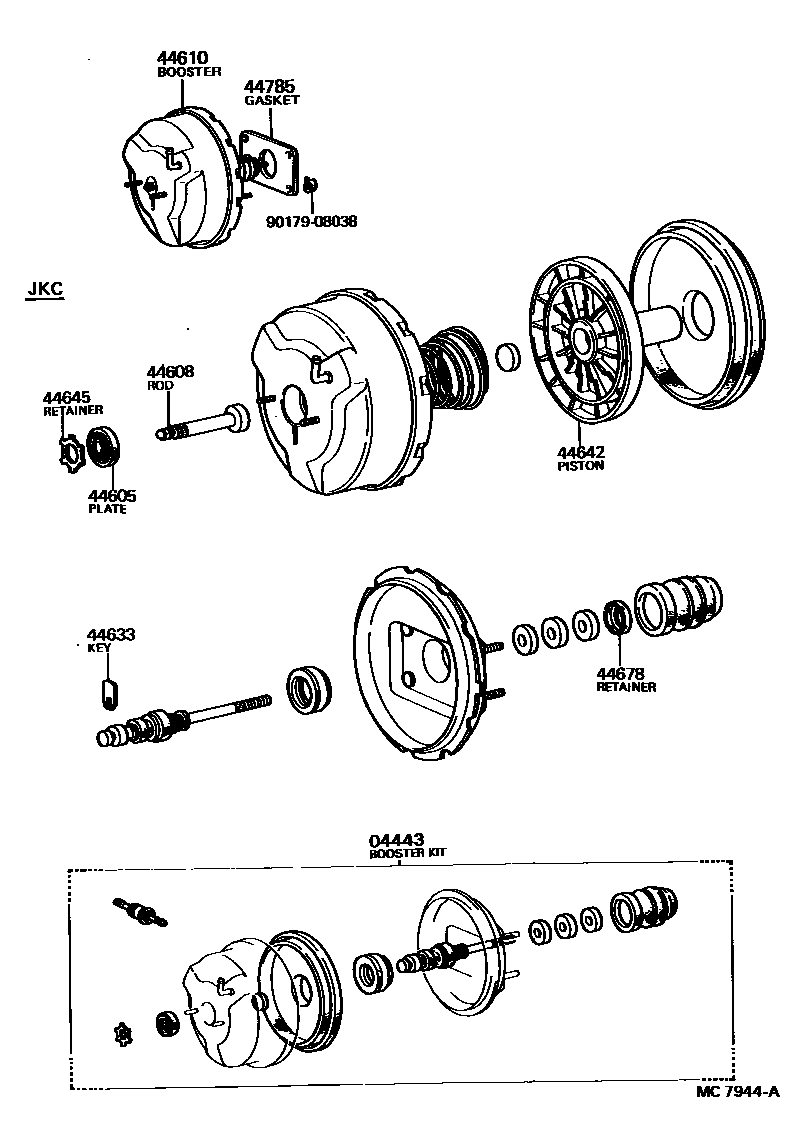

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0005 1 0006 1 0008 1 0011 1 0013 1

04443BOOSTER KIT, BRAKE

main04443-14320iTT140..3H198305-198310

AISIN,FR TAXI DRUM BRAKE

main04443-14330iTT14#..RHD198201-198508

JKC

main04443-14340iCT140..RHD198201-198612

main04443-20330iCT140..LHD198201-198312

main04443-20510iYT140..RHD198801-199108

FR DISC BRAKE

main04443-20520iCT141,YT140..LHD198612-199108

FR DISC BRAKE

main04443-20530iCT141..5F198612-199108

FR DISC BRAKE

main04443-20540iCT141,YT140..LHD198612-199310

FR DRUM BRAKE

main04443-20550iCT141..5F198612-199310

FR DRUM BRAKE

main04443-20770iYT140..RHD198801-199310

FR DRUM BRAKE

main04443-22190iRT140,ST141,TT14#..LHD198201-198612

44605PLATE & SEAL SUB-ASSY, BOOSTER

main44605-22021iTT14#..RHD198201-198508

sub44605-10080

44608PUSH ROD SUB-ASSY, BOOSTER

main44606-12520iCT141,YT140198612-199108

main44606-35100iCT140,RT140,ST141,TT14#..LHD198201-198612

main44606-35100iTT140..3H198305-198310

AISIN,FR TAXI DRUM BRAKE

main44608-14040iTT14#..RHD198201-198508

JKC

44610BOOSTER ASSY, BRAKE

main44610-14510iTT14#..RHD198201-198508

JKC

main44610-14550iCT141198201-198612

main44610-14630iRT140,ST141,TT14#..LHD198201-198612

main44610-20640iCT140..LHD198201-198312

main44610-20880iYT140..RHD199310-199907

main44610-20880iYT140..RHD198801-199310

FR DISC BRAKE

main44610-22330iTT140..3H198305-198310

AISIN,FR TAXI DRUM BRAKE

main44610-2B010iCT141..5F199310-199907

main44610-2B010iCT141..5F198612-199310

FR DISC BRAKE

main44610-2B020iCT141..5F198612-199310

FR DRUM BRAKE

main44610-2B030iYT140..LHD198612-199310

FR DRUM BRAKE

main44610-2B040iYT140..LHD199310-199907

main44610-2B040iYT140..LHD198612-199310

FR DISC BRAKE

main44610-2B050iCT141..4F198612-199310

FR DRUM BRAKE

main44610-2B060iCT141..4F198612-199310

FR DISC BRAKE

main44610-2B060iCT141..4F199310-199907

main44610-2B260iYT140..RHD198801-199310

FR DRUM BRAKE

44633KEY, BOOSTER VALVE PLUNGER

main44633-22020iTT14#..RHD198201-198508

44642PISTON, BRAKE BOOSTER

main44642-14170iTT140..3H198305-198310

AISIN,FR TAXI DRUM BRAKE

main44642-14170iCT141198201-198612

main44642-16050iCT141,YT140..LHD198612-199108

FR D1SC BRAKE

main44642-20140iTT14#..RHD198201-198508

JKC

main44642-27150iCT141,YT140..RHD198612-199310

FR DRUM BRAKE

44645RETAINER, BOOSTER PUSH ROD SEAL

main44645-22020iTT14#..RHD198201-198508

44678RETAINER, BOOSTER AIR CLEANER

main44678-22020iTT14#..RHD198201-198508

44785GASKET, BRAKE BOOSTER

main44785-20030iCT14#,RT14#,ST141,TT14#,YT140198201-199907

9017908038

main90179-08038

10 parts on this diagram · 7 diagrams in section
