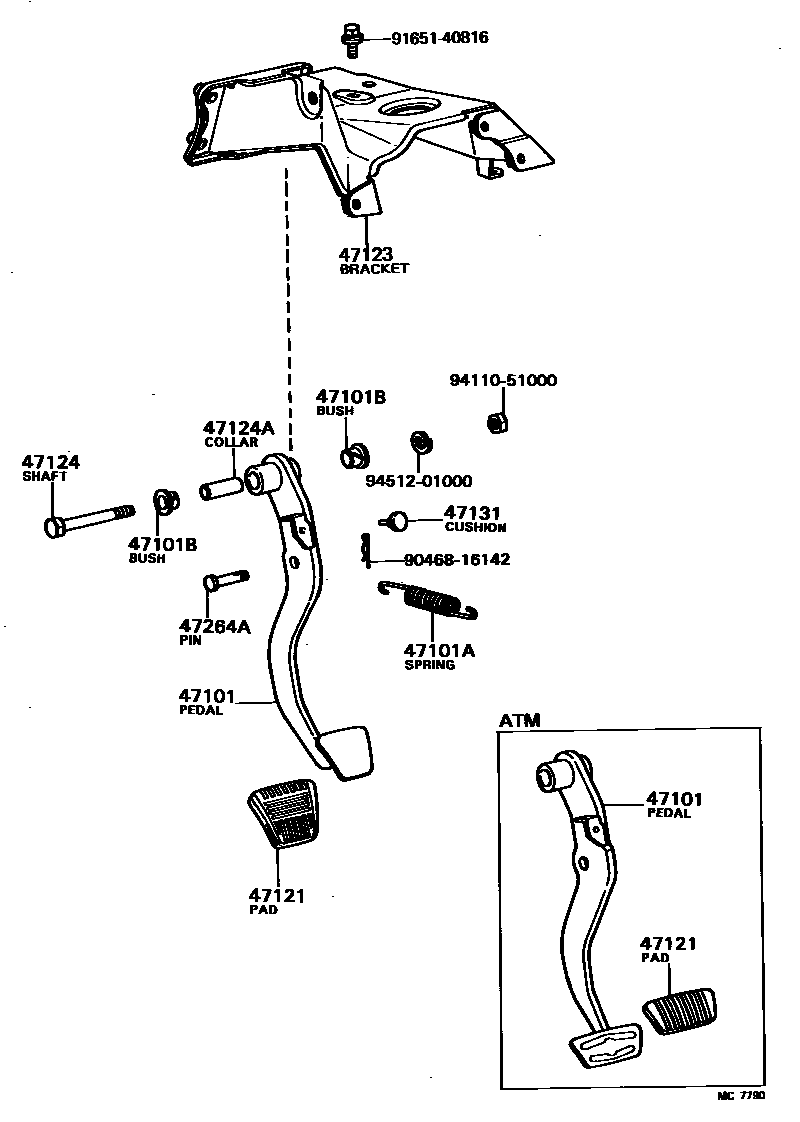

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-14150iCT140,RT140,ST141,TT14#..LHD..(4F,5F)198201-199907

main47101-14160iST141,TT141..LHD..ATM198201-198612

main47101-20250iTT140..4H198201-198310

main47101-24010iYT140..RHD198201-199907

main47101-24020iRT142,ST141,TT141..RHD..ATM198201-198612

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-12011iCT14#,RT14#,ST141,TT14#,YT140198201-199907

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iCT141,YT140198601-199907

main90386-13192iCT140,RT14#,ST141,TT14#198201-198612

47121PAD, BRAKE PEDAL

main31321-14020iCT14#,RT14#,ST141,TT14#,YT140..MTM198201-199907

main47121-30050iRT142,ST141,TT141..ATM198201-198612

47123BRACKET, BRAKE PEDAL

main55106-14220iRT142,ST141..ARL198201-198612

main55106-14230iCT140,RT140,TT14#..LHD198201-198303

sub55106-14231

main55106-14231iCT140,RT140,ST141,TT14#..LHD198303-199907

main55106-14260iCT140,TT14#..RHD198303-199907

47124SHAFT, BRAKE PEDAL

main90101-10039iYT140..RHD198201-199907

main90101-10380iCT140,RT140,ST141,TT14#..LHD198201-199907

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iYT140..RHD198201-199907

main90387-10044iCT140,RT140,ST141,TT14#..LHD198201-199907

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06008iCT14#,RT14#,ST141,TT14#,YT140198201-199907

47264APIN(FOR PUSH ROD)

main90249-10064iCT14#,RT14#,ST141,TT14#,YT140198201-199907

9046816142

main90468-16142

9165140816

main91651-40816

9411051000

main94110-51000

9451201000

main94512-01000

13 parts on this diagram · 1 diagram in section
