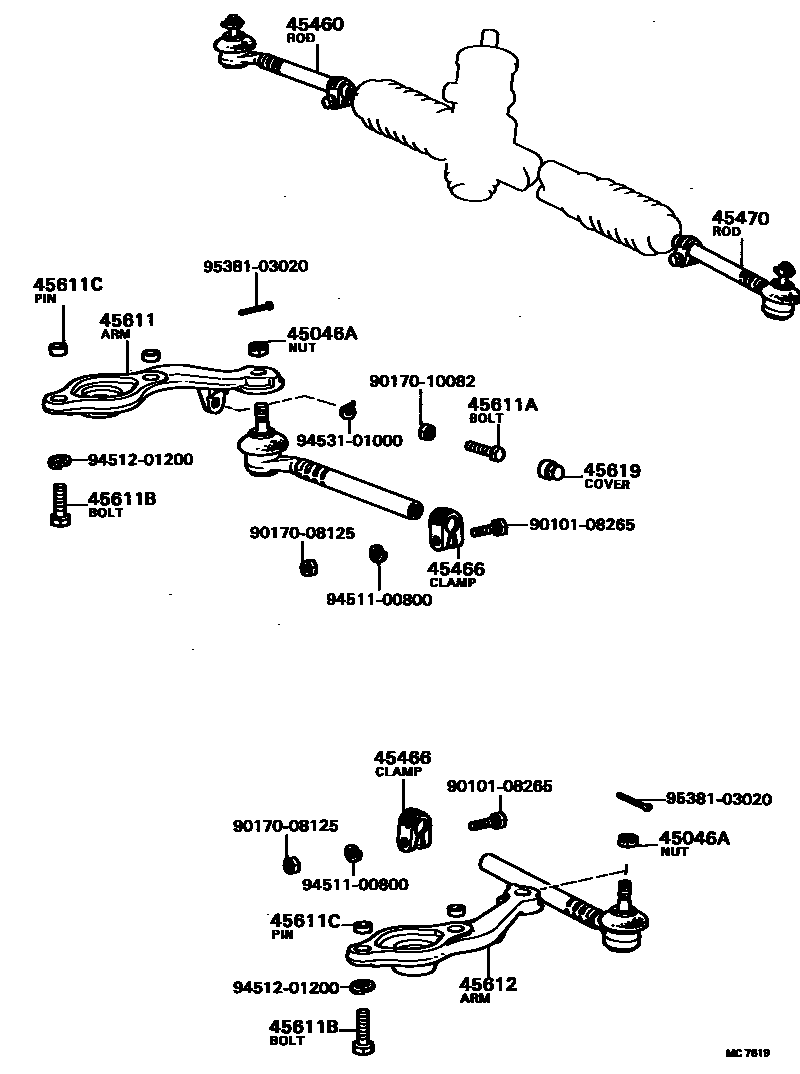

FRONT STEERING GEAR & LINK

0001 1 0003 1 0005 1 0006 1 0009 1 0010 1 0014 1 0017 1 0018 1 0021 1

45046END SUB-ASSY, TIE ROD, RH

main45046-29075iTT140..3H,4H¥3,200198201-199907

sub45046-29076¥3,200

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iCT14#,RT14#,ST141,TT14#¥130198201-199907

45460ROD ASSY, TIE, RH

main45460-19155iRT142,ST141..CSX,CXI¥6,200198212-198612

W/POWER STEERING

main45460-19165iTT14#..SED..(3FC,4F,5F)¥6,200198201-198612

main45460-19175iCT141,YT140¥9,900198201-199907

sub45470-19025¥9,900

main45460-29225iCT140..LHD..DLX¥5,400198201-198612

45466CLAMP, TIE ROD END

main45466-22010iCT14#,RT14#,ST141,TT14#,YT140¥300198201-199907

45470ROD ASSY, TIE, LH

main45460-19155iST141..3FC..CS¥6,200198212-198612

W/POWER STEERING

main45460-19165iTT14#..SED..(3FC,4F,5F)¥6,200198201-198612

main45460-19175iST141..WG..GEN¥9,900198508-198612

sub45470-19025¥9,900

main45460-29225iCT140..LHD..DLX¥5,400198201-198612

main45470-19025iCT140..RHD¥9,900198201-199907

45611ARM, STEERING KNUCKLE, RH

main45611-14030iTT141..SED..RHD¥5,100198212-198412

W/POWER STEERING

main45611-14040iST141..SED..GEN¥5,100198201-198612

main45611-14050iCT140..LHD..DLX¥5,300198201-198312

main45611-14060iCT140..RHD¥5,300198201-199907

main45611-14070iST141..CS¥5,400198304-198612

W/POWER STEERING

main45611-14090iRT142,ST141..ARL¥6,000198304-198612

45611ABOLT, KNUCKLE STOPPER

main90106-10002iRT142,ST141..SED¥190198201-198612

L=31

main90106-10032iCT14#,RT14#,ST141,TT14#,YT140¥170198201-199907

L=34

45611BBOLT, HEXAGON(FOR STEERING KNUCKLE TO SHOCK ABSORBER)

main90101-12295iCT14#,RT14#,ST141,TT14#,YT140¥320198201-199907

L=35

main90101-12379iCT14#,RT14#,ST141,TT14#,YT140¥540198201-199907

L=39

main90101-12491iCT14#,RT14#,ST141,TT14#,YT140¥210198201-199907

L=42

45611CPIN, STRAIGHT(FOR STEERING KNUCKLE TO SHOCK ABSORBER)

main90253-15016iCT14#,RT14#,ST141,TT14#,YT140¥190198201-199907

45612ARM, STEERING KNUCKLE, LH

main45612-14030iTT141..SED..RHD¥5,100198212-198412

W/POWER STEERING

main45612-14040iST141..SED..GEN¥5,100198201-198612

main45612-14050iCT140..LHD..DLX198201-198312

main45612-14060iTT140..3H,4H¥5,300198201-199907

main45612-14070iST141..CS¥5,400198304-198612

W/POWER STEERING

main45612-14090iRT142,ST141..ARL¥6,000198304-198612

45619COVER, KNUCKLE STOPPER

main45619-14020iCT14#,RT14#,ST141,TT14#,YT140¥480198201-199907

9010108265

main90101-08265¥440

9017008125

main90170-08125¥320

9017010082

main90170-10082¥160

9451100800

main94511-00800¥100

9451201200

main94512-01200¥100

9453101000

main94531-01000¥90

9538103020

main95381-03020¥90

18 parts on this diagram · 10 diagrams in section
