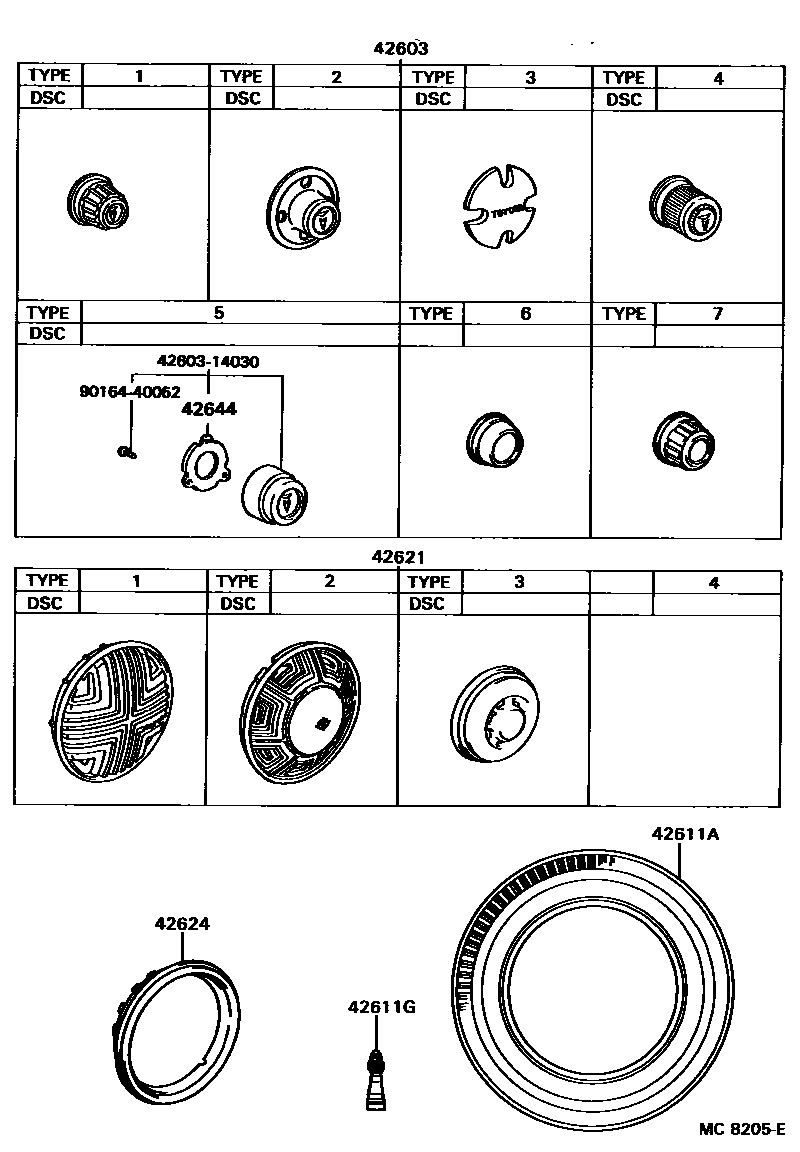

DISC WHEEL & WHEEL CAP

0001 1 0002 1

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-12070iST141..WG..GEN198201-199907

TYPE 1

main42603-12110iCT140,RT140,TT14#..SED..(DLX,GL,TAX)198201-198508

TYPE 2

main42603-12120iTT141..RHD..GL198304-198412

W/ALUMI WHEEL,TYPE 3

main42603-12130iCT140,RT140,TT14#..SED..(DLX,STD,TAX)198201-199210

TYPE 4

sub42603-27030

main42603-14030iCT140,RT140,TT14#..SED..(DLX,GL,TAX)198201-198508

TYPE 5

main42603-22100iCT141..5F199210-199907

*STE,TYPE 7

main42603-22210iCT141..5F199201-199210

*STE,TYPE 6

42611ATIRE TUBE SET OR TUBELESS TIRE

main42605-20080iCT141198601-198612

5.60-13-6,W/TUBE

main42605-20100iCT141,YT140198612-199907

165SR13,W/TUBE

main42652-14140iCT141,YT140..LHD198201-199907

165SR13

main42652-14180iCT140,RT140,TT14#..SED..(DLX,GL,TAX)198201-198508

185/70HR13

main42652-22090iCT140,RT140,ST141,TT14#..SED..(GEN,ME,PHL)198201-199907

6.45-13-4

main98021-64133iCT140,TT14#..RHD..DLX198201-198508

6.45-13-6,W/TUBE

main98511-64133iTT140..(3H,4H)..GEN;CT140,RT140,ST141,TT14#..WG..(GEN,PHL)198201-199907

6.45-13-6

main98921-64132iCT140,RT140,TT14#..SED198201-199907

6.45-13-4,W/TUBE

main98938-65130iCT140,RT140,TT14#198201-198508

165SR13,W/TUBE

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009iCT140,RT140,ST141,TT14#,YT140..GEN,ME,PHL198201-199907

42621CAP, WHEEL

main42602-20050iTT141..SED..RHD..(3FC,4F)198301-198310

TYPE 1

main42621-20200iCT140,RT140,TT14#198201-199907

TYPE 2

main42621-22010iCT141,YT140198601-199303

TYPE 3

sub42621-22011

main42621-22011iCT141,YT140199303-199907

TYPE 3

42624RING, WHEEL CAP

main42624-14025iCT140,RT140,TT14#..SED..(DLX,GL,TAX)198201-198508

42644HOLDER, WHEEL HUB ORNAMENT

main42644-14041iCT140,RT140,TT14#..SED..(DLX,GL,TAX)198201-198508

4260314030ORNAMENT SUB-ASSY, WHEEL HUB

main42603-14030

9016440052

main90164-40052

8 parts on this diagram · 2 diagrams in section
