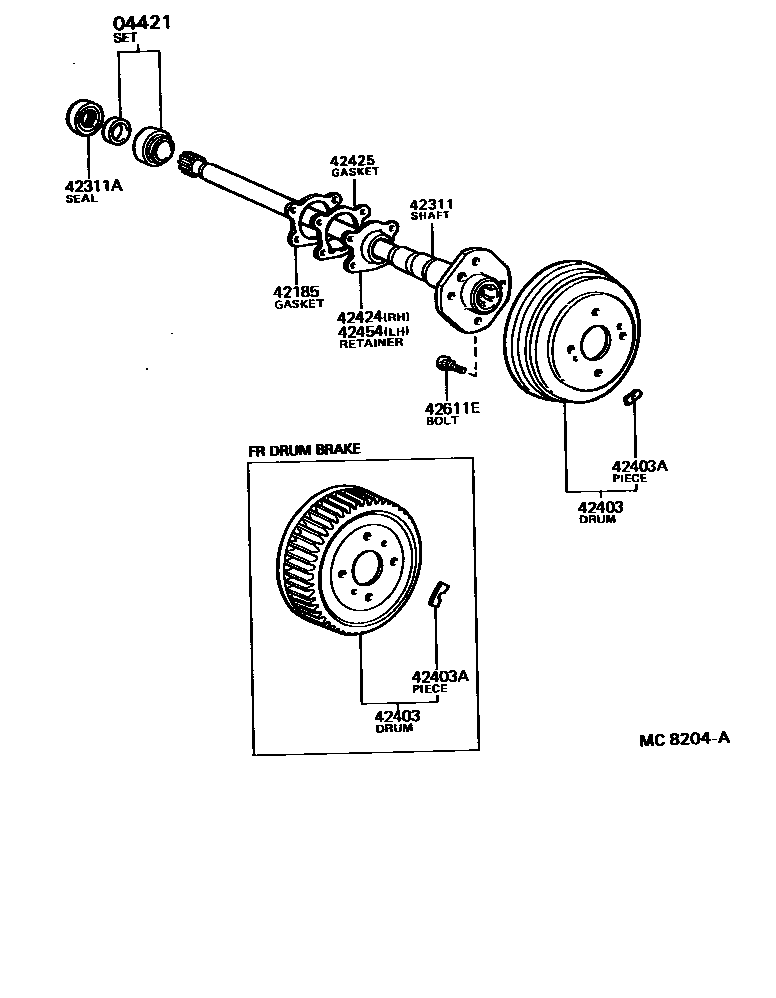

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1 0004 1

04421BEARING KIT, REAR AXLE SHAFT

main04421-30011iCT14#,RT140,ST141,TT14#,YT140..GEN,ME,PHL¥3,710198201-199907

sub04421-30012¥3,700

42185GASKET, REAR AXLE HOUSING END

main42185-14020iCT14#,RT140,ST141,TT14#,YT140..GEN,ME,PHL¥620198201-199907

main42185-22030iRT142..SED¥250198508-198612

42311SHAFT, REAR AXLE

main42301-22050iRT142..SED¥22,300198508-198612

main42311-14140iCT140,RT140,ST141,TT14#..SED..(GEN,ME,PHL)¥22,100198201-198510

main42311-14141iCT141,ST141..SED..GEN¥20,000198510-199907

main42311-22100iCT140,RT140,ST141,TT14#..WG..(GEN,PHL)¥21,100198201-199907

main42311-22110iYT140¥20,000198612-199907

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90311-38009iRT142..SED¥290198508-198612

main90311-52059iCT14#,RT140,ST141,TT14#,YT140..GEN,ME,PHL¥320198201-199907

42403DRUM SUB-ASSY, REAR BRAKE

main42431-12060iCT140,RT140,TT14#..DLX,GL,STD¥13,100198201-198508

FR DISC BRAKE

sub42431-14061¥11,900

main42431-12060iST141..CS,DLX,S;RT142..SED..CSI¥13,100198304-198510

sub42431-14061¥11,900

main42431-14061iST141..CS,DLX,S¥11,900198510-199907

main42431-20060iCT140..RHD;CT140..TAX¥13,600198301-198312

FR TAXI DISC BRAKE

sub42431-20031¥13,600

main42431-20060iCT140..RHD;CT140,TT140..SED..(3H,4H,5F)..(STD,TAX)¥13,600198201-198312

FR DRUM BRAKE

sub42431-20031¥13,600

main42431-20060iCT141,YT140¥13,600198601-199907

sub42431-20031¥13,600

42403APIECE, BALANCE (FOR REAR BRAKE DRUM)

main90937-01045iCT141,YT140198601-199907

10G,10G

main90937-01045iCT140..RHD;CT140..TAX198301-198312

10G,10G,FR TAXI DISC BRAKE

main90937-01045iCT140..RHD;CT140,TT140..SED..(3H,4H,5F)..(STD,TAX)198201-198312

10G,10G,FR DRUM BRAKE

main90937-01046iCT141,YT140198601-199907

25G,25G

main90937-01046iCT140..RHD;CT140..TAX198301-198312

25G,25G,FR TAXI DISC BRAKE

main90937-01046iCT140..RHD;CT140,TT140..SED..(3H,4H,5F)..(STD,TAX)198201-198312

25G,25G,FR DRUM BRAKE

main90937-01047iCT141,YT140198601-199907

40G,40G

main90937-01047iCT140..RHD;CT140..TAX198301-198312

40G,40G,FR TAXI DISC BRAKE

main90937-01047iCT140..RHD;CT140,TT140..SED..(3H,4H,5F)..(STD,TAX)198201-198312

40G,40G,FR DRUM BRAKE

main90937-01117iRT142..WG¥130198304-198510

10G,10G

main90937-01117iCT140,RT140,TT14#..DLX,GL,STD¥130198201-198508

10G,10G,FR DISC BRAKE

main90937-01118iST141..CS,DLX,S;RT142..SED..CSI¥130198304-198510

20G,20G

main90937-01118iCT140,RT140,TT14#..DLX,GL,STD¥130198201-198508

20G,20G,FR DISC BRAKE

main90937-01119iST141..CS,DLX,S;RT142..SED..CSI¥130198304-198510

30G,30G

main90937-01119iCT140,RT140,TT14#..DLX,GL,STD¥130198201-198508

30G,30G,FR DISC BRAKE

main90937-01195iCT140,RT140,TT14#..DLX,GL,STD¥170198201-198703

40G,40G,FR DISC BRAKE

main90937-01195iST141..CS,DLX,S;RT142..SED..CSI¥170198304-198510

40G,40G

main90937-01196iRT142..WG¥190198304-198510

50G,50G

main90937-01196iCT140,RT140,TT14#..DLX,GL,STD¥190198201-198703

50G,50G,FR DISC BRAKE

main90937-01197iRT142..WG¥270198304-198510

60G,60G

main90937-01197iCT140,RT140,TT14#..DLX,GL,STD¥270198201-198703

60G,60G,FR DISC BRAKE

main90937-01217iCT141,YT140198601-199907

55G,55G

main90937-01217iCT140..RHD;CT140,TT140..SED..(3H,4H,5F)..(STD,TAX)198201-198312

55G,55G,FR DRUM BRAKE

main90937-01217iCT140..RHD;CT140..TAX198301-198312

55G,55G,FR TAXI DISC BRAKE

main90937-01287iST141..CS,DLX,S¥250198510-199907

10G,10G

main90937-01288iST141..CS,DLX,S¥330198510-199907

20G,20G

main90937-01289iST141..CS,DLX,S¥430198510-199907

30G,30G

42424RETAINER, REAR AXLE BEARING, OUTER, RH

main42424-14020iCT14#,RT140,ST141,TT14#,YT140..GEN,ME,PHL¥620198201-199907

42425GASKET, REAR AXLE BEARING RETAINER

main42425-14020iCT14#,RT140,ST141,TT14#,YT140..GEN,ME,PHL¥230198201-199907

42454RETAINER, REAR AXLE BEARING, OUTER, LH

main42454-14010iCT14#,RT140,ST141,TT14#,YT140..GEN,ME,PHL¥620198201-199907

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02035iCT140,RT140,TT14#¥240198201-198307

sub90942-02047¥230

main90942-02047iRT142..SED¥230198307-199907

10 parts on this diagram · 4 diagrams in section
