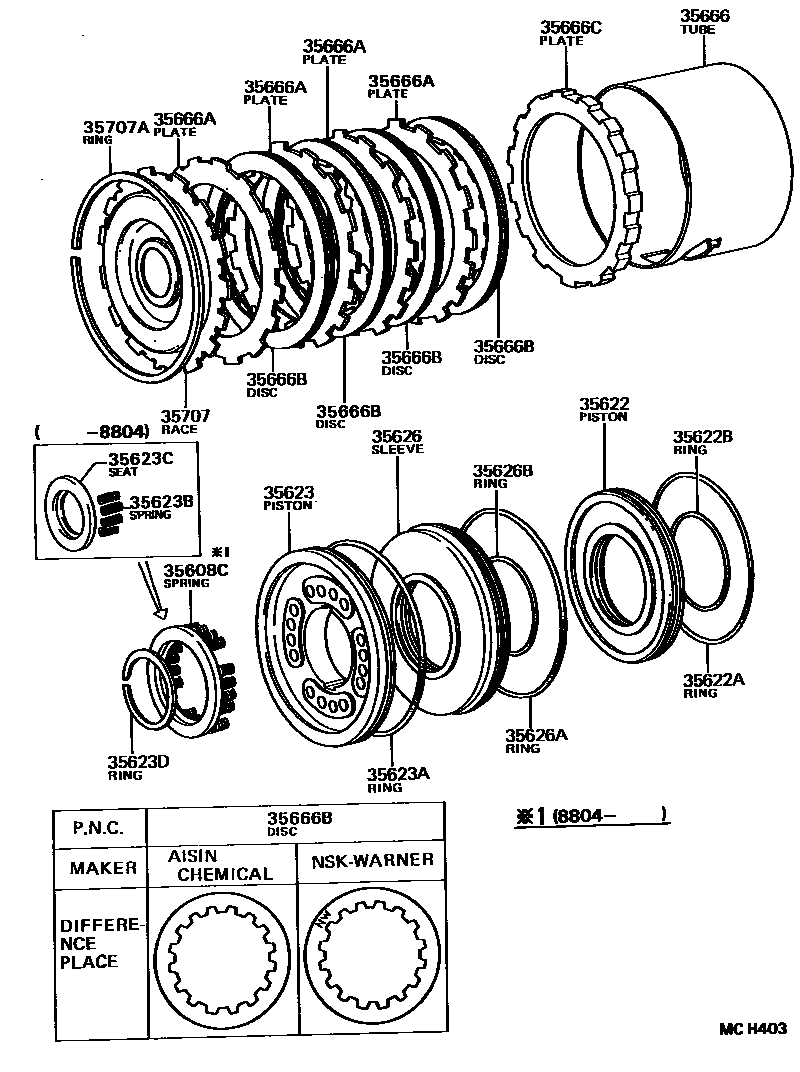

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

35608CSPRING SUB-ASSY, NO.3 BRAKE PISTON RETURN

35622PISTON, BRAKE, NO.2

main35622-22010iRT142,ST141..4FC198201-199907

35622ARING (FOR BRAKE PISTON OUTER)

main90301-99193iTT141..3FC198201-199907

35622BRING (FOR BRAKE PISTON INNER)

main90301-57188iTT141..3FC198201-199907

35623PISTON, BRAKE, NO.3

main35623-22010iTT141..3FC198201-199907

35623ARING, O (FOR BRAKE PISTON NO.3 )

main90301-99192iTT141..3FC198201-199907

35623BSPRING (FOR BRAKE PISTON RETURN)

main90501-10671iTT141..3FC198201-198804

35623CSEAT, BRAKE RETURN SPRING

main35627-22010iTT141..3FC198201-198804

35623DRING, SHAFT SNAP (FOR BRAKE)

main90520-52262iTT141..3FC198201-199907

35626SLEEVE, BRAKE REACTION

main35626-22010iTT141..3FC198201-199907

35626ARING (FOR BRAKE REACTION SLEEVE OUTER)

main90301-99200iTT141..3FC198201-199907

sub90301-99109

35626BRING (FOR BRAKE REACTION SLEEVE INNER)

main90301-68191iRT142,ST141..4FC198201-199907

sub90301-67005

35666TUBE, BRAKE APPLY

main35666-22010iTT141..3FC198201-198508

sub35666-26010

main35666-26010iST141..4FC198304-199907

main35666-30010iRT142..4FC198408-198612

35666APLATE, CLUTCH (FOR BRAKE)

main35634-22050iTT141..3FC198201-198307

sub35634-22080

main35634-22080iTT141..3FC198307-198703

35666BDISC, CLUTCH (FOR BRAKE)

main35633-22030iTT141..3FC198201-198307

NSK-WARNER

sub35633-30030

main35633-22050iTT141..3FC198201-198307

AISIN CHEMICAL

sub35633-30030

main35633-30020iST141..4FC198304-198307

sub35633-30030

main35633-30030iTT141..3FC198307-198708

sub35633-30050

35666CPLATE, CLUTCH PRESSURE (FOR BRAKE)

main35639-22010iTT141..3FC198201-199907

35707RACE SUB-ASSY, 1 WAY CLUTCH, INNER

main35707-30010iTT141..3FC198201-198508

sub35707-30020

main35707-30020iRT142..4FC198408-199907

35707ARING, HOLE SNAP (FOR 1 WAY CLUTCH INNER RACE)

main90521-99140iTT141..3FC198201-199907

18 parts on this diagram · 1 diagram in section
