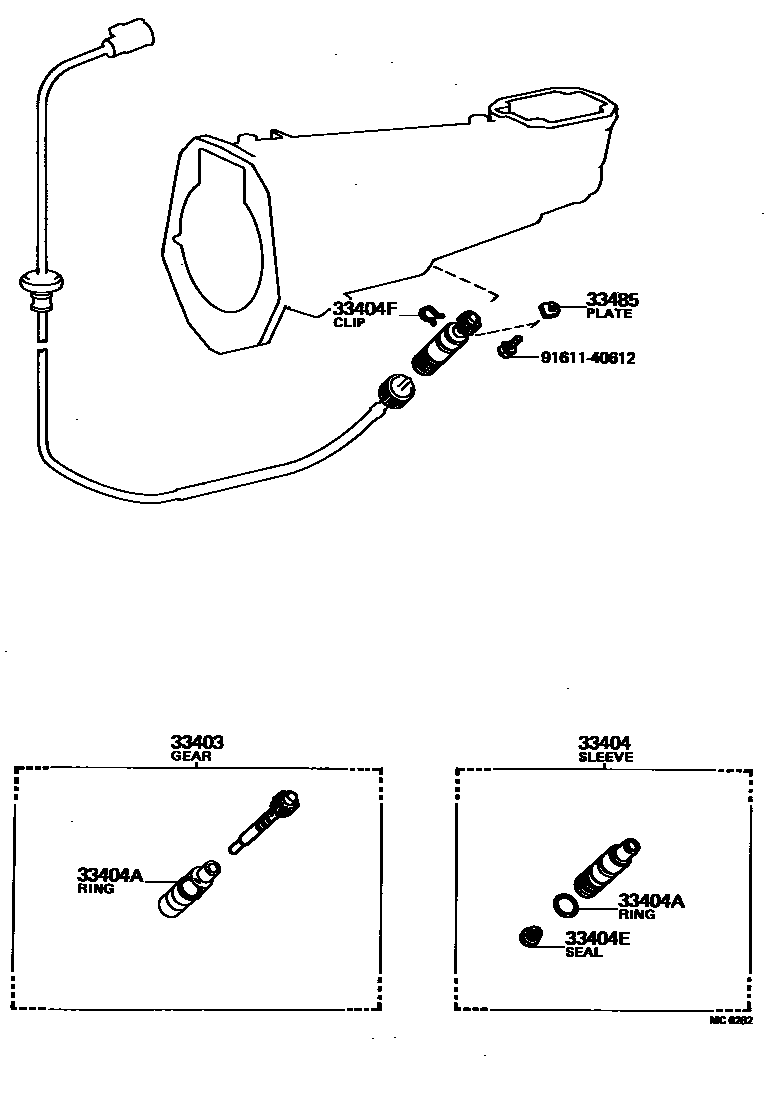

SPEEDOMETER DRIVEN GEAR (MTM)
33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)
N=20,MARK 20:6,*AXC=T312,N=20
*AXC=T292,N=21
N=21
N=22,MARK 22:6,*AXC=T282,N=22
N=22,MARK 22:6,N=22
N=35,MARK 35:10,*AXC=T292,N=35
N=35,MARK 35:10
N=32,MARK 32:11
N=33,MARK 33:11
N=32,MARK 32:10,N=32
N=33,MARK 33:10,N=33
N=33,MARK 33:10,*AXC=T312,N=33
N=34,MARK 34:10,N=34
N=22,MARK 22:6,N=22
N=19,MARK 19:6,*AXC=T302,N=19
N=19,MARK 19:6,N=19
N=21,MARK 21:6,*AXC=T292,N=21
N=20,MARK 20:6,N=20
N=20,MARK 20:6,*AXC=T312,N=20
33404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)
33404ESEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)
33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)
33485PLATE, SPEEDOMETER SLEEVE LOCK (MTM)
9161140612
main91611-40612
7 parts on this diagram · 2 diagrams in section
