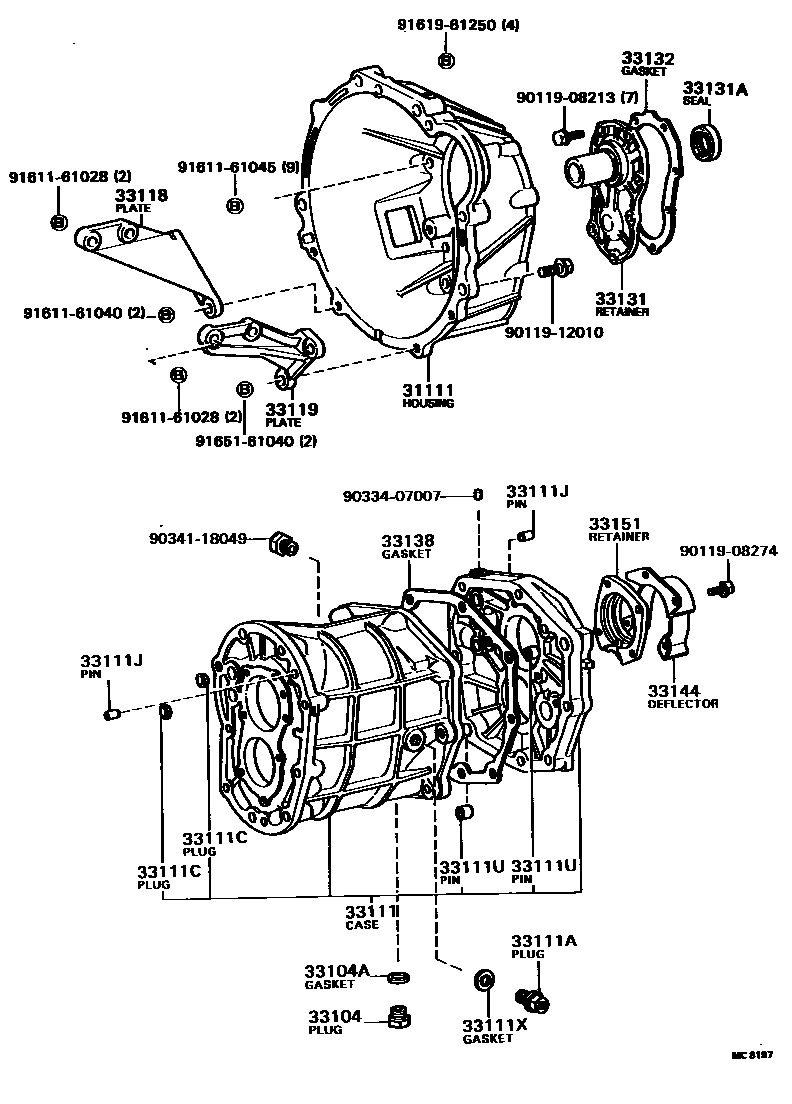

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0009 1 0010 1 0011 1

31111HOUSING, CLUTCH

main31111-14070iTT14#..4F,5F198201-198508

main31111-20070iRT140198206-198312

main31111-20160iTT140..3H198201-198310

main31111-20171iRT142..5F198408-198612

main31111-20200iCT140198201-198312

main31111-20210iTT140..4H198201-198310

main31111-22120iST141..5F..GEN198508-199907

main31111-30190iYT140198612-199907

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iCT141,YT140199408-199907

main90341-18057iST141..5F..GEN198201-199408

main90341-18081iTT14#..4F,5F198201-198508

33104AGASKET, DRAIN PLUG(MTM)

main90430-18007iCT140,RT140,TT14#..MTM198201-198408

sub90430-18008

main90430-18008iST141..5F..GEN198408-199907

33111CASE, MANUAL TRANSMISSION

main33101-14040iTT14#..4F,5F198201-198508

main33101-20011iRT140198206-198312

sub33101-30021

main33101-22021iTT140..4H198201-198612

sub33101-22031

main33101-22030iST141..5F..GEN198508-198808

sub33101-22031

main33101-22031iCT141,YT140198808-199110

sub33101-22032

main33101-30021iCT140198201-198312

main33101-30031iTT140..3H198201-198308

sub33101-30050

sub33124-30061

main33101-30050iTT140..3H198308-198310

sub33101-30061

sub33131-30070

sub33132-30060

sub90363-32016

sub90520-76002

main33101-30070iCT141,YT140199110-199411

main33101-30071iCT141,YT140199411-199907

33111APLUG, MANUAL TRANSMISSION CASE

main90341-18002iTT140..4H198201-199408

main90341-18006iCT140,RT140,TT14#..3H,4F,5F198209-199907

33111CPLUG(FOR TRANSMISSION CASE)

main90331-14004iST141..5F..GEN198201-199907

OD=14

main90331-20044iCT140,RT140198201-198312

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-08030iTT14#..4F,5F198201-198508

L=16,OD=8

sub90250-08046

main90250-12002iTT140..3H,4H198201-198310

L=16,OD=12,L=16

main90250-12002iST141..5F..GEN198408-199907

L=16,OD=12

main90250-12146iTT140..4H198201-198310

L=17,OD=12,L=17

main90250-12195iCT140,RT140198201-198312

OD=12,L=39

main90334-06017iCT140,RT140198201-198312

OD=6,L=11

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-13017iCT140,RT140198201-198312

L=12,OD=13

main90253-15001iTT140..3H198201-198310

L=14,OD=15

33111XGASKET, TRANSMISSION CASE PLUG

main90430-18007iCT140,RT140,TT14#..MTM198201-198408

sub90430-18008

main90430-18008iST141..5F..GEN198408-199907

33118PLATE, STIFFENER, RH(MTM)

main33118-14010iTT14#..MTM198201-198508

main33118-14030iCT140,ST141..MTM198201-198410

main33118-14031iST141..MTM198410-198508

sub33118-14032

sub91611-61035

main33118-14032iCT141,ST141..MTM198508-198605

sub33118-14033

main33118-14033iCT141,ST141..MTM198605-199907

main33118-20030iRT140198206-198312

main33118-22030iRT142..5F198408-198612

main33118-28010iYT140198612-199907

33119PLATE, STIFFENER, LH(MTM)

main33119-14040iTT14#..MTM198201-198508

main33119-14050iCT14#,ST141..MTM198201-199907

main33119-20030iRT140198206-198312

main33119-22021iRT142..5F198408-198612

sub33119-22022

main33119-28010iYT140198612-199907

33131RETAINER, BEARING, FRONT(MTM)

main33131-14020iTT14#..4F,5F198201-198508

main33131-22020iCT141,RT142,YT140..MTM198201-199110

sub33131-22021

main33131-30050iTT140..3H198201-198310

main33131-30080iCT141,YT140199110-199907

main33131-31010iCT140,RT140198201-198312

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-25003iTT14#..4F198201-198508

main90311-30014iCT141,YT140199110-199907

main90311-30115iST141..5F..GEN198201-199110

33132GASKET, FRONT BEARING RETAINER(MTM)

main33132-14020iTT14#..4F,5F198201-198508

main33132-22010iST141..5F..GEN198201-198808

main33132-30050iTT140..3H198201-198310

33138GASKET, INTERMEDIATE PLATE

main33138-30010iTT140..3H198201-198310

main33142-20020iCT140,RT140198201-198312

main33142-22010iST141..5F..GEN198201-198808

33144DEFLECTOR, EXTENSION HOUSING OIL(MTM)

main33144-30022iTT140..3H198201-198310

sub33144-43010

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

main33107-22010iTT140..4H198201-199110

main33107-30020iCT141,YT140199110-199907

main33151-20010iCT140,RT140198201-198312

main33151-30040iTT140..3H198201-198310

9011908213

main90119-08213

9011908274

main90119-08274

9011912010

main90119-12010

9033407007

main90334-07007

9034118049

main90341-18049

9161161028

main91611-61028

9161161040

main91611-61040

9161161045

main91611-61045

9161961250

main91619-61250

9165161040

main91651-61040

27 parts on this diagram · 10 diagrams in section
