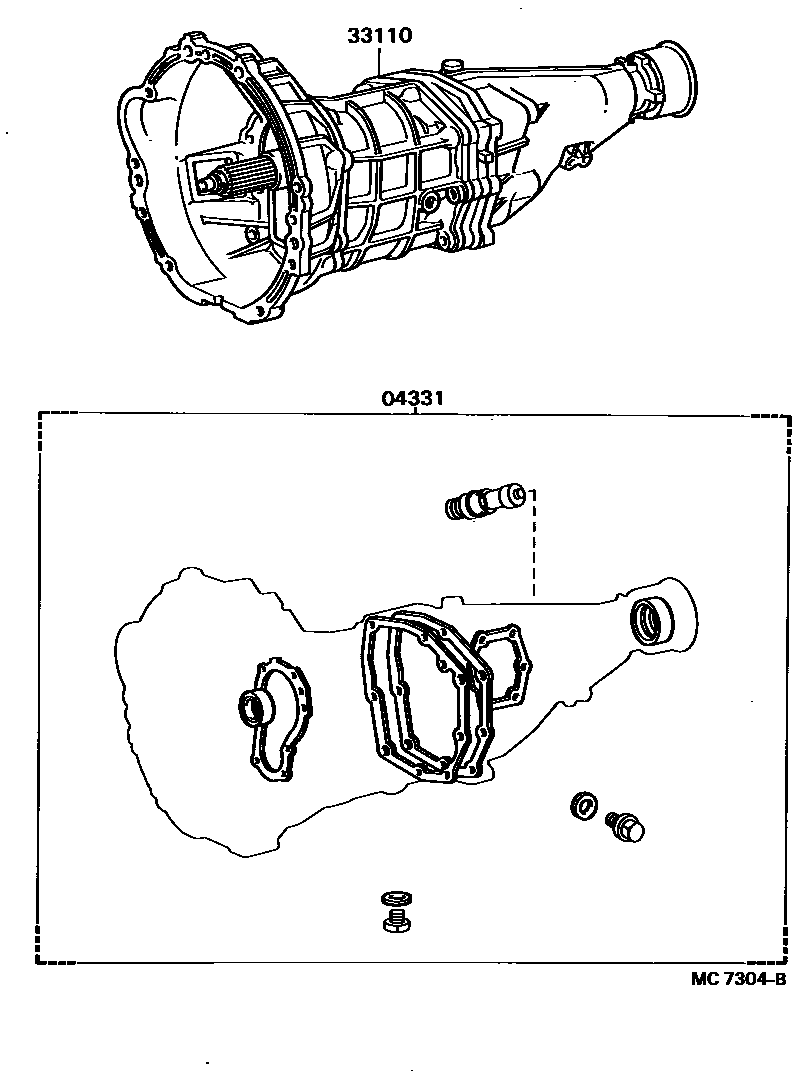

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

0001 1 0002 1 0003 1 0004 1 0005 1

04331GASKET KIT, MANUAL TRANSMISSION OVERHAUL

main04331-14030iTT14#..4F,5F198201-198508

main04331-20040iTT140..3H198201-198310

sub04331-20041

main04331-20050iTT140..4H198201-199907

main04331-22030iCT140,RT140198201-198312

33110TRANSMISSION ASSY, MANUAL

main33030-14540iTT14#..4F198201-198304

sub33030-14541

main33030-14541iTT14#..4F198304-198508

main33030-14550iTT14#..5F198201-198304

sub33030-14551

main33030-14551iTT14#..5F198304-198508

main33030-20852iRT140..DLX198206-198303

*AXC=T302,SMG R=19:6

main33030-20862iRT140..STD198206-198303

main33030-20862iRT140198303-198312

*AXC=T292,T=E282,N=21,22

main33030-20890iTT140..3H198201-198310

*AXC=T312,SMG R=20:6

main33030-2B010iTT140..3H198201-198310

*AXC=T292,SMG R=21:6

main33030-2B030iCT140198201-198312

main33030-2B080iTT140..4H198201-198310

*AXC=T312,SMG R=33:10

main33030-2B090iTT140..4H..GEN198201-198310

*AXC=T292,SMG R=35:10

main33030-2B110iRT142..5F198408-198612

main33030-2B130iCT141..5F198601-199110

sub33030-2B230

main33030-2B141iST141..5F..GEN198508-198612

main33030-2B150iYT140198612-199110

sub33030-2B240

main33030-2B160iCT141..4F198612-199110

sub33030-2B250

main33030-2B230iCT141..5F199110-199907

main33030-2B240iYT140199110-199907

main33030-2B250iCT141..4F199110-199907

2 parts on this diagram · 5 diagrams in section
