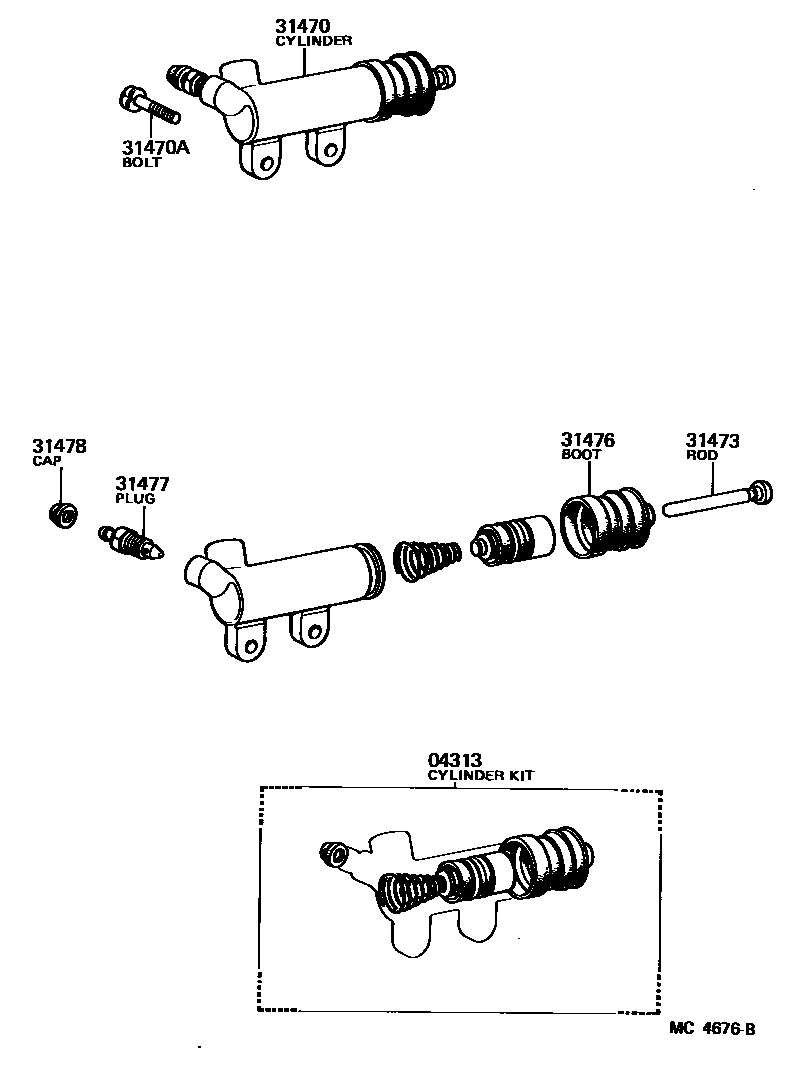

CLUTCH RELEASE CYLINDER

0001 1 0003 1 0004 1

04313CYLINDER KIT, CLUTCH RELEASE

main04313-12030iYT140198805-199103

main04313-17010iYT140199103-199603

main04313-22020iST141..5F..GEN198201-199210

sub04313-12030

main04313-22030iYT140199110-199907

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-12080iCT141198601-199210

main31470-14021iTT140..3H,4H198201-198805

sub31470-20190

main31470-14040iCT140198201-198312

main31470-20141iRT140198206-198312

main31470-20151iTT14#..4F,5F198201-198508

main31470-20190iYT140198805-199103

sub31470-20191

main31470-20191iYT140199103-199907

main31470-22170iCT141199210-199907

main31470-30220iST141..5F..GEN198508-198602

sub31470-30221

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60825iCT14#,RT14#,ST141,TT14#,YT140..MTM198201-199907

*8-1.25PX25-25

sub91611-B0825

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-20031iCT141198201-199603

main31473-22010iCT141198201-199210

main31473-22030iCT141199110-199907

main31473-30051iRT140198206-198312

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iCT140,RT14#,TT14#..MTM198201-199907

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iCT140,RT14#,TT14#..MTM198201-199907

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iCT14#,RT14#,ST141,TT14#,YT140..MTM198201-199907

7 parts on this diagram · 3 diagrams in section
