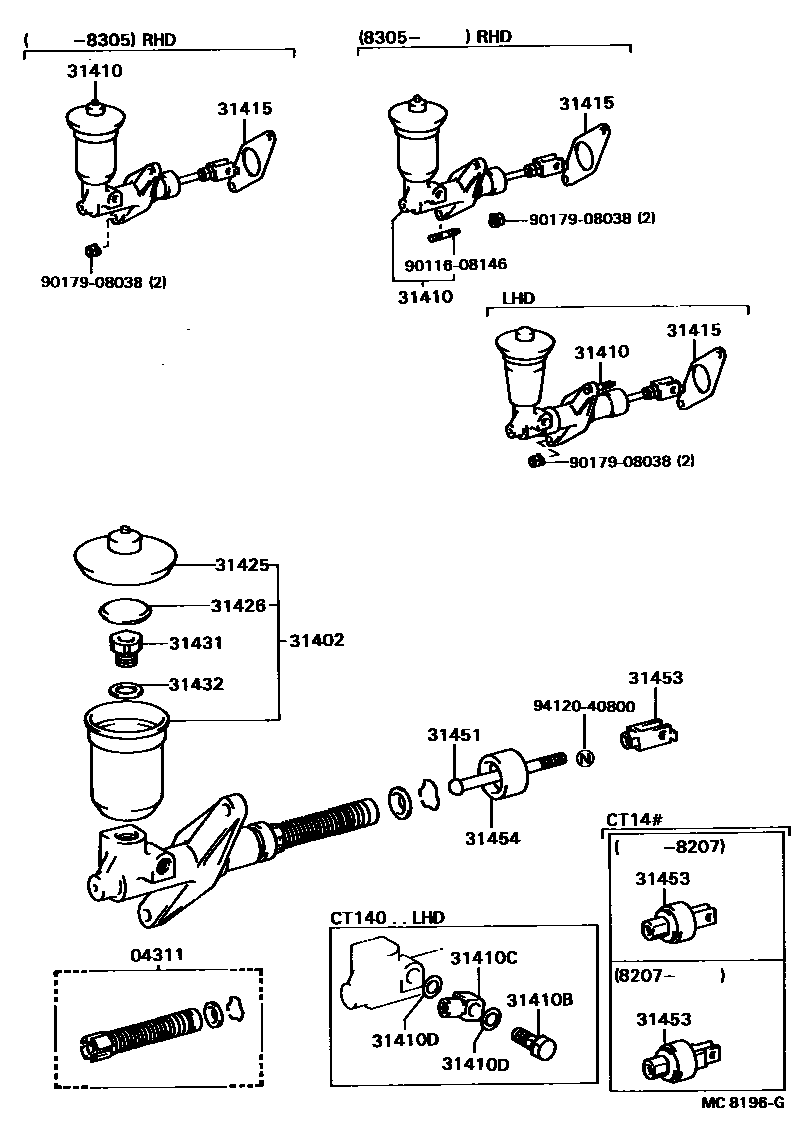

CLUTCH MASTER CYLINDER

0001 1 0002 1

04311CYLINDER KIT, CLUTCH MASTER

main04311-12020iRT140,TT14#..MTM198201-198512

sub04311-12021

main04311-14011iRT142,ST141..MTM198304-198612

sub04311-14012

main04311-20080iYT140198908-199108

sub04311-30110

main04311-22020iYT140198612-198704

sub04311-22021

main04311-22021iYT140198704-198908

sub04311-22022

main04311-26040iCT141198612-198704

sub04311-26041

main04311-26041iCT141198704-199907

main04311-30080iCT140198201-198612

sub04311-14020

main04311-30110iYT140199108-199505

sub04311-30111

main04311-30111iYT140199505-199907

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-30030iST141..MTM198201-198908

main31402-35030iCT141..4F198908-199907

main47202-12050iRT142..5F198304-198612

31410CYLINDER ASSY, CLUTCH MASTER

main31410-12162iYT140..LHD198710-198908

sub31410-20421

main31410-12163iYT140..LHD198908-199907

sub31410-20324

main31410-14120iTT14#..RHD..MTM198201-198305

sub31410-14121

main31410-14131iRT140,ST141,TT14#..LHD..MTM198201-198708

sub31410-14132

main31410-14140iST141..MTM..ARL198305-198612

sub31410-14240

main31410-14150iCT140..LHD198201-198207

sub31410-14H00

main31410-14151iCT140..LHD198207-198312

sub31410-14152

main31410-14160iTT14#..RHD..(4F,5F)198305-198512

sub31410-14161

main31410-14180iCT140..RHD198305-198704

sub31410-14181

main31410-14181iCT141..5F198704-198710

sub31410-14182

main31410-14182iCT141..5F198710-198811

sub31410-14183

main31410-14183iCT141..5F198811-199907

main31410-20200iTT140..3H198301-198305

sub31410-20460

main31410-20201iTT140..3H198305-198310

sub31410-20202

main31410-20302iYT140..RHD198801-198809

sub31410-20303

main31410-20303iYT140..RHD198809-198908

main31410-20304iYT140..RHD198908-199907

main31410-20310iYT140198612-198704

sub31410-20311

main31410-20311iYT140198704-198710

sub31410-20312

main31410-20320iCT141..4F198612-198704

sub31410-20321

main31410-20321iCT141..4F198704-198710

sub31410-20322

main31410-20322iCT141..4F198710-198811

sub31410-20323

main31410-20323iCT141..4F198811-198908

sub31410-20441

main31410-20324iCT141..4F198908-199907

main31410-22070iST141..MTM198304-198305

sub31410-22071

main31410-24011iCT140..RHD198201-198209

sub31410-24H00

main31410-24012iCT140..RHD198209-198305

sub31410-22140

31410BBOLT, UNION(FOR CLUTCH MAS CYLINDER TO FLEXIBLE HOSE TUBE)

main90401-10046iCT141,YT140..LHD198908-199907

main90401-10047iCT140..LHD198201-198312

31410CUNION(FOR CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE TUBE)

main90405-10165iCT140..LHD198201-199907

31410DGASKET(FOR CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE TUBE)

main90430-10074iCT140..LHD198201-199907

31415GASKET, CLUTCH MASTER CYLINDER

main31415-10010iCT141,YT140198701-199907

main31415-30030iCT14#,RT14#,ST141,TT14#..MTM198201-198701

31425CAP, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main47230-20040iCT14#,RT14#,ST141,TT14#,YT140..MTM198201-199907

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-30011iCT14#,RT14#,ST141,TT14#,YT140..MTM198201-199907

31431BOLT, CLUTCH MASTER CYLINDER RESERVOIR SET

main47231-30010iCT14#,RT14#,ST141,TT14#,YT140..MTM198201-198908

31432WASHER, CLUTCH RESERVOIR SET BOLT

main47232-30010iCT14#,RT14#,ST141,TT14#,YT140..MTM198201-198908

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-20050iRT14#,ST141,TT14#..MTM198201-198612

main31451-22060iYT140198612-198908

main31451-22070iCT141..4F198612-198908

main31451-30060iCT140198201-199907

main31451-35070iYT140198908-199907

main31451-35080iCT141..4F198908-199907

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-30040iCT140198201-198209

main31404-30041iCT140198209-198706

main31404-30050iCT141..5F198706-198904

sub31404-30051

main31404-30051iCT141..5F198904-198908

main31404-35021iCT141..4F198908-199907

sub31404-35030

main31453-22010iRT14#,ST141,TT14#..MTM198201-198611

sub31453-35010

main31453-35010iST141,YT140..MTM198611-198908

31454BOOT, CLUTCH MASTER CYLINDER

main31454-14010iRT14#,ST141,TT14#,YT140..MTM198201-198908

main31454-24010iCT140198201-199907

9011608146

main90116-08146

9017908038

main90179-08038

9412040800

main94120-40800

17 parts on this diagram · 2 diagrams in section
