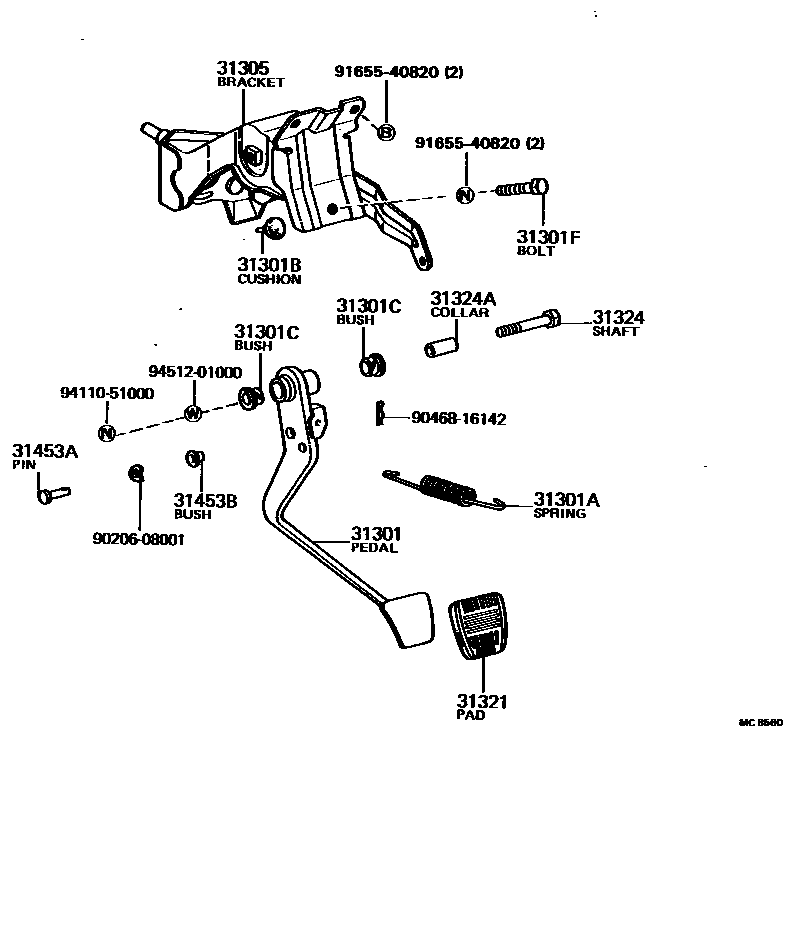

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1 0004 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-14050iCT141,YT140..RHD198201-199907

main31301-14060iCT14#,RT140,ST141,TT14#,YT140..LHD..MTM198201-199907

main31301-20160iTT140..3H198201-198310

31301ASPRING(FOR CLUTCH PEDAL)

main90506-14002iCT14#,RT14#,ST141,TT14#,YT140..MTM198201-199907

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06008iCT14#,RT14#,ST141,TT14#,YT140..MTM198201-199907

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iCT141,YT140198601-199907

main90386-13192iCT140,RT14#,ST141,TT14#..MTM198201-199907

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iCT14#,RT14#,ST141,TT14#,YT140..MTM198201-199907

31305BRACKET SUB-ASSY, CLUTCH PEDAL

main55107-14050iCT14#,RT142,ST141,TT14#,YT140..RHD..MTM198305-199907

main55107-14080iCT14#,RT140,ST141,TT14#,YT140..LHD..MTM198201-199907

main55107-24010iCT140,ST141,TT14#..RHD..MTM198201-198305

31321PAD, CLUTCH PEDAL

main31321-14010iCT140,RT140,TT14#..MTM198201-198208

main31321-14020iCT14#,RT14#,ST141,TT14#,YT140..MTM198208-199907

31324SHAFT, CLUTCH PEDAL

main90101-10039iCT14#,RT14#,ST141,TT14#,YT140..MTM198201-199907

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iCT14#,RT140,ST141,TT14#,YT140..LHD..MTM198201-199907

main90387-10021iCT14#,RT142,ST141,TT14#,YT140..RHD..MTM198201-199907

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90240-08006iRT140,TT14#..MTM198201-198612

L=23.5

main90240-08027iCT140198201-198207

main90240-08058iCT141,YT140198612-199907

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iCT14#,RT142,ST141,TT14#,YT140..RHD..MTM198201-199907

main90386-08010iCT14#,RT140,ST141,TT14#,YT140..LHD..MTM198201-199907

9020608001

main90206-08001

9046816142

main90468-16142

9165540820

main91655-40820

9411051000

main94110-51000

9451201000

main94512-01000

16 parts on this diagram · 4 diagrams in section
