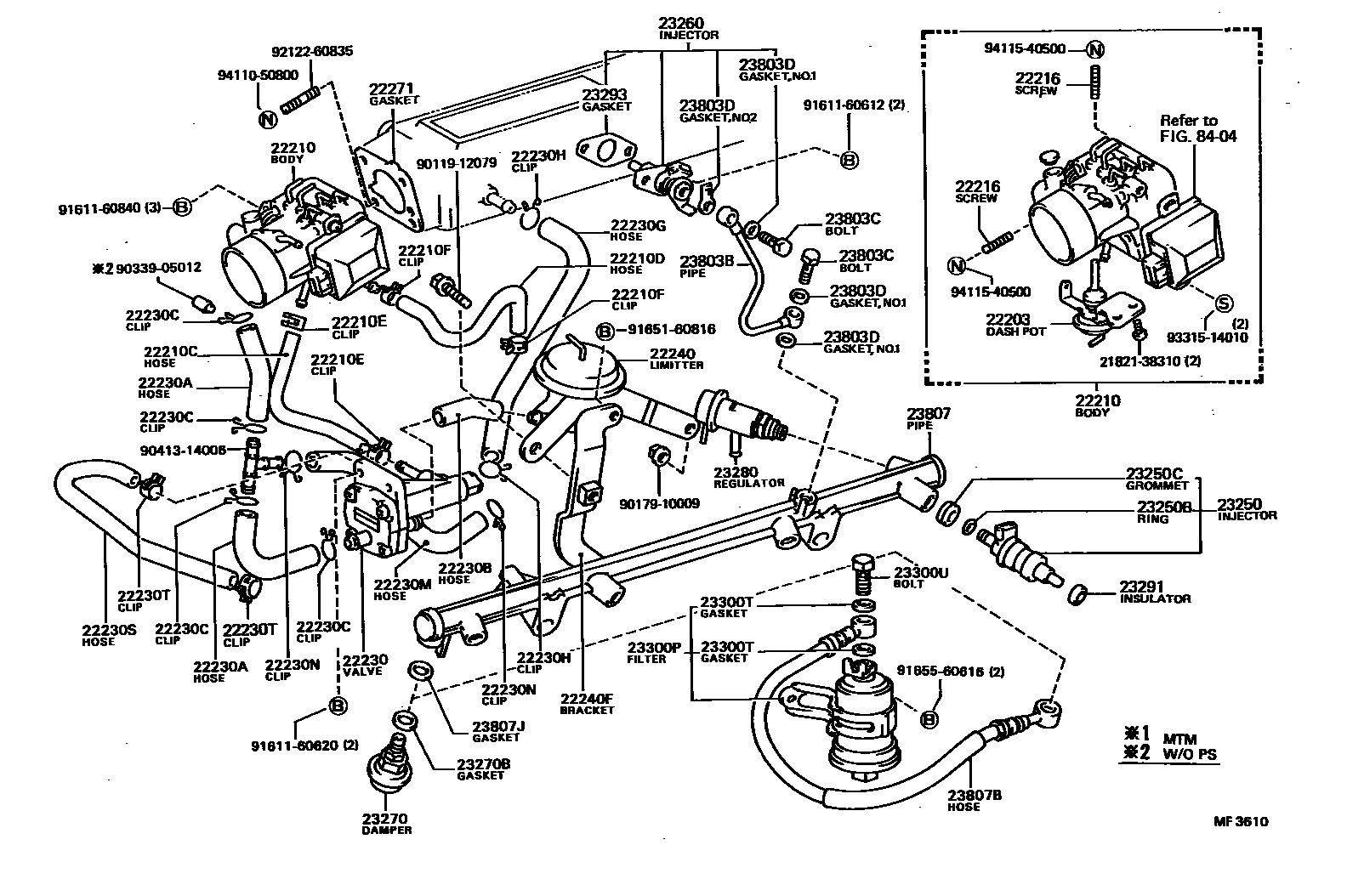

FUEL INJECTION SYSTEM
22203DASH POT SUB-ASSY(FOR THROTTLE BODY)
22210BODY ASSY, THROTTLE
22210CHOSE, WATER BY-PASS, NO.1
22210DHOSE, WATER BY-PASS, NO.2
22210ECLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1)
sub96135-51300
22210FCLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2)
sub96135-51300
22216SCREW, DASH POT ADJUSTING
22230VALVE ASSY, AUXILIARY AIR
22230AHOSE, AUXILIARY AIR VALVE, NO.1
THROTTLE BODY SIDE
AUXILIARY AIR VALVE SIDE
22230BHOSE, AUXILIARY AIR VALVE, NO.2
22230CCLIP, AUXILIARY AIR VALVE HOSE, NO.1
22230GHOSE, AUXILIARY AIR VALVE, NO.3
22230HCLIP, AUXILIARY AIR VALVE HOSE, NO.3
22230MHOSE, AUXILIARY AIR VALVE, NO.4
22230NCLIP, AUXILIARY AIR VALVE, NO.4
22230SHOSE, WATER BY-PASS(FOR AUXILIARY AIR VALVE)
22230TCLAMP OR CLIP, HOSE(FOR WATER BY-PASS)
sub96135-51300
22240LIMITER ASSY, VACUUM
22240FBRACKET, VACUUM LIMITER
22271GASKET, THROTTLE BODY
sub22271-35011
23250INJECTOR ASSY, FUEL
sub23209-43010
23250BRING, O(FOR FUEL INJECTOR)
23250CGROMMET(FOR FUEL INJECTOR)
23260INJECTOR ASSY, COLD START FUEL
sub23260-39056
23270BGASKET(FOR PULSATION DAMPER HOSE)
23291INSULATOR, INJECTOR VIBRATION
23293GASKET, COLD START INJECTOR
sub23293-35020
23300PFILTER, FUEL(FOR EFI)
23300TGASKET(FOR FUEL FILTER)
23300UBOLT, UNION(FOR FUEL FILTER)
23803BPIPE SUB-ASSY, FUEL, NO.3
23803CGASKET(NOZZLE LEKAGE PIPE NO.3)
23803DBOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
NO.1
NO.2
23807PIPE SUB-ASSY, FUEL DELIVERY
sub23807-35011
23807BHOSE, FUEL DELIVERY PIPE
23807JGASKET, PIPE FUEL DELIVARY INLET
8404
2182138310SCREW, 2ND THROTTLE VALVE SET
main21821-38310
9011912079
main90119-12079
9017910009
main90179-10009
9033905012
main90339-05012
9041314006
main90413-14006
9161160612
main91611-60612
9161160620
main91611-60620
9161160840
main91611-60840
9165160816
main91651-60816
9165560616
main91655-60616
9212260835
main92122-60835
9331514010
main93315-14010
9411050800
main94110-50800
9411540500
main94115-40500
53 parts on this diagram · 4 diagrams in section
